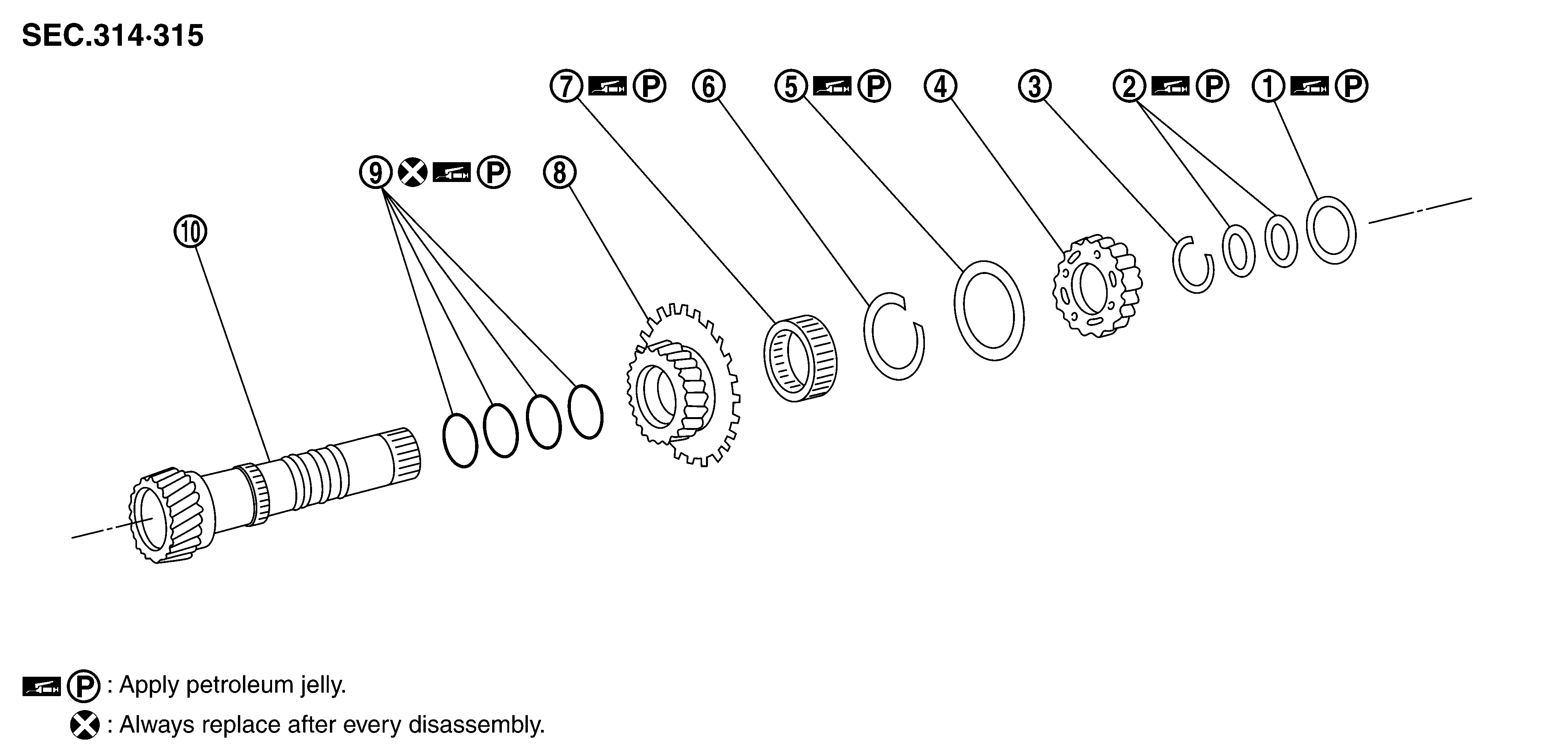

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Needle bearing
|
2.
|
Bearing races
|
3.
|
Snap ring
|
|
4.
|
High and low reverse clutch hub
|
5.
|
Needle bearing
|
6.
|
Snap ring
|
|
7.
|
1st one-way clutch
|
8.
|
Rear sun gear
|
9.
|
Seal rings
|
|
10.
|
Mid sun gear
|
