Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

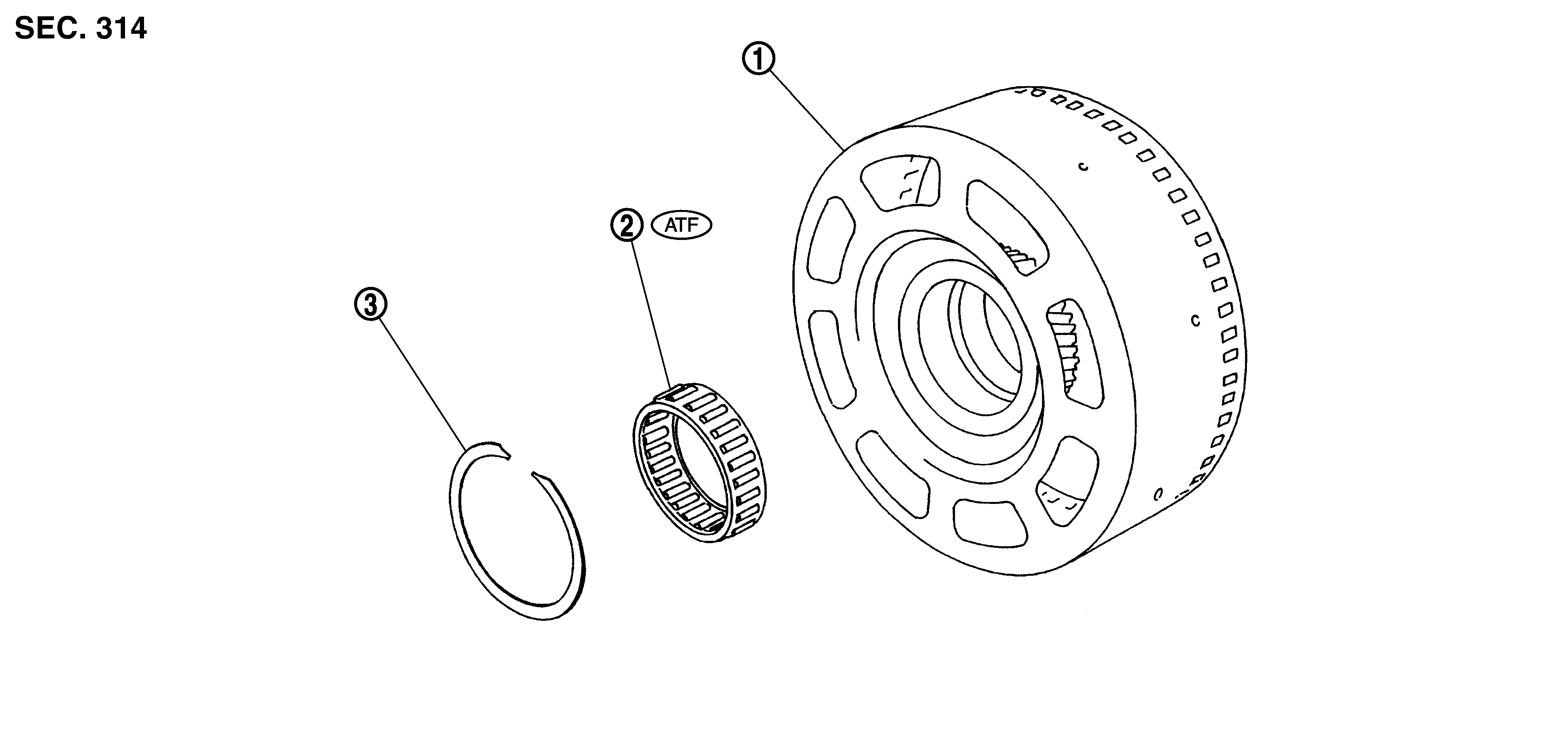

GNSSCIA8368E-368Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front sun gear

2.

3rd one-way clutch

3.

Snap ring

Refer to Components for symbols in the figure.
