Front Sun Gear, 3RD One-Way Clutch: Disassembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

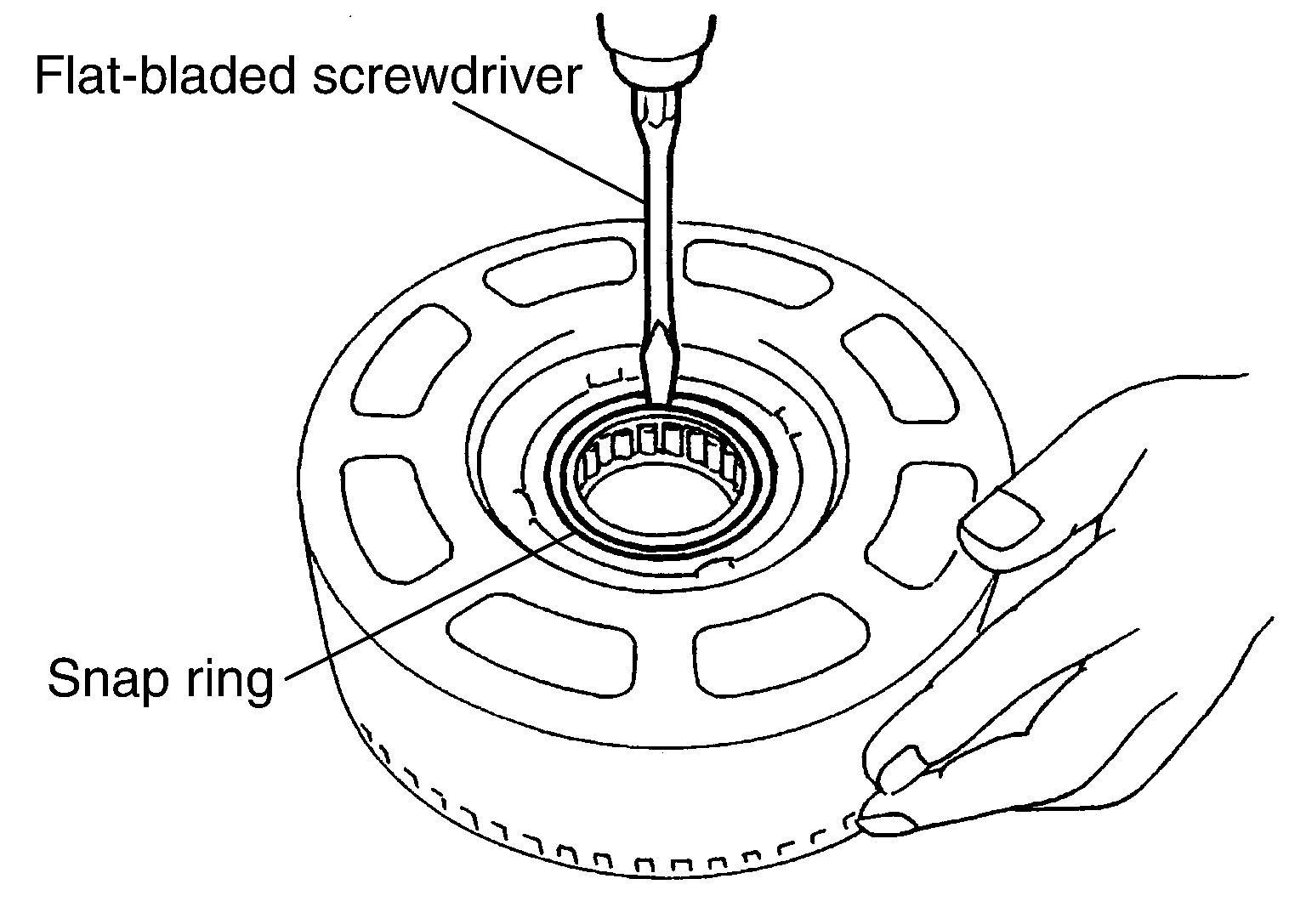

  1. Remove snap ring from front sun gear with a flat-bladed screwdriver.
    G04075856Courtesy of NISSAN NORTH AMERICA, INC.

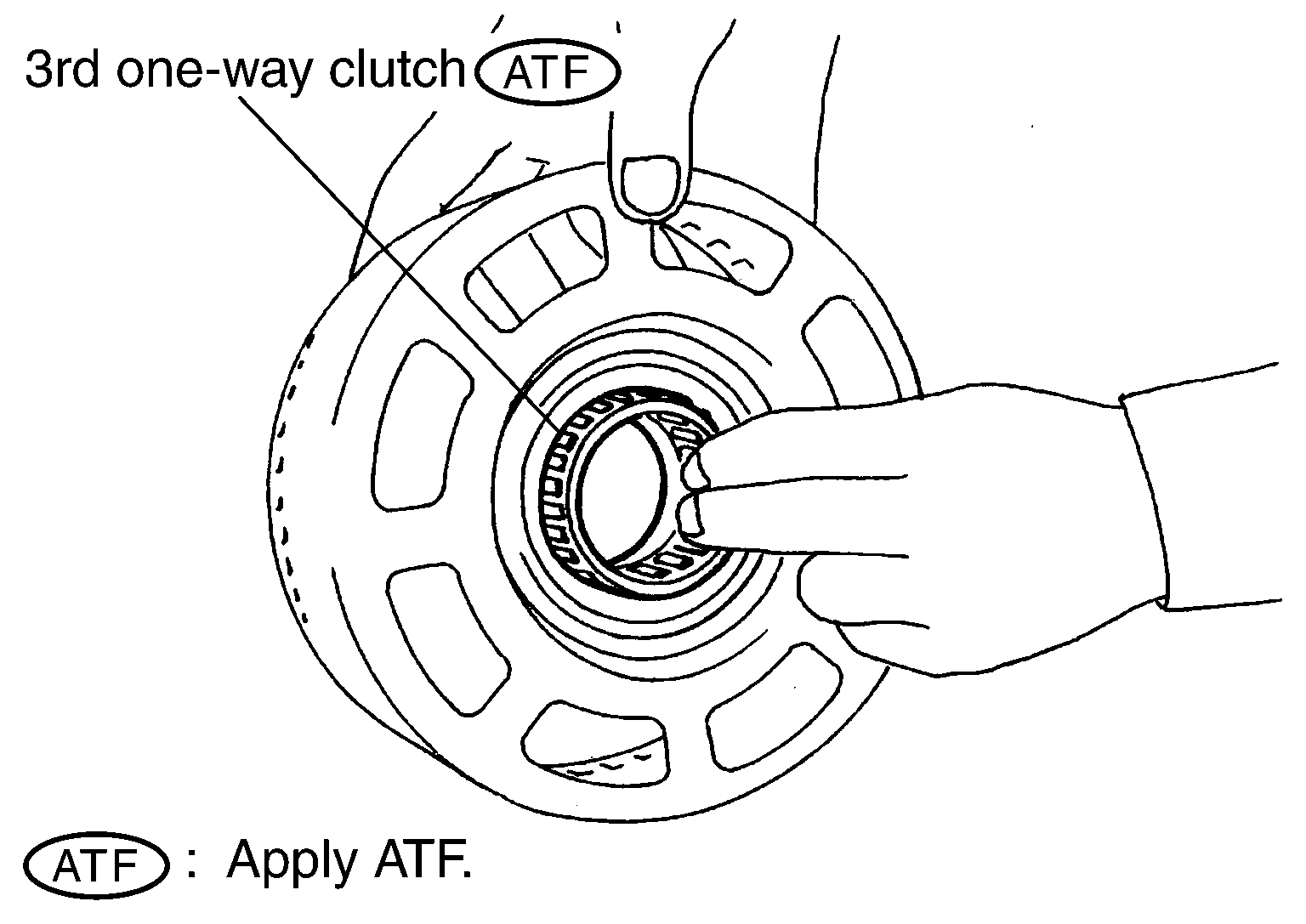

  2. Remove 3rd one-way clutch from front sun gear.
    G04075857Courtesy of NISSAN NORTH AMERICA, INC.
