Install 3rd one-way clutch to front sun gear.
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring to front sun gear with a flat-bladed screwdriver.
Courtesy of NISSAN NORTH AMERICA, INC.

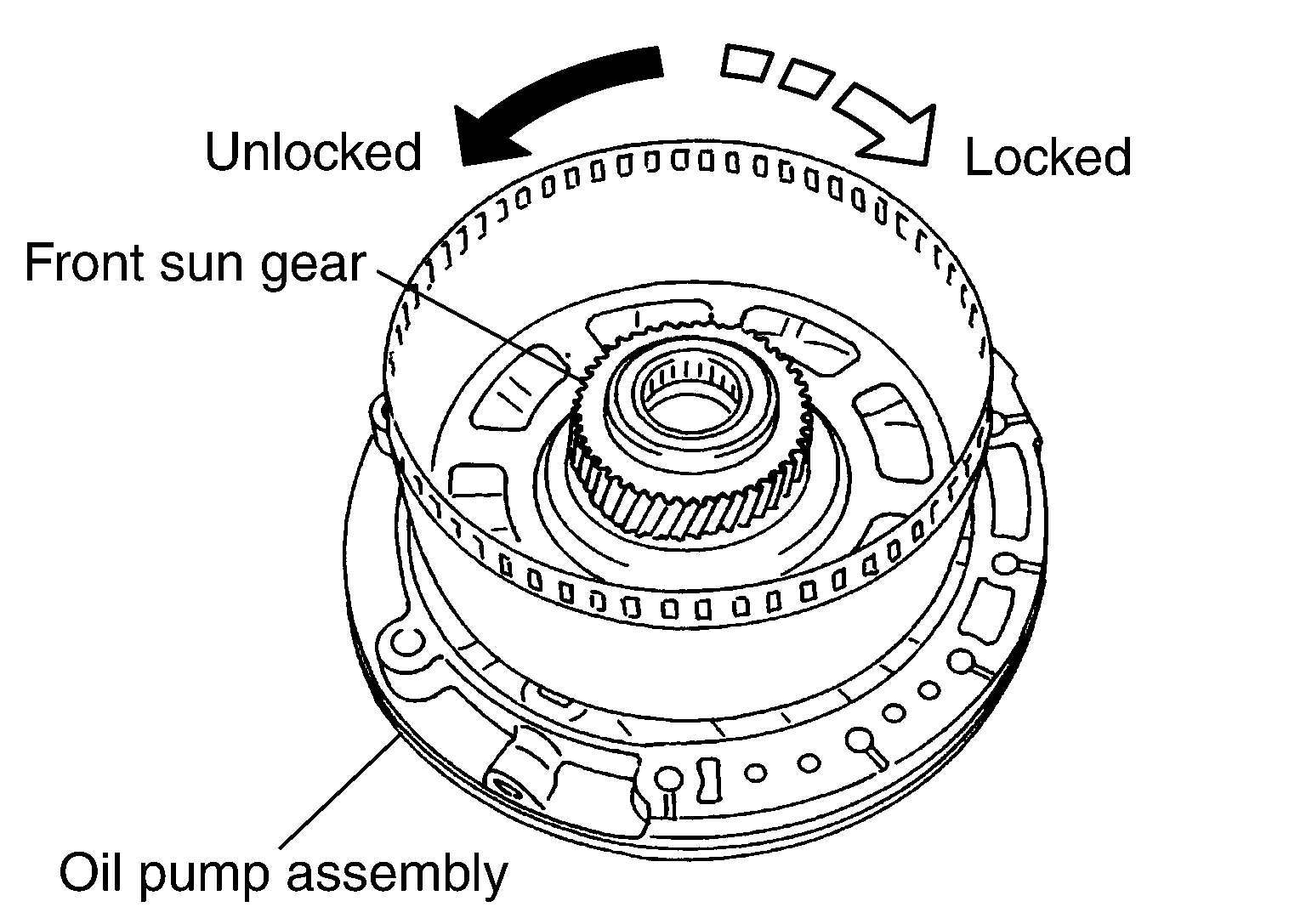

Check operation of 3rd one-way clutch.
Hold oil pump assembly and turn front sun gear.
Courtesy of NISSAN NORTH AMERICA, INC.
Check 3rd one-way clutch for correct locking and unlocking directions.
CAUTION:
If not as shown in figure, check installation direction of 3rd one-way clutch.
