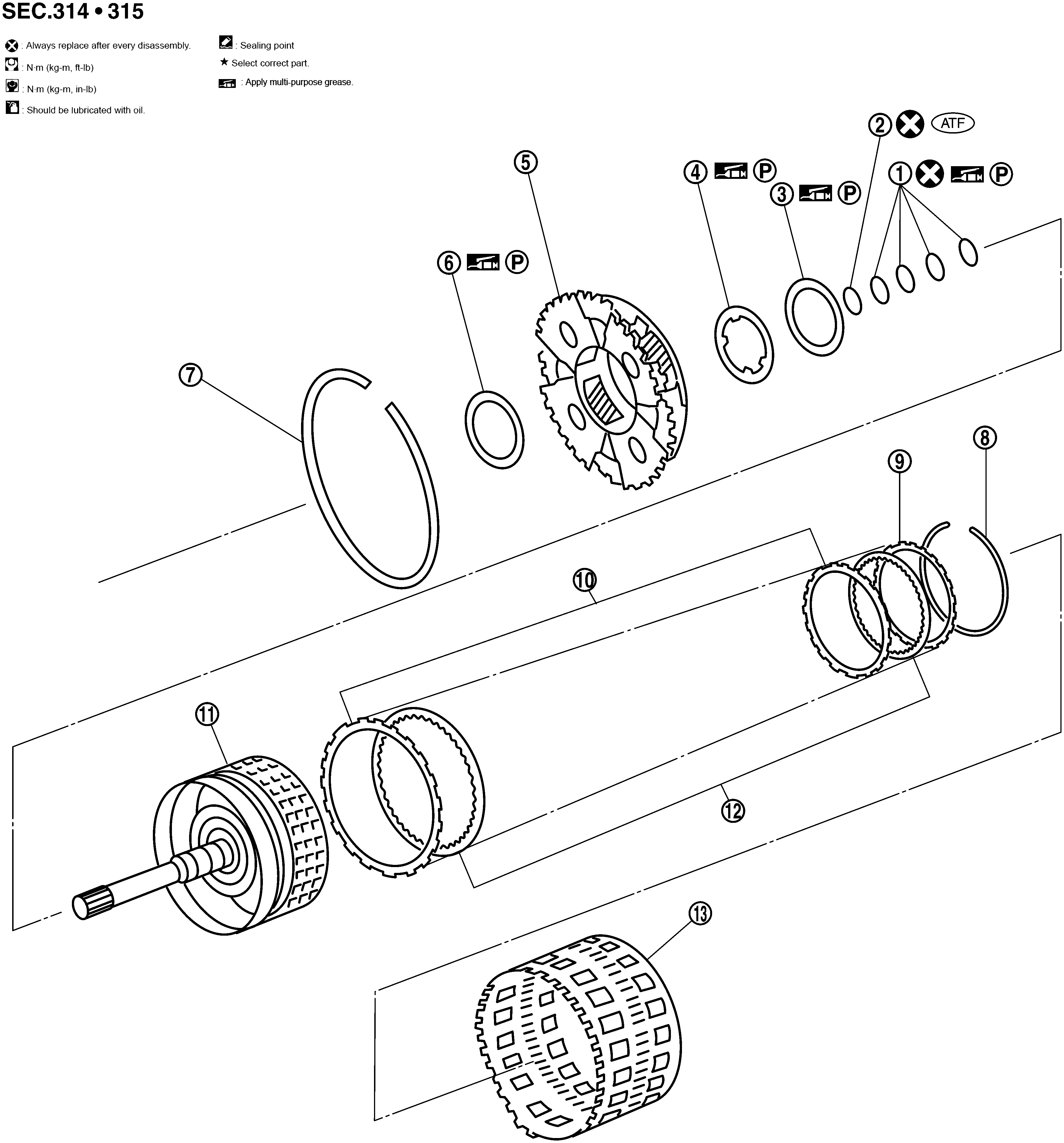

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Seal rings |
2. |
O-ring |
3. |
Needle bearing |
|
4. |
Bearing race |
5. |
Front carrier assembly |
6. |
Needle bearing |
|
7. |
Snap ring |
8. |
Snap ring |
9. |
Retaining plate |
|
10. |
Driven plate |
11. |
Input clutch drum |
12. |
Drive plate |
|
13. |
Rear internal gear |
||||
|
Refer to Components for symbols in the figure. |
|||||
