Cross-Sectional View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

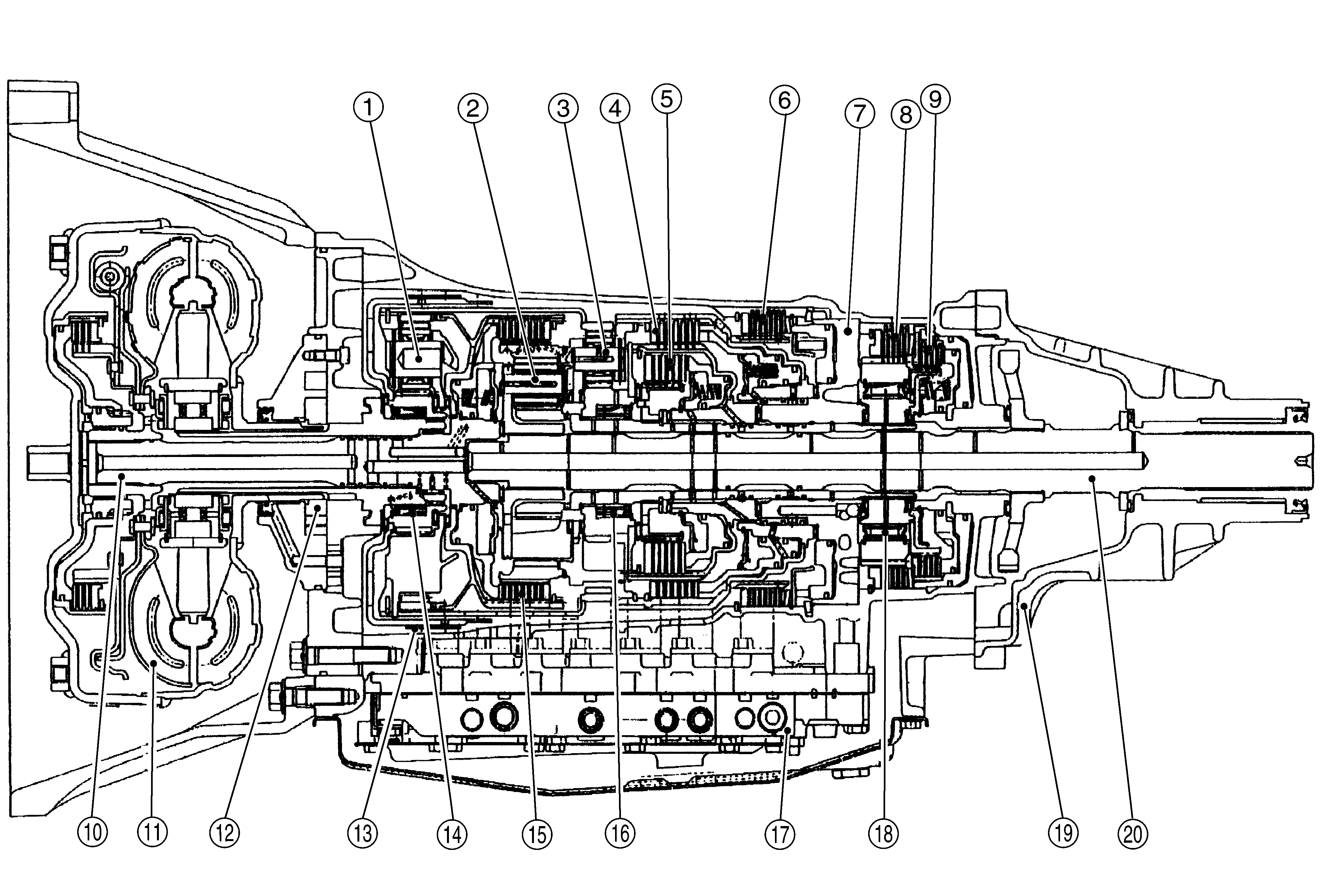

1. |
Front planetary gear |
2. |
Mid planetary gear |
3. |
Rear planetary gear |
|
4. |
Direct clutch |
5. |
High & low reverse clutch |
6. |
Reverse brake |
|
7. |
Drum support |
8. |
Forward brake |
9. |
Low coast brake |
|
10. |
Input shaft |
11. |
Torque converter |
12. |
Oil pump |
|
13. |
Front brake |
14. |
3rd one-way clutch |
15. |
Input clutch |
|
16. |
1st one-way clutch |
17. |
Control valve with TCM |
18. |
Forward one-way clutch |
|
19. |
Rear extension |
20. |
Output shaft |
