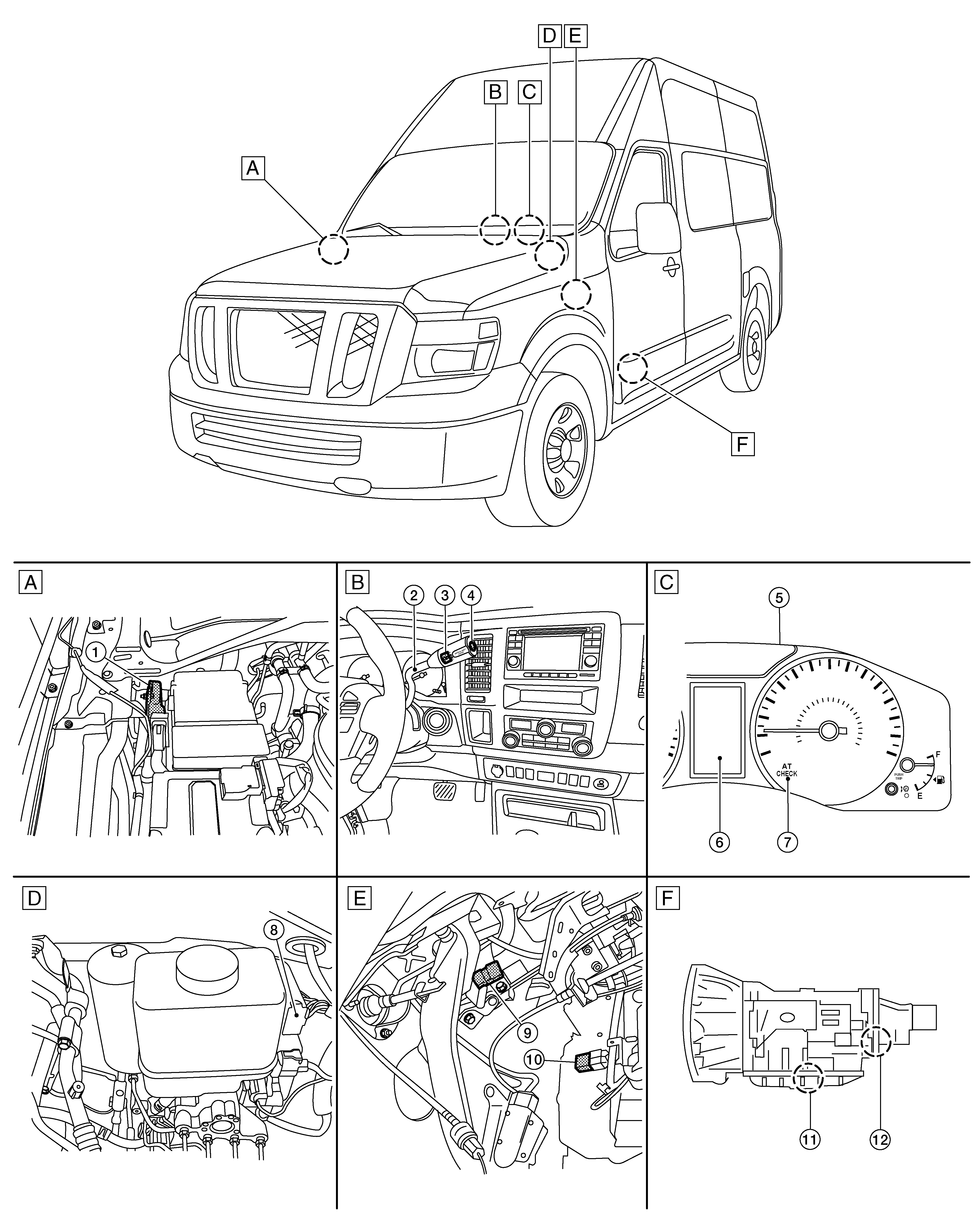

Component Parts Location
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
ECM |
2. |
A/T shift selector |
3. |
Manual position select switch |
|
4. |
Manual mode switch |
5. |
Combination meter |
6. |
Shift position indicator |
|
7. |
A/T CHECK indicator lamp |
8. |
ABS actuator and electric unit (control unit) |
9. |
Stop lamp switch |
|
10. |
TCM (transmission control module) relay |
11. |
A/T assembly (control valve and TCM)*1 |
12. |
Output speed sensor |
*1: The following components are included in the control valve and TCM.
- TCM (transmission control module)
- Input speed sensor 1
- Input speed sensor 2
- Low coast brake solenoid valve
- Front brake solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Direct clutch solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
- Pressure switch 2 (LC/B)
