Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Install magnets (1) as shown.

Courtesy of NISSAN NORTH AMERICA, INC.

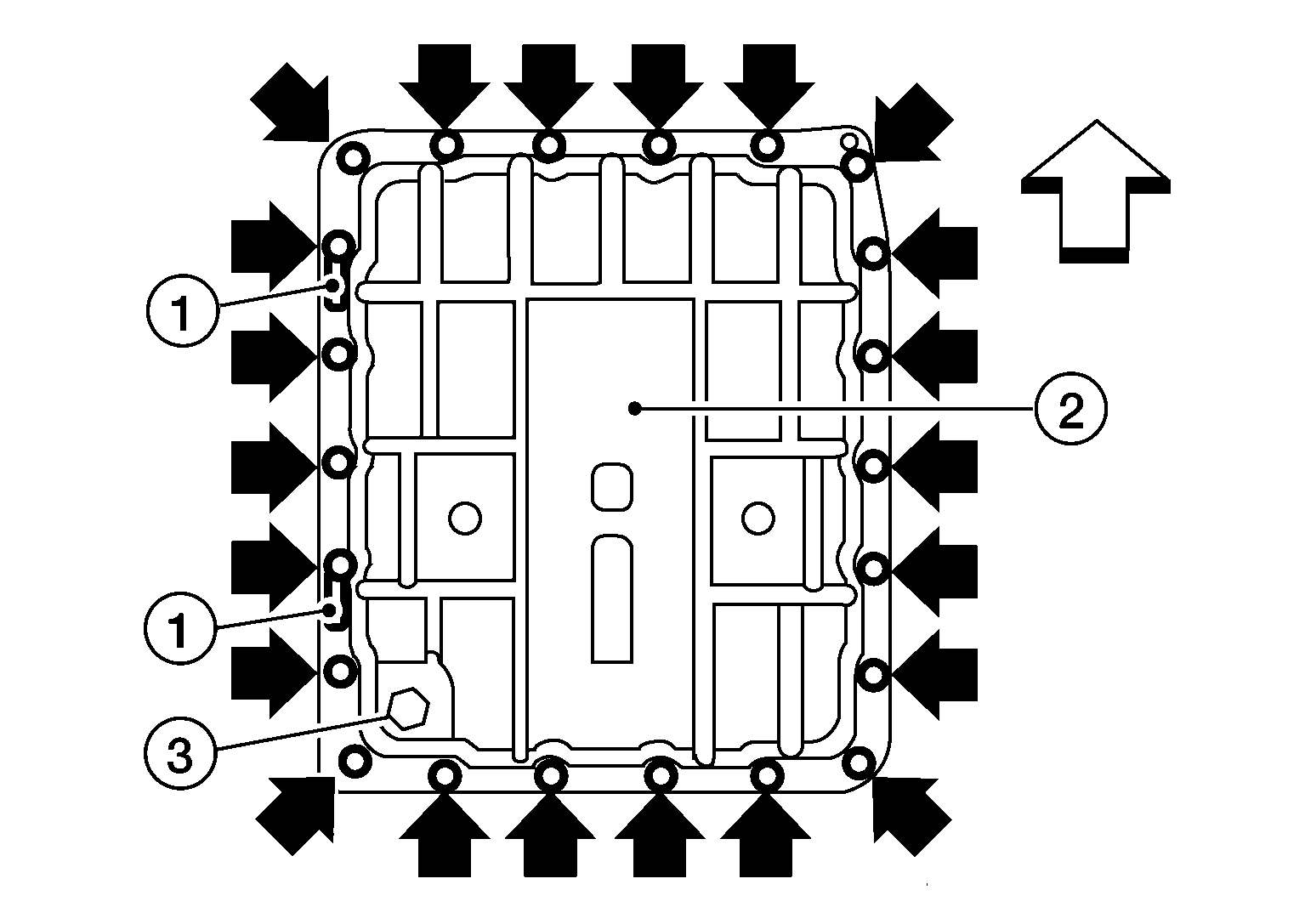

Install oil pan (2) with a new oil pan gasket and clips (1).

Courtesy of NISSAN NORTH AMERICA, INC.

Partially install the oil pan bolts to secure the oil pan.
- : Front
- : Oil pan bolt
- (3): Drain plug
CAUTION:
- Be sure the oil drain plug is located to the rear of the transmission assembly.
- Before installing oil pan bolts, remove any traces of sealant from sealing surface and threaded holes.
- Do not reuse old gasket, replace with a new one.
- Always replace oil pan bolts as they are self-sealing.
- Partially install the oil pan bolts in a criss-cross pattern to prevent dislocation of the gasket.
Tighten oil pan bolts to specification in numerical order as shown.

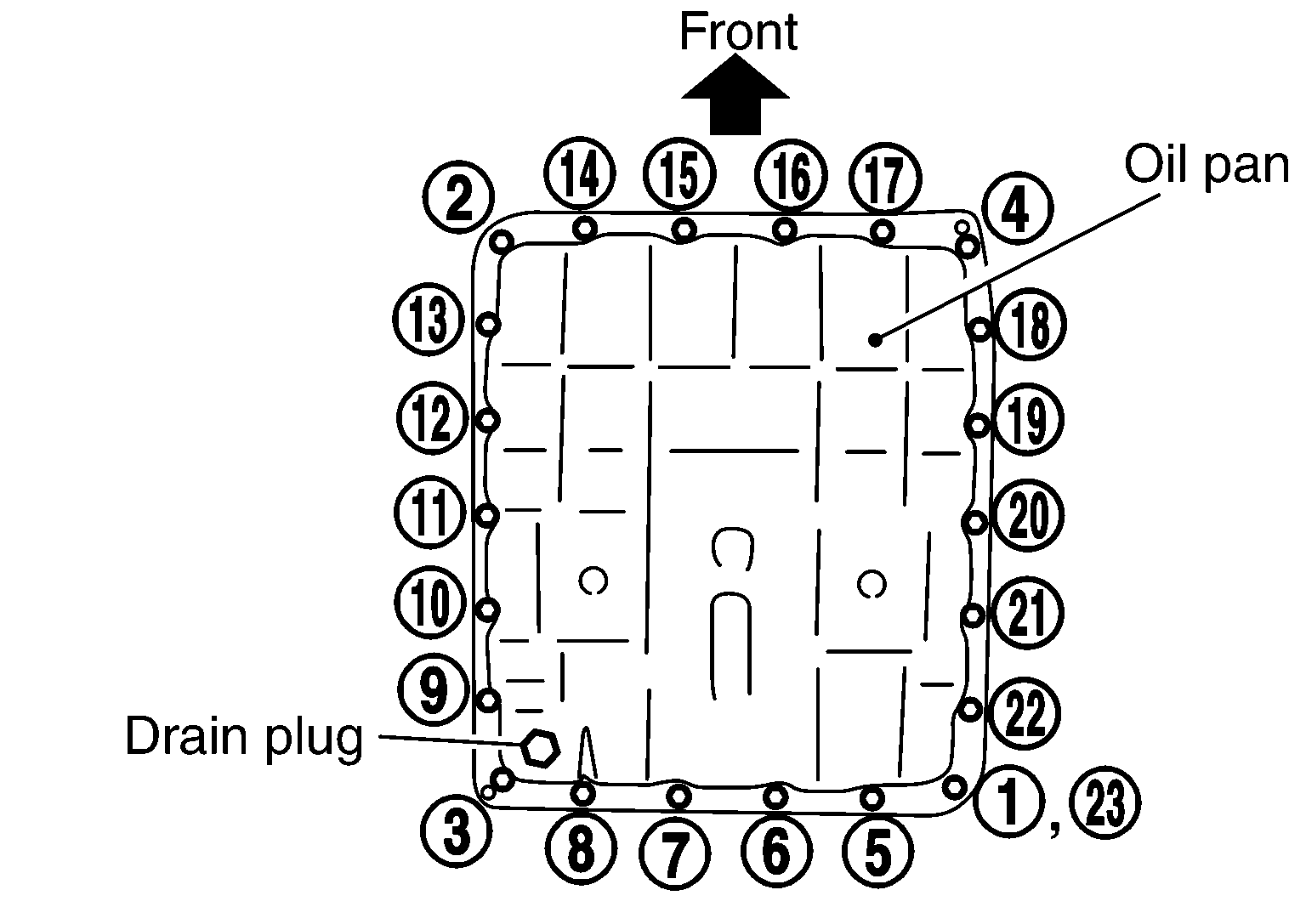

Fig 1: Oil Pan Bolts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
Install drain plug with a new drain plug gasket to oil pan and tighten to specification.
CAUTION: Do not reuse drain plug gasket. Replace with a new one.
Refill A/T with fluid and check for leaks. Refer to Checking A/T Fluid .
