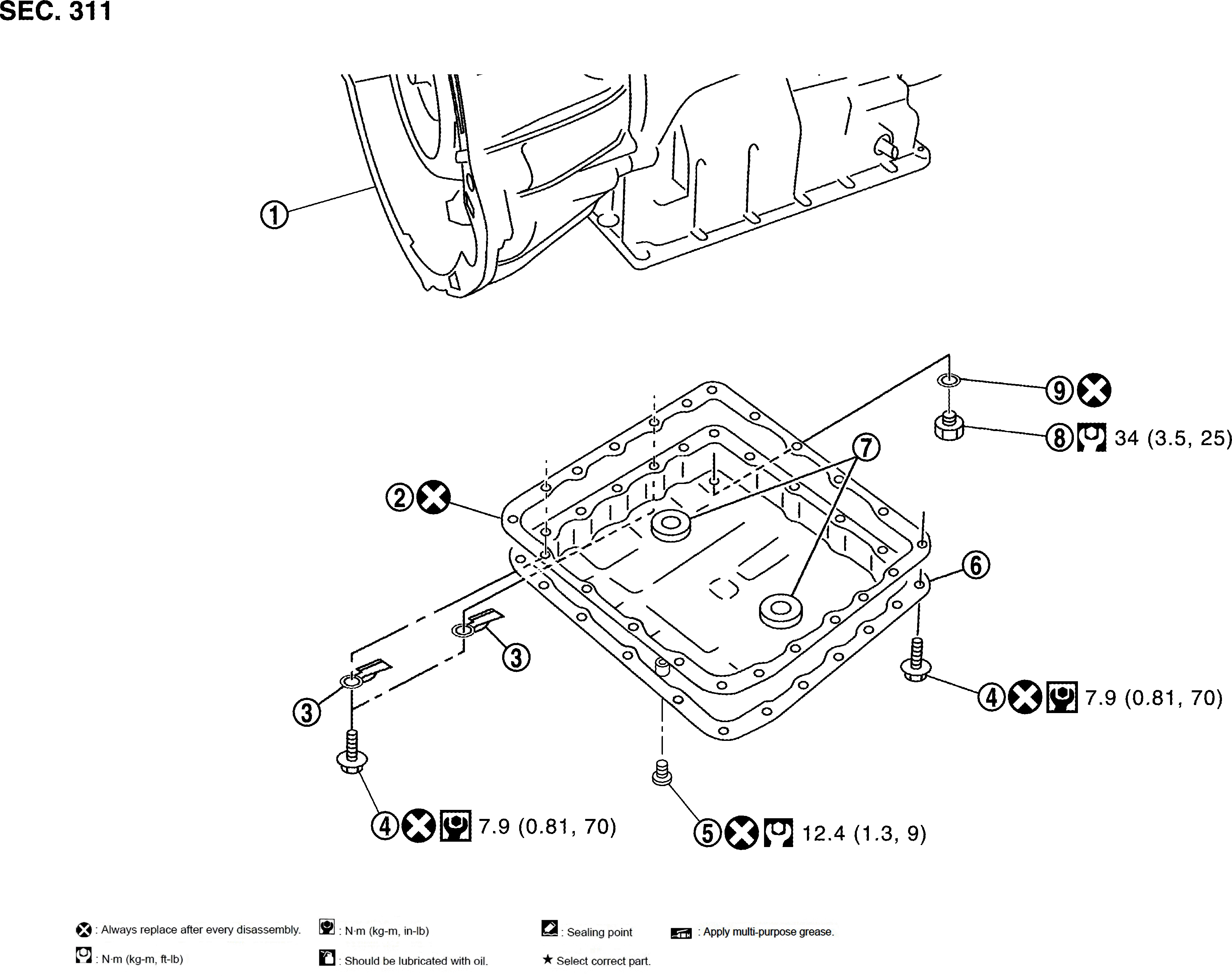

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
A/T assembly |
2. |
Oil pan gasket |
3. |
Clip |
|
4. |
Oil pan mounting bolt |
5. |
Overflow plug |
6. |
Oil pan |
|
7. |
Magnets |
8. |
Drain plug |
9. |
Drain plug gasket |
|
Refer to Components for symbols in the figure. |
|||||
