Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument lower panel LH. Refer to Removal and Installation .
  2. Remove steering column covers. Refer to Removal and Installation .

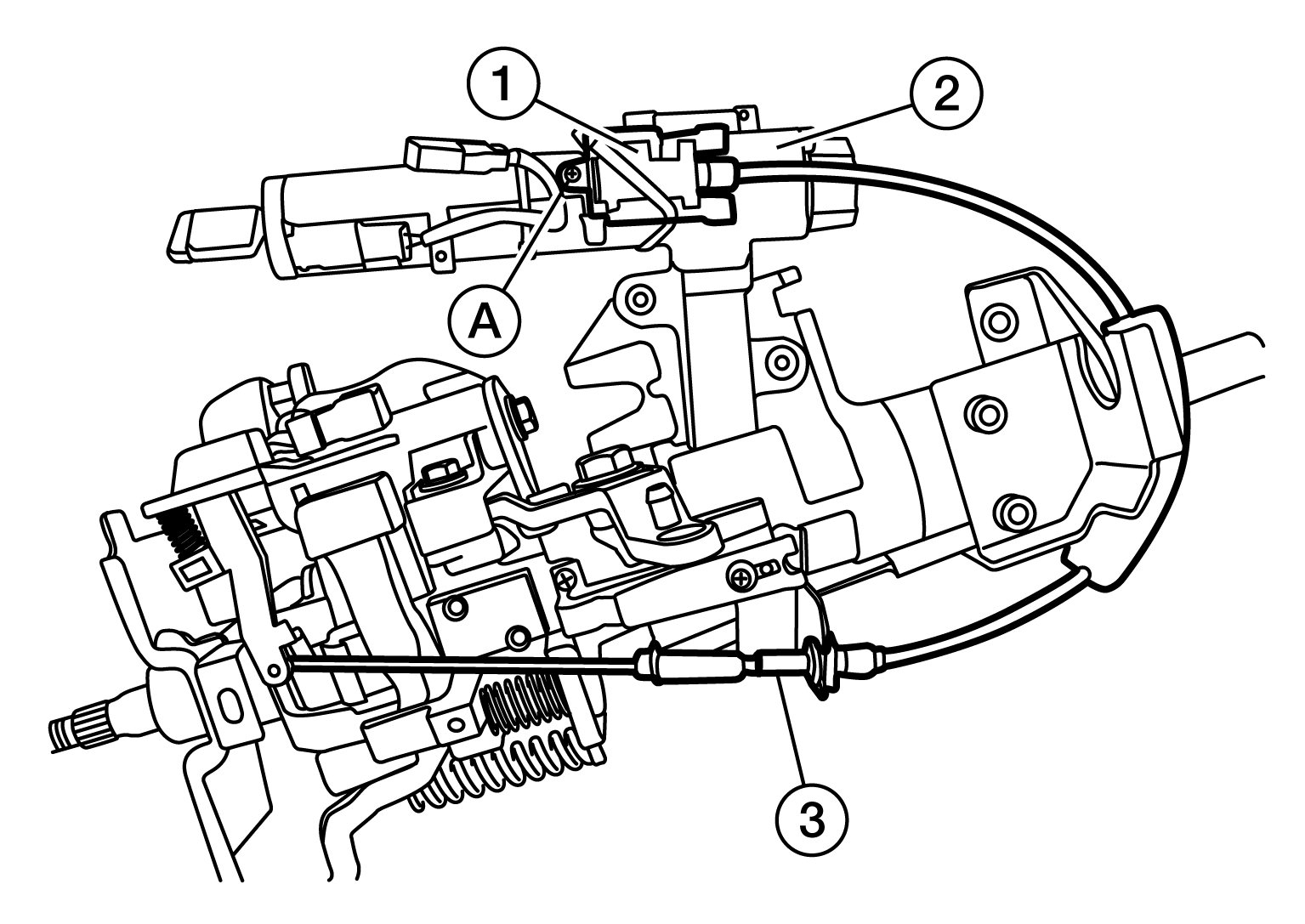

  3. Remove the screw (A) and disconnect key interlock lock cable (1) from steering lock unit (2).
    GNSDB120827Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the key interlock cable (1) from the key interlock cable bracket (3) and remove key interlock cable (1) from the steering column.
