Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Make sure clips are securely installed to the brackets.
Do not bend or crush the A/T air breather hose.

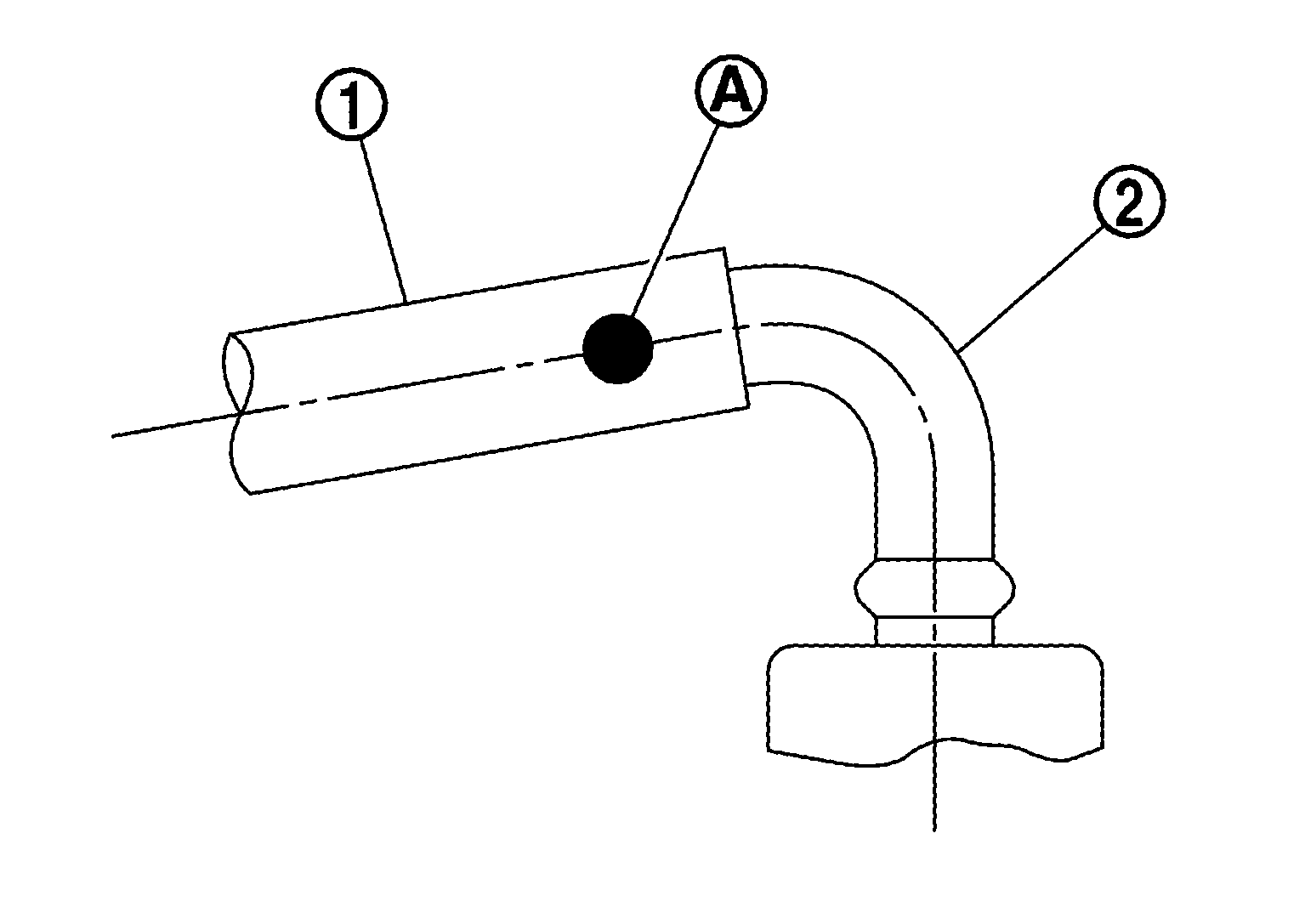

Insert A/T air breather hose (1) to A/T air breather tube (2) until it reaches the curve of the A/T air breather tube.

Courtesy of NISSAN NORTH AMERICA, INC.
Insert the A/T air breather hose (1) to the A/T air breather tube (2) with the paint mark (A) in the upward direction.
Insert clips in brackets.

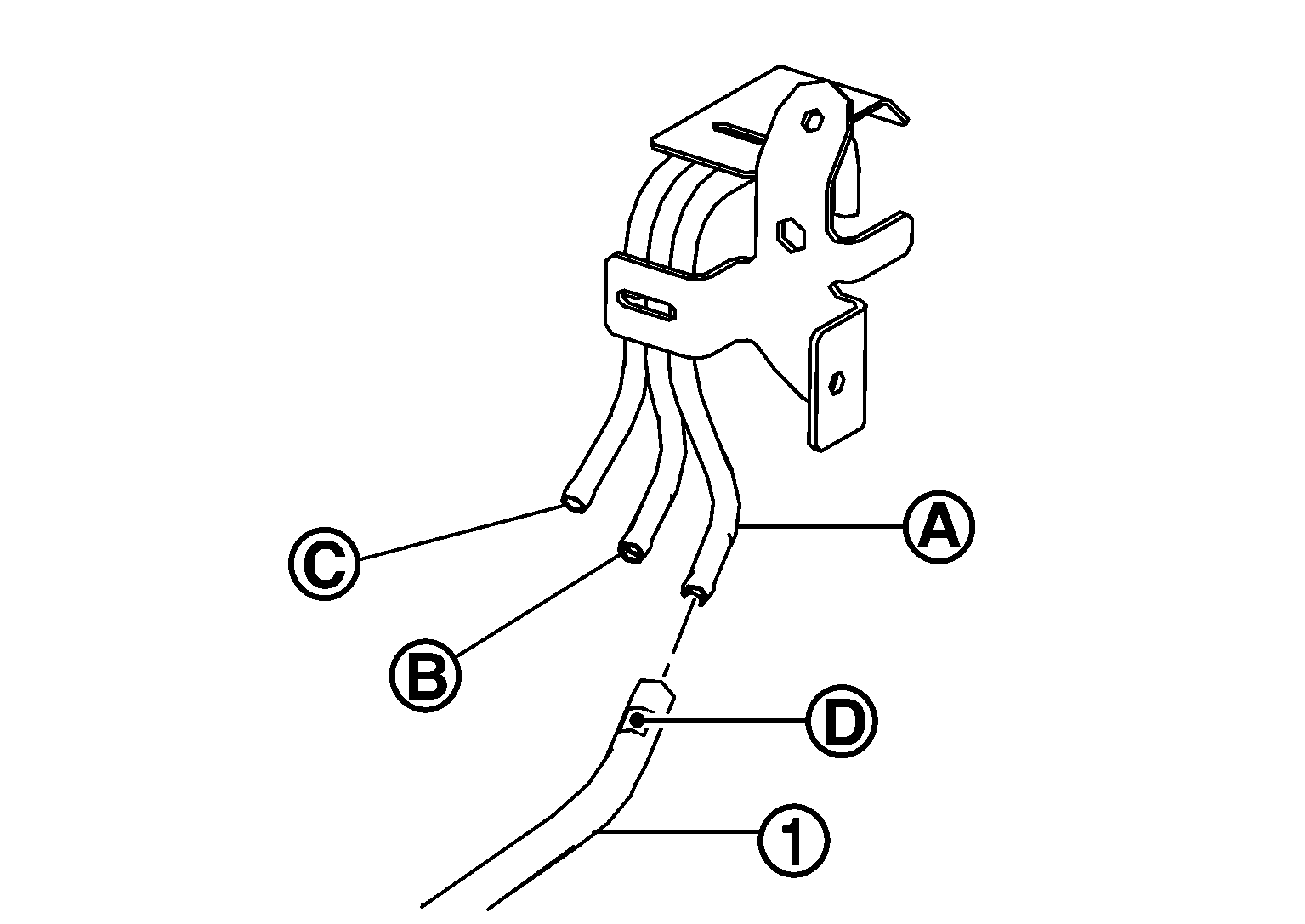

Insert A/T air breather hose (1) to air breather tube (A) until it reaches the curve of the air breather tube.

Courtesy of NISSAN NORTH AMERICA, INC.
- (B): Not used
- (C): Not used
Insert A/T air breather hose (1) to air breather tube (A) with the paint mark (D) in the upward direction.
