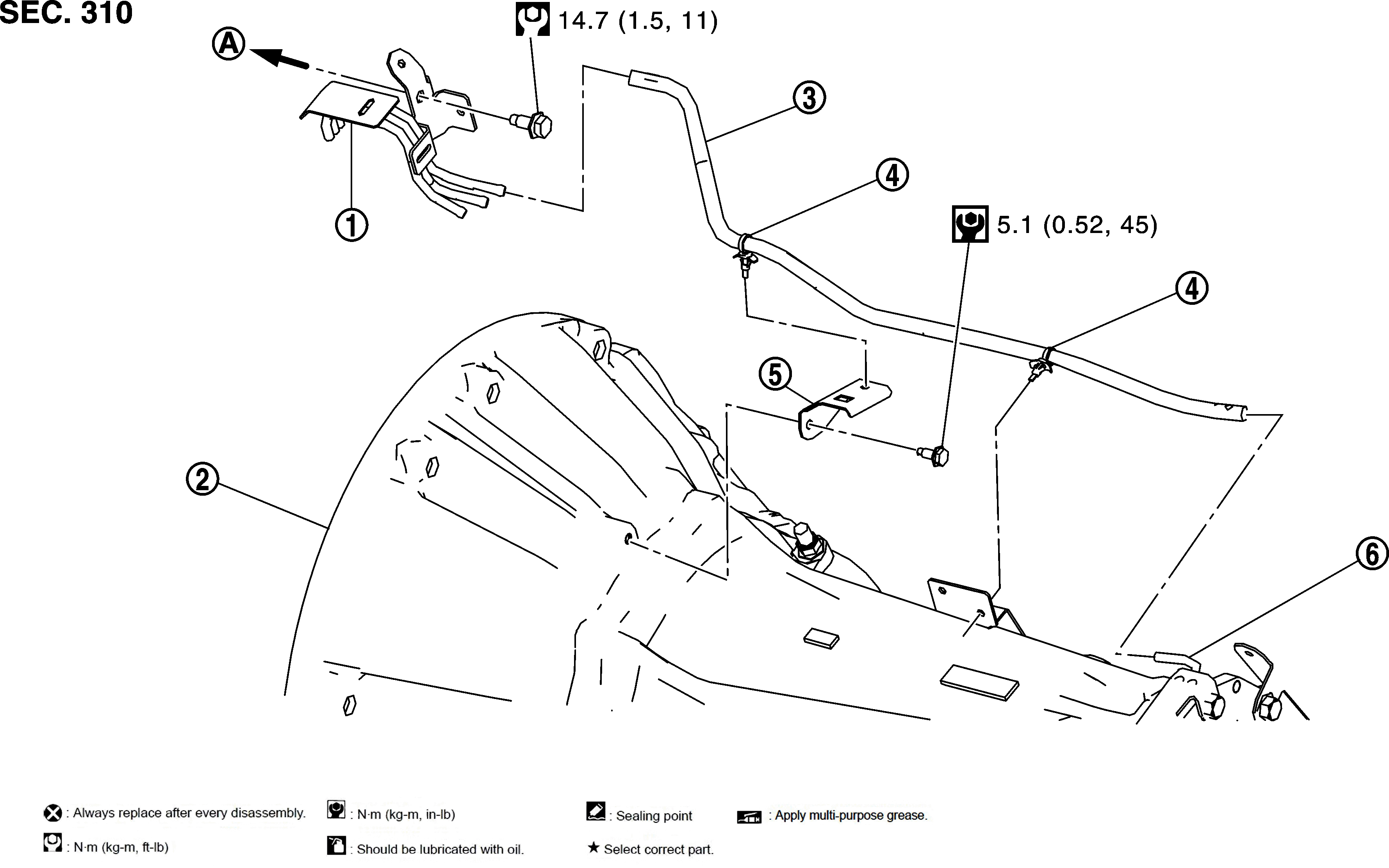

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Air breather tube |
2. |
A/T assembly |
3. |
A/T air breather hose |
|
4. |
Clip |
5. |
Bracket |
6. |
A/T air breather tube |
|
A. |
To water outlet. Refer to Exploded View . |
||||
|
Refer to Components for symbols in the figure. |
|||||
