Adjustment Of A/T Position

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the parking brake.
    CAUTION: Make sure the vehicle cannot move with parking brake set.

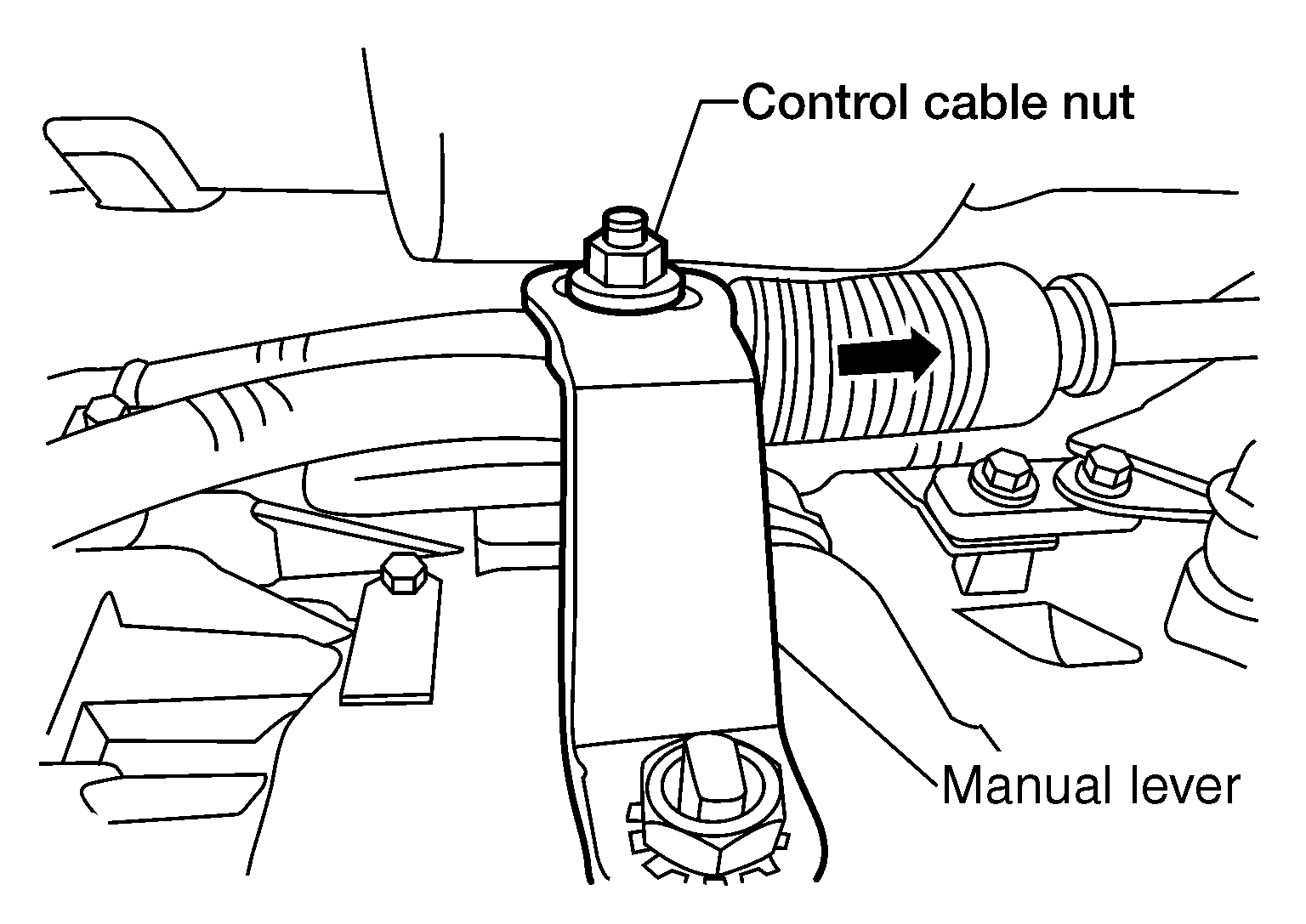

  2. Loosen control cable nut.
    G04149276Courtesy of NISSAN NORTH AMERICA, INC.
  3. Place the manual lever and shift selector in "P" position.
  4. Push the control cable in the direction shown with a force of 9.8 N (1kg-f, 2.2 lb-f), then release the cable and temporarily tighten control cable nut.
    CAUTION: Do not apply any load to the manual lever.
    NOTE: Make sure the manual lever stays in "P" position.
  5. Tighten the control cable nut to the specified torque.

    Control cable nut

    : 14.5 N.m (1.5 kg-m, 11 ft-lb)
  6. Check the operation of the A/T.
