Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

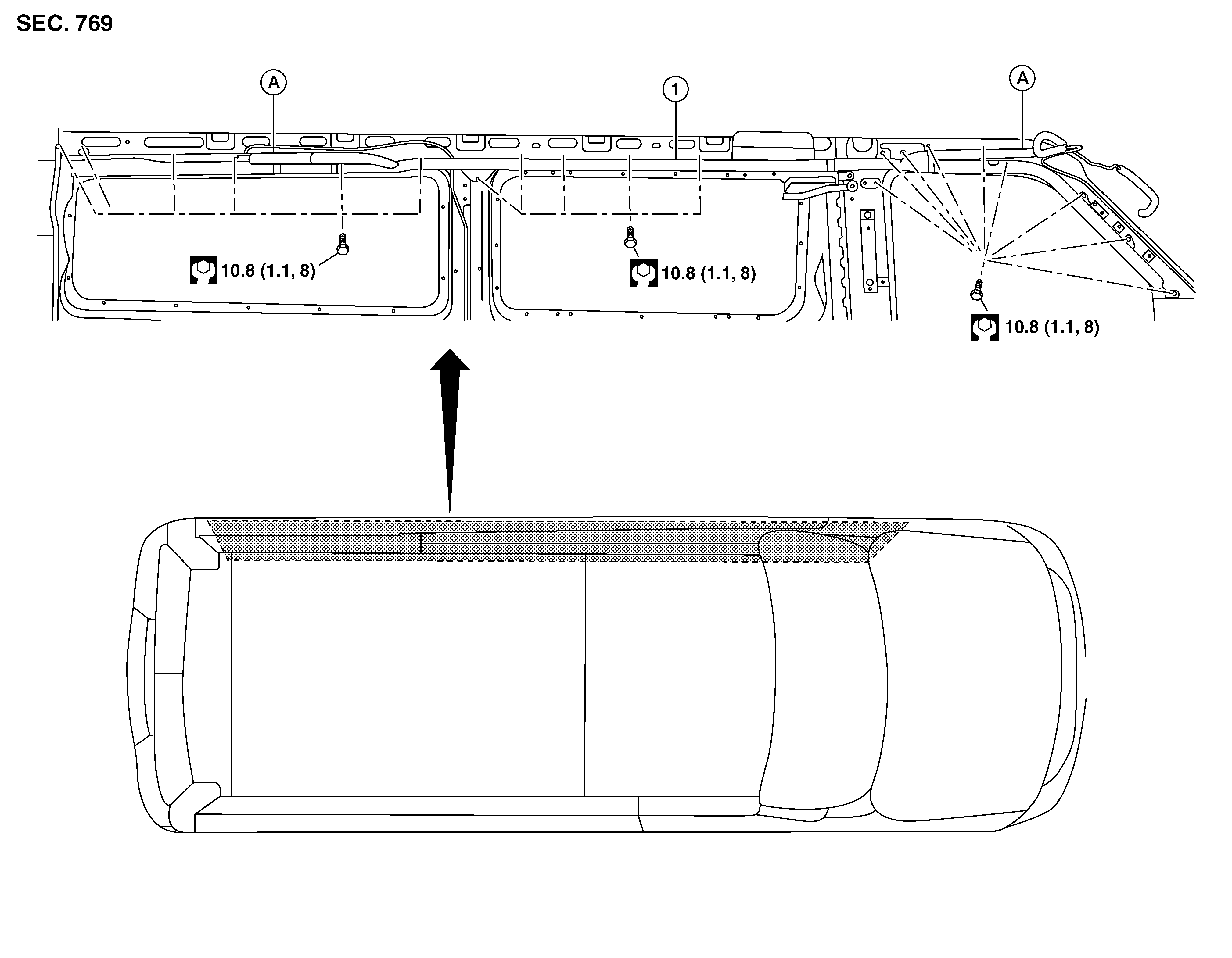

Fig 1: Side Curtain Air Bag Module With Torque Specifications - Cargo Van

Courtesy of NISSAN NORTH AMERICA, INC.

Side curtain air bag module

Side curtain air bag module harness connector

NOTE: LH shown; RH similar.

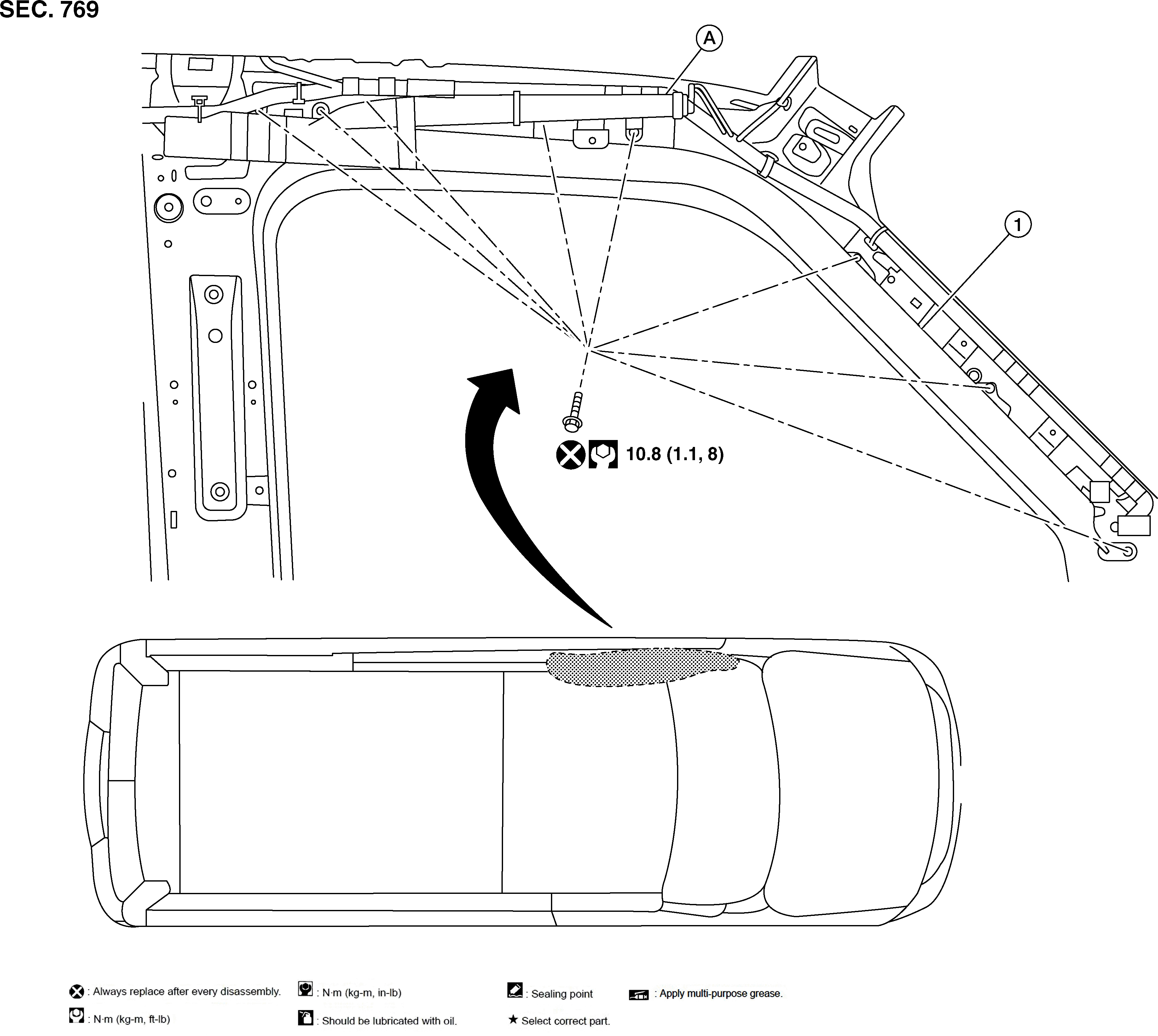

Fig 2: Side Curtain Air Bag Module With Torque Specifications - Passenger Van LH

Courtesy of NISSAN NORTH AMERICA, INC.

Side curtain air bag module (LH)

Side curtain air bag module (LH) harness connector

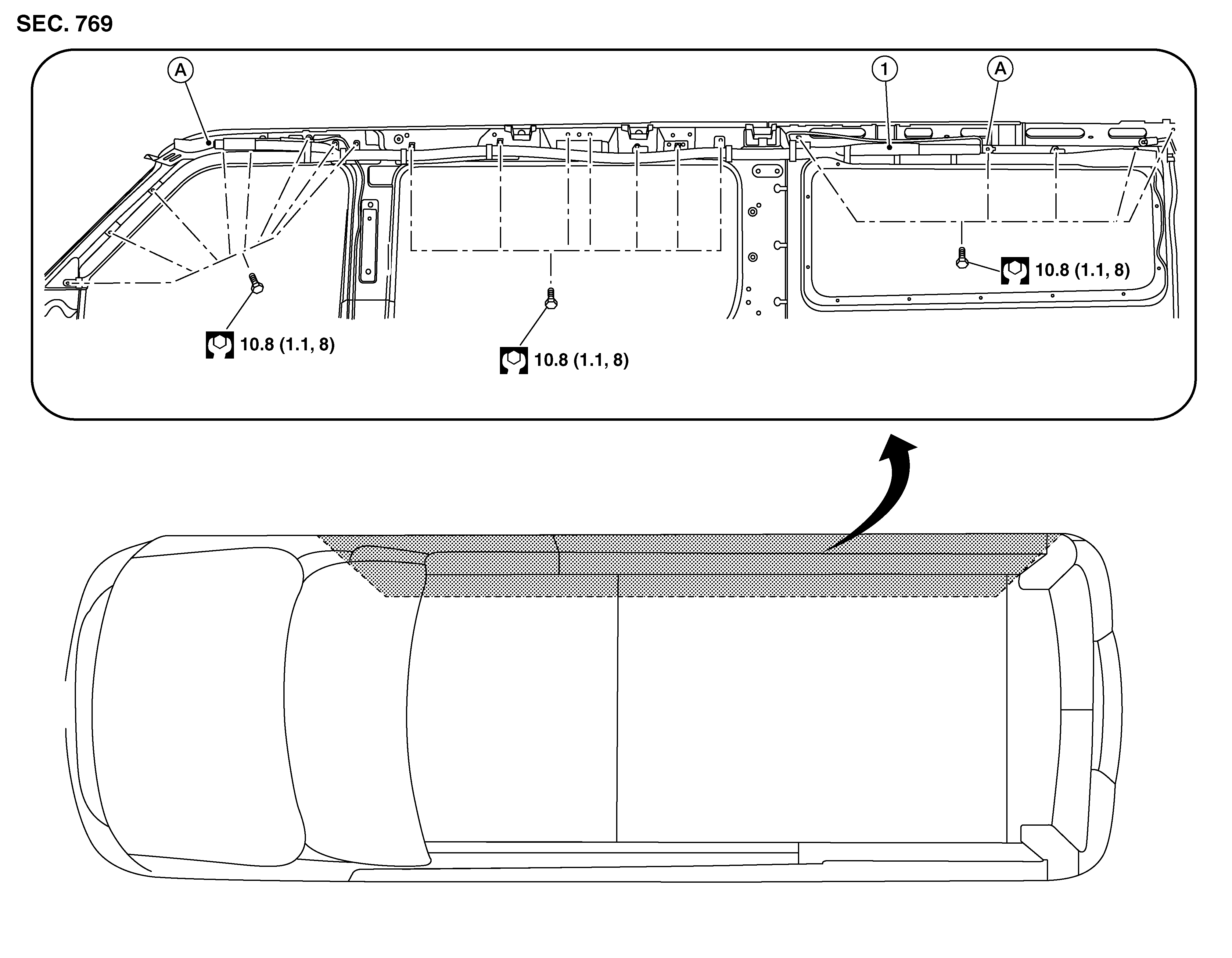

Fig 3: Side Curtain Air Bag Module With Torque Specifications - Passenger Van RH

Courtesy of NISSAN NORTH AMERICA, INC.

Side curtain air bag module (RH)

Side curtain air bag module (RH) harness connector
