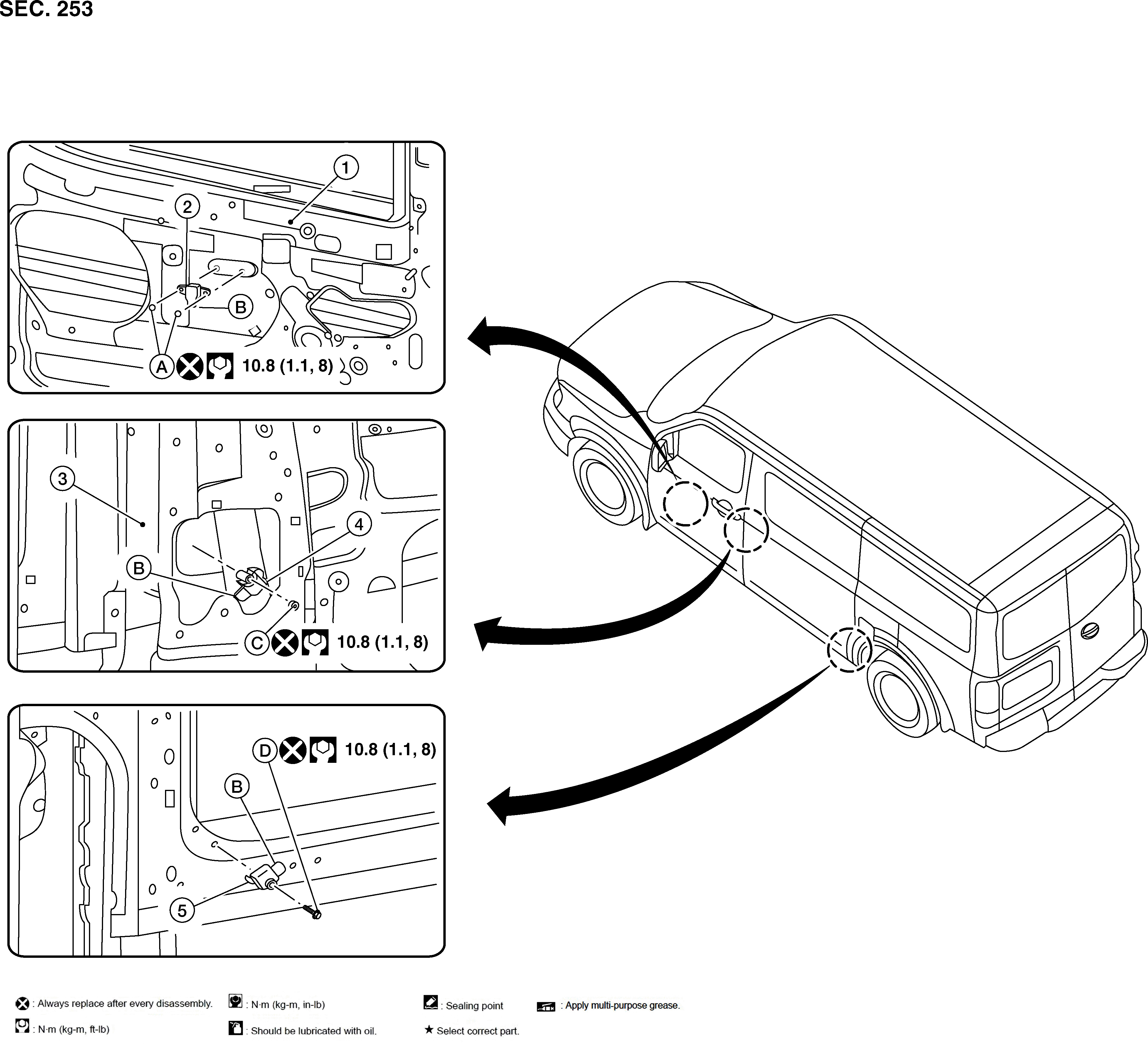

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front door |
2. |
Front door satellite sensor |
3. |
"B" pillar |
|
4. |
Front side air bag (satellite) sensor |
5. |
(for passenger van) |
A. |
Front door satellite sensor bolt |
|
B. |
Satellite sensor connector |
C. |
Front side air bag (satellite) sensor nut |
D. |
(for passenger van) |
NOTE:
LH side shown, RH side similar.
