Removal and Installation: Installation
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

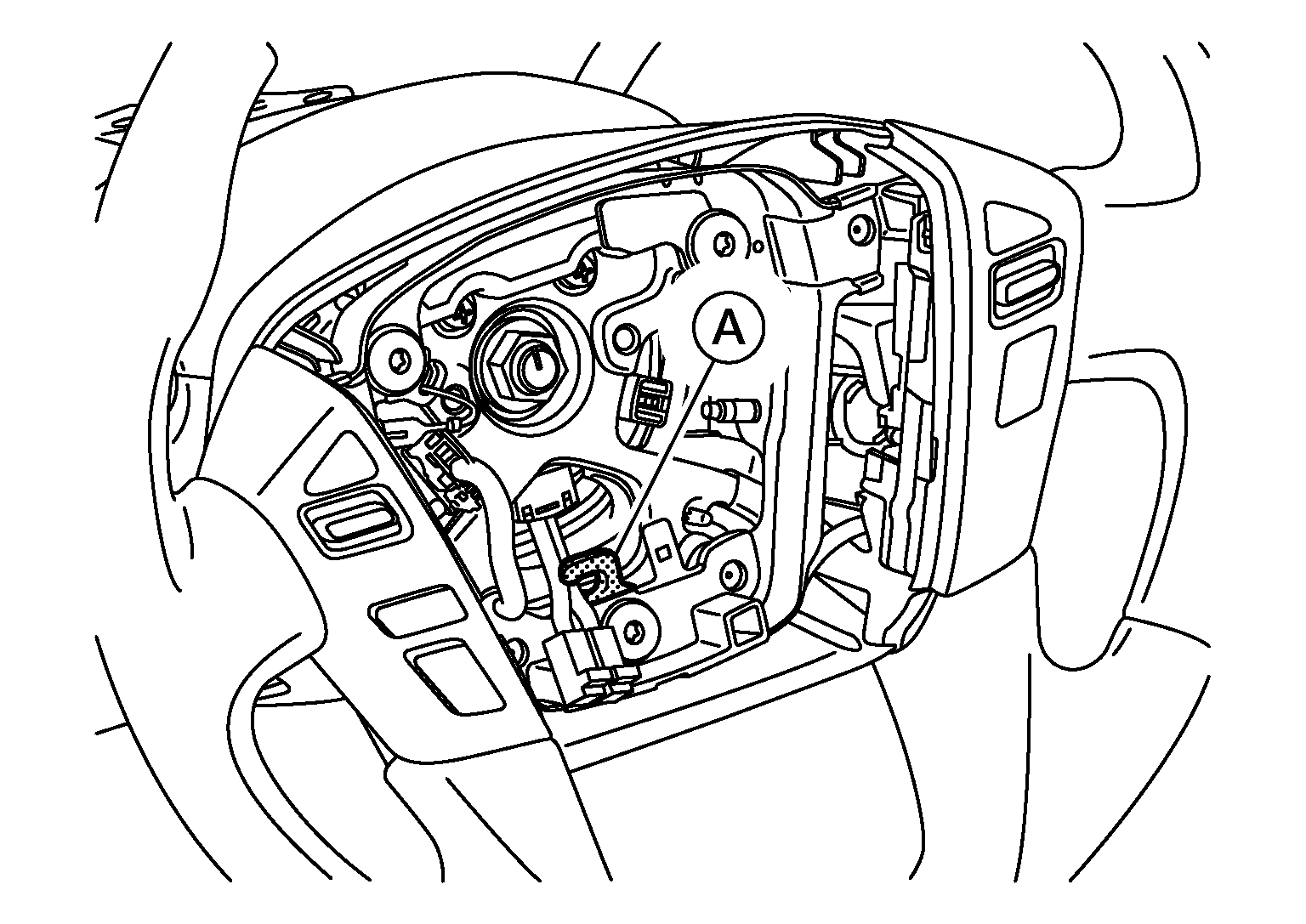

- Route the driver air bag module harness through the clip (A), then attach the connectors.
- Install the remaining components in the reverse order of removal.CAUTION:
- Do not use old bolts after removal; replace with new bolts.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.
- If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunctioning parts, perform SRS final check. Refer to SRS Final Check .
NOTE:- If driver air bag module is being replaced due to deployment, the spiral cable must also be replaced. Refer to Removal and Installation .
- For removal/installation of the direct-connect SRS connectors, refer to Direct-connect SRS Component Connectors .
