Method Of Starting

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the audio system OFF.

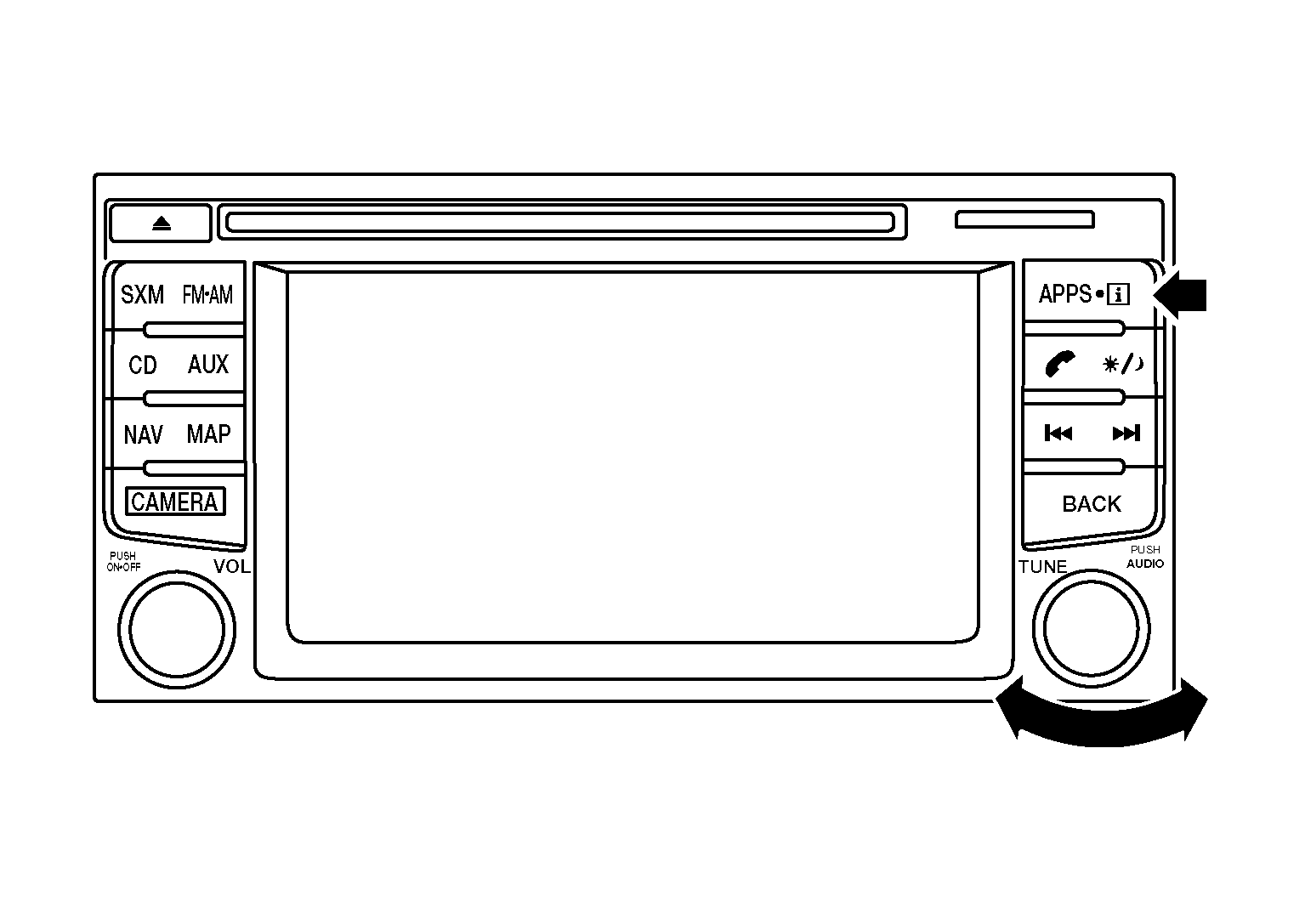

  3. While pressing the APPS button, turn the TUNE dial counterclockwise 5 or more clicks, then clockwise 5 or more clicks, then counterclockwise 5 or more clicks. Shifting from current screen to previous screen is performed by pressing BACK button.
    GNSAWNIA3744Z-744Courtesy of NISSAN NORTH AMERICA, INC.

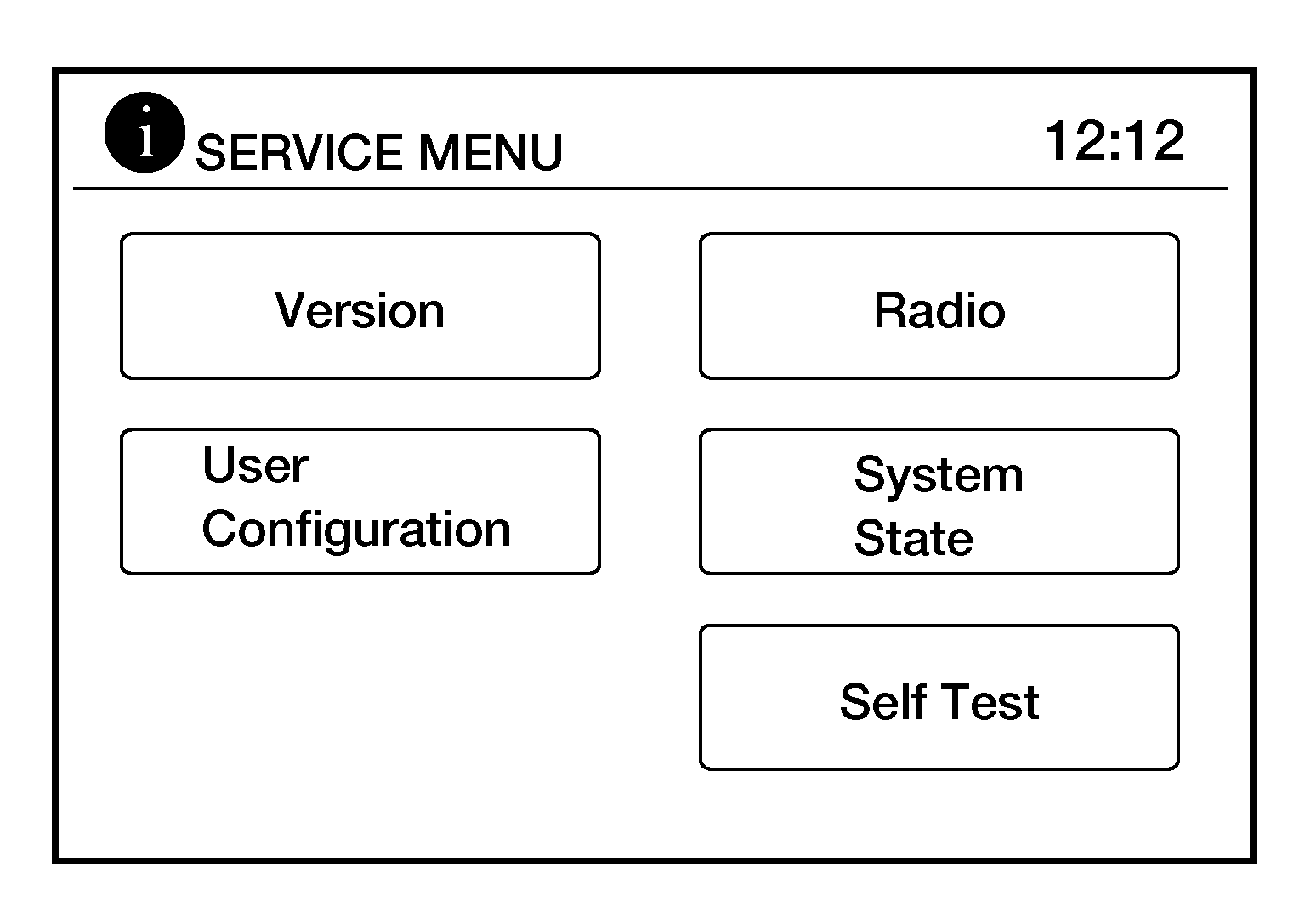

  4. The trouble diagnosis initial screen is displayed, and Version, User Configuration, Radio, System State or Self Test can be selected.
    GNSAWNIA3745Z-745Courtesy of NISSAN NORTH AMERICA, INC.
