Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the back door finisher (LH). Refer to Removal and Installation .

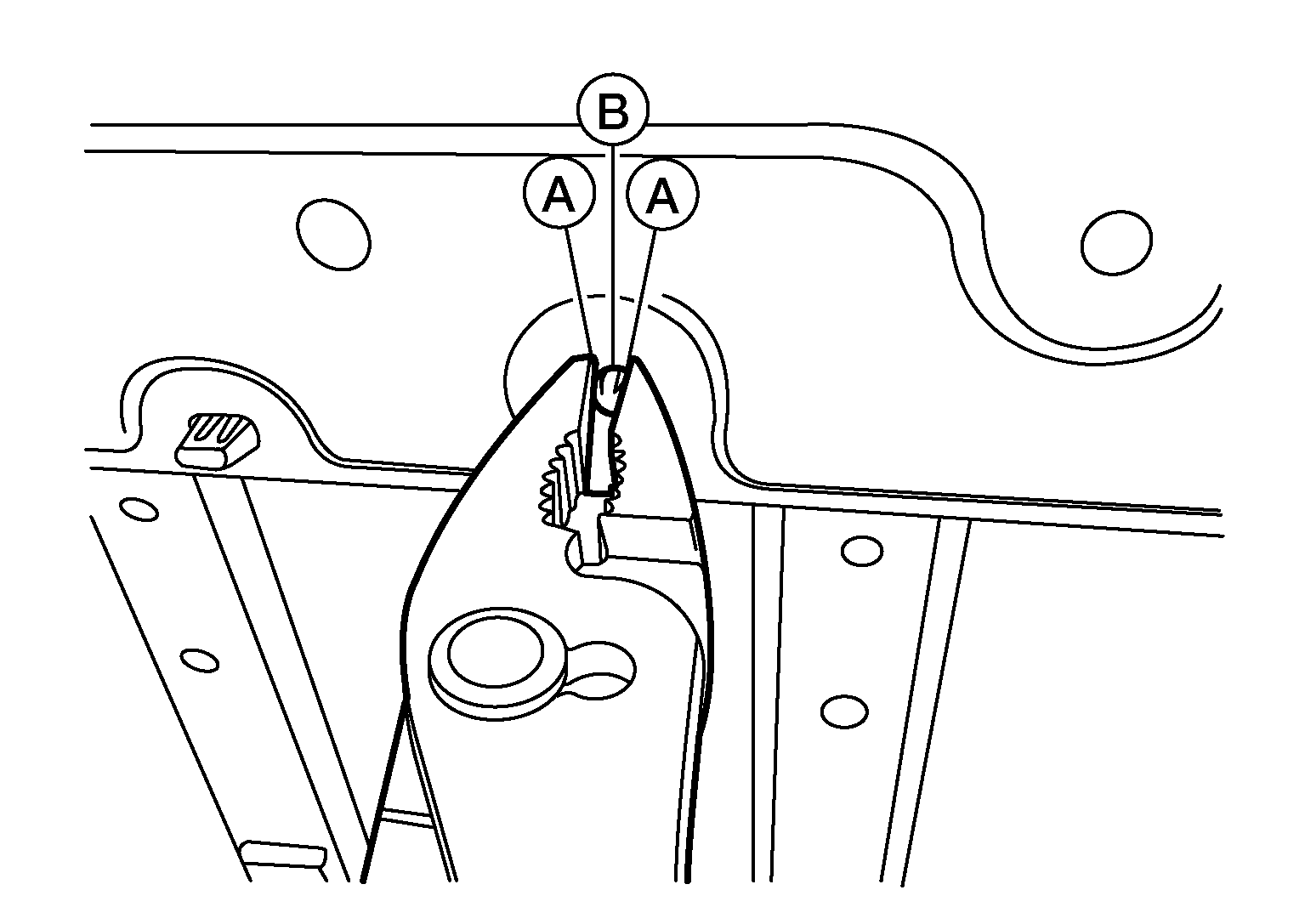

  2. Squeeze together the rear view camera harness retainer tabs (A) using a suitable tool and release the harness retainer (B) from the back door.
    GNSALNIA1274Z-274Courtesy of NISSAN NORTH AMERICA, INC.

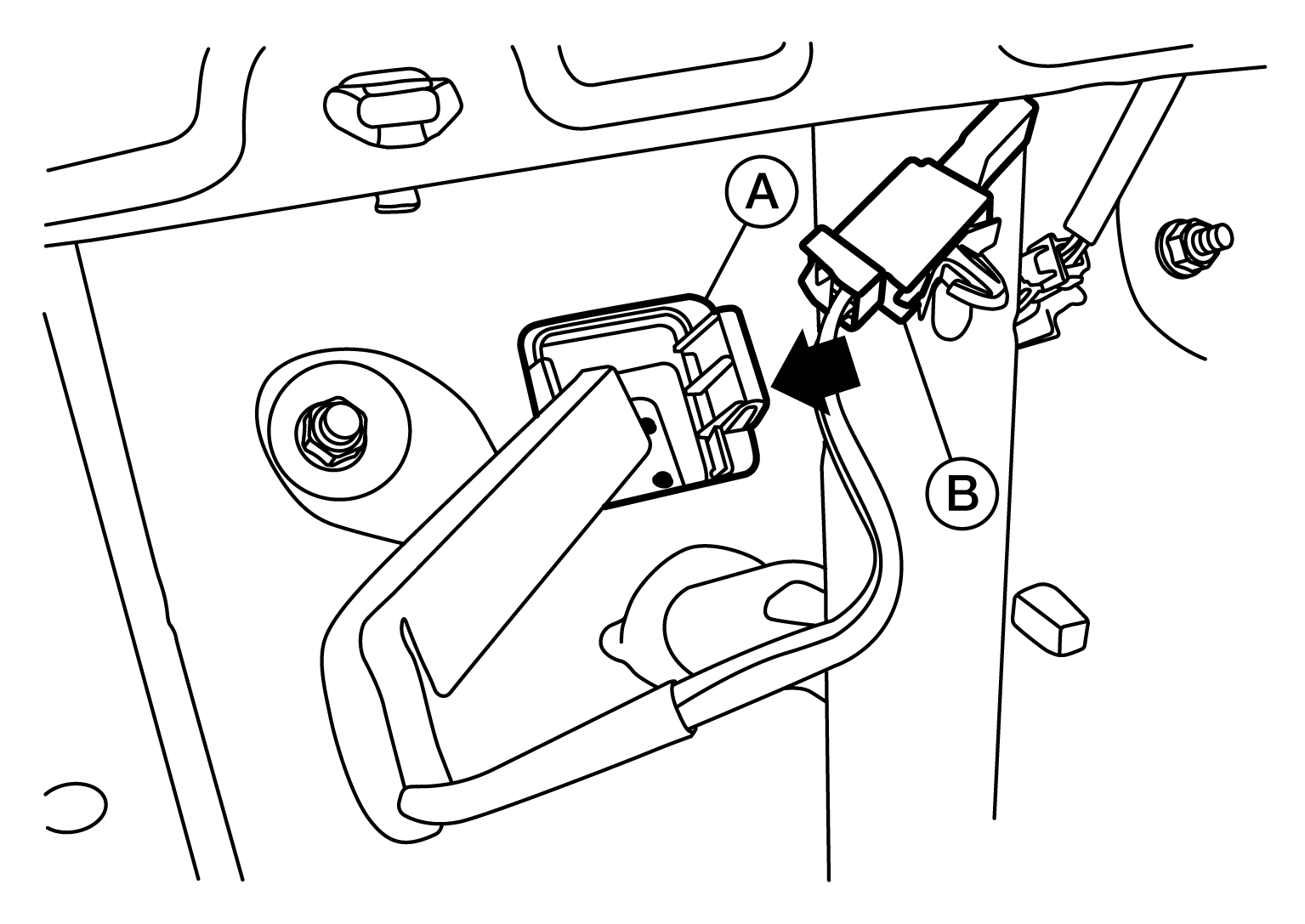

  3. Disconnect the harness connector (B) from the rear view camera.
    GNSALNIA1275Z-275Courtesy of NISSAN NORTH AMERICA, INC.
  4. Push inward on the rear view camera retainer pawl (A) and remove the rear view camera from outside of the vehicle.
