Rear Speaker RH

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

  1. Remove the fourth row RH bench seat (if necessary). Refer to Removal and Installation .
  2. Remove the rear lower finisher RH. Refer to Removal and Installation - Rear Lower Finisher (RH) (Passenger Van) .
  3. Remove the center lower finisher (RH). Refer to Removal and Installation - Center Lower Finisher (RH) (Passenger Van) .

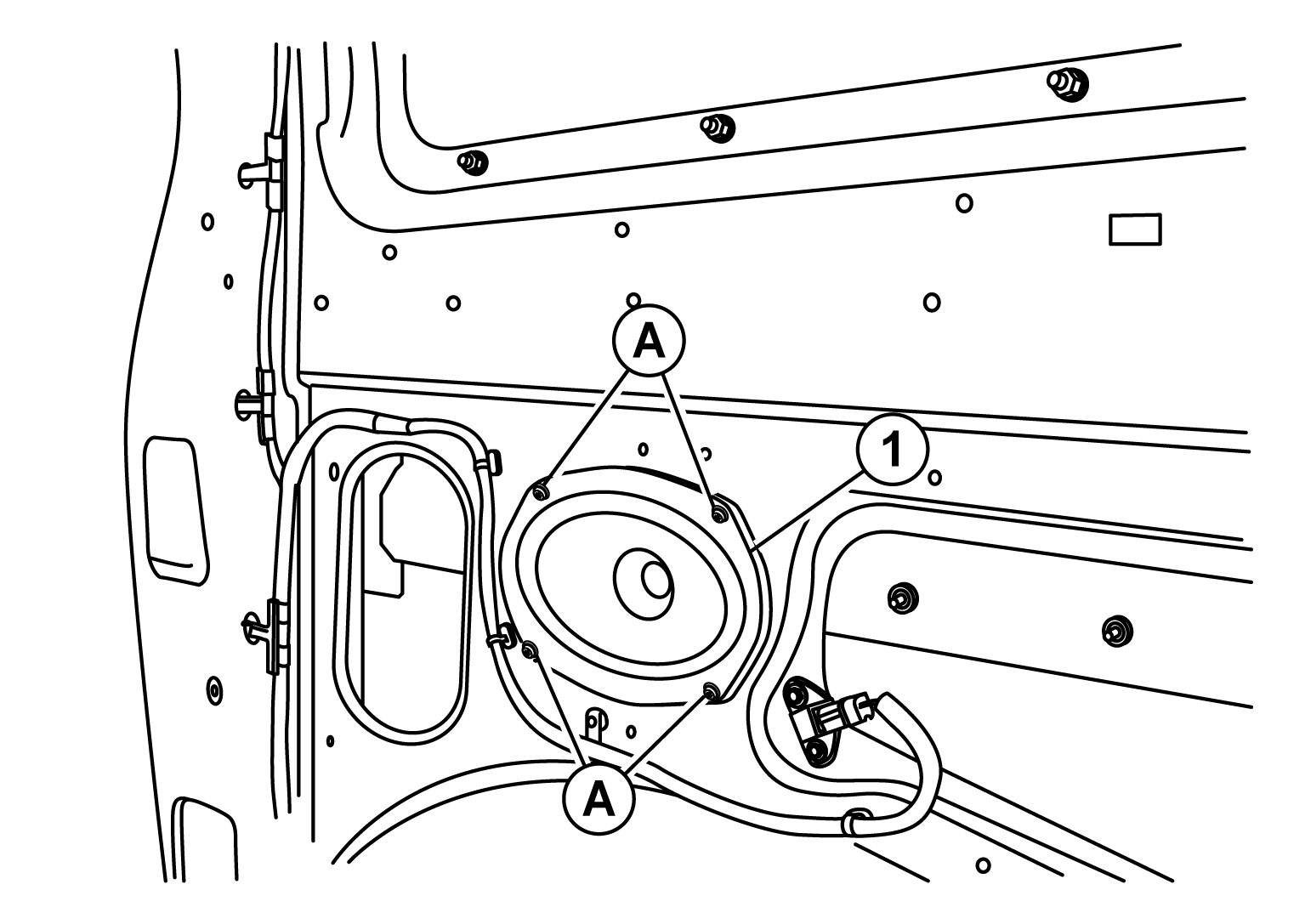

  4. Remove the rear speaker (RH) screws (A).
    GNSALNIA1322Z-322Courtesy of NISSAN NORTH AMERICA, INC.
  5. Reposition the rear speaker (RH) (1) to access harness connector.
  6. Disconnect the harness connector from the rear speaker (RH) and remove.

Installation

Installation is in the reverse order of removal.
