Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the AV control unit. Refer to Removal and Installation .

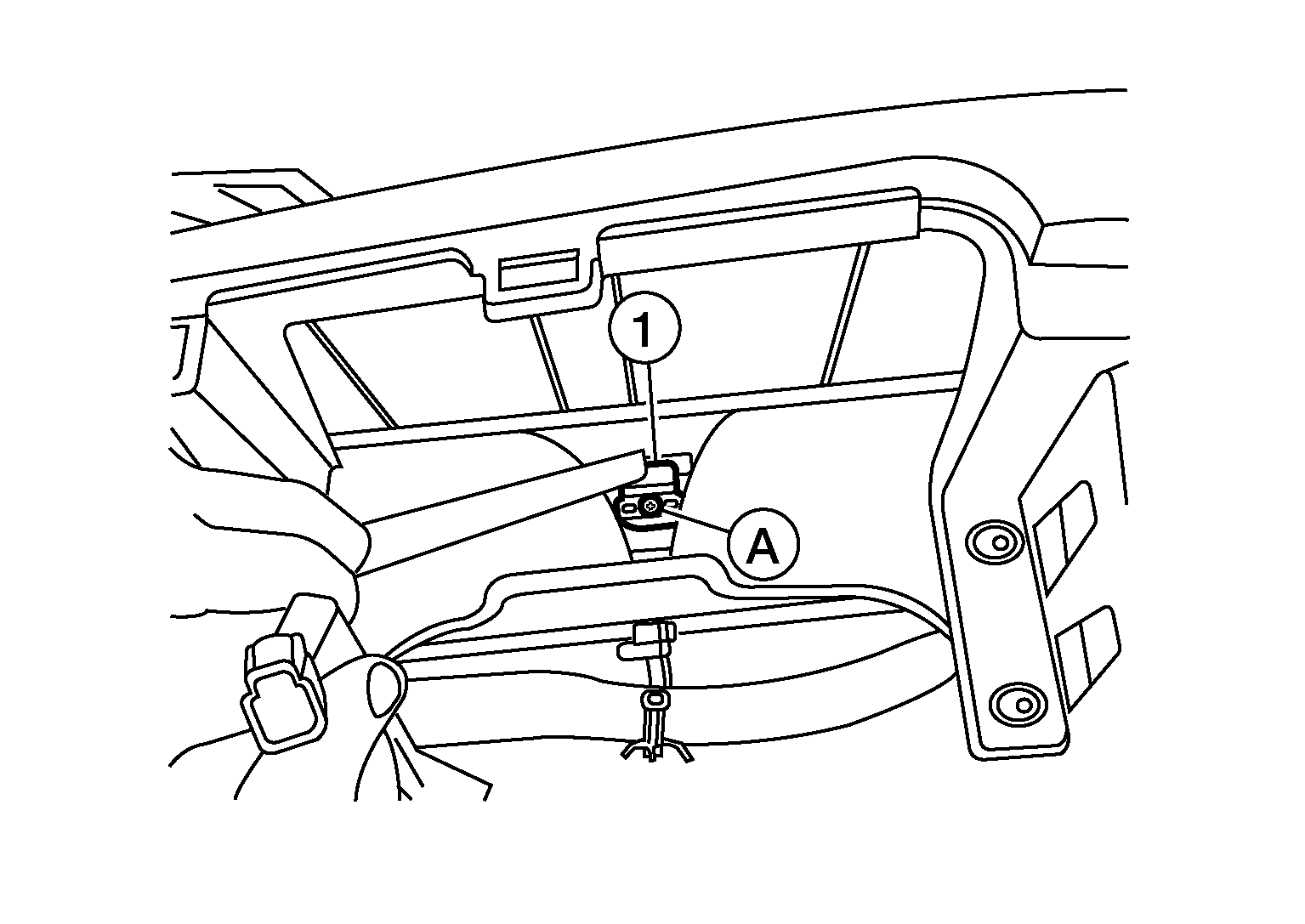

  2. Remove the GPS antenna screw (A) and the GPS antenna (1).
    GNSALNIA1277Z-277Courtesy of NISSAN NORTH AMERICA, INC.
