Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the ignition switch OFF.
- Before replacing AV control unit, perform "ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT" to save or print current vehicle specification. For details, refer to Description .
- Remove cluster lid C. Refer to Removal and Installation .

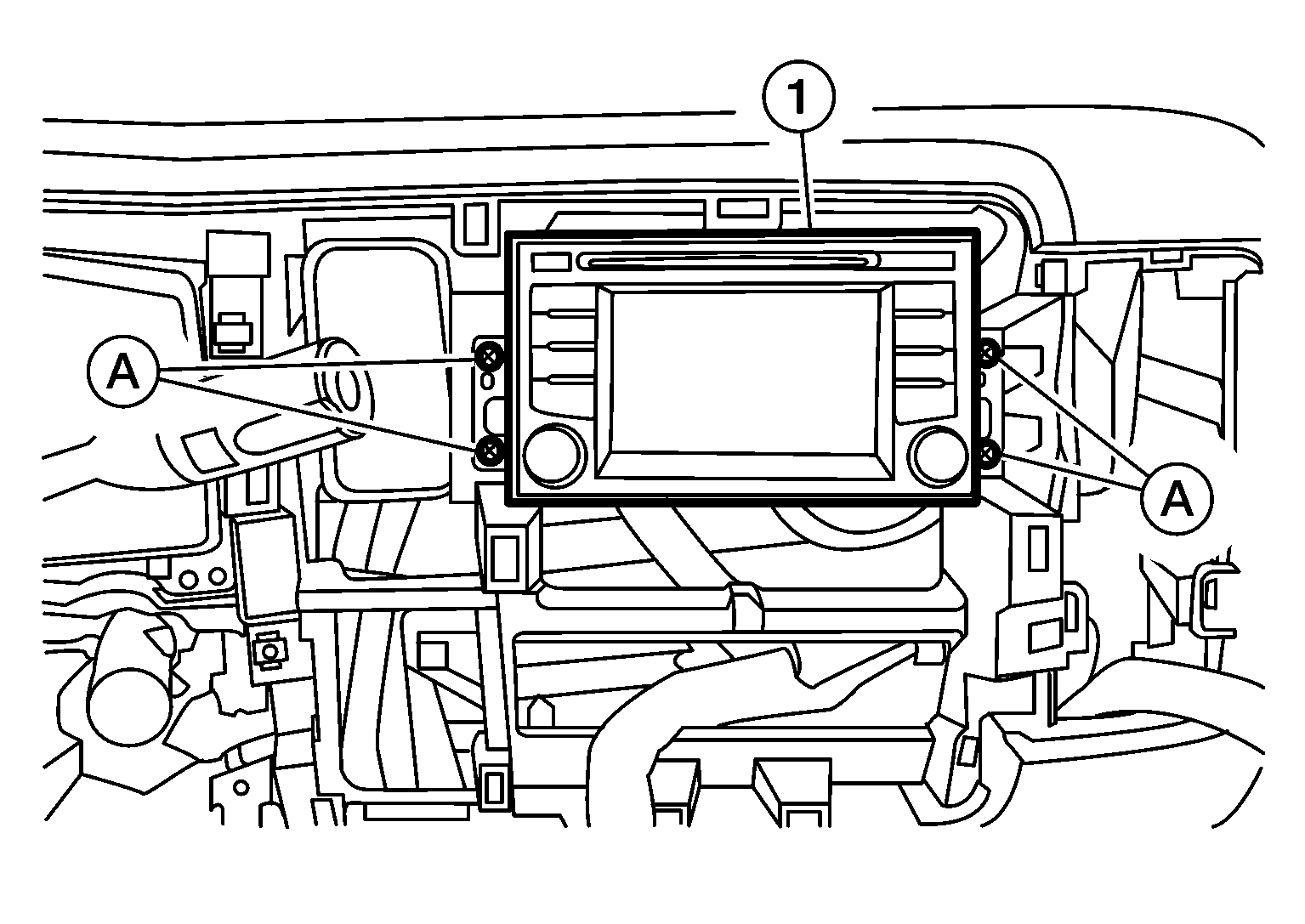

- Remove the AV control unit screws (A).
- Pull the AV control unit (1) out from the instrument panel and disconnect the harness connectors from AV control unit.CAUTION: The AV control unit and the front air control use the same 24-pin connector. Caution must be used to prevent misconnection. Colored tape has been added to the wiring harness to identify the connector.
- White = AV control unit
- Green = Front air control
- Remove the AV control unit (1) from the instrument panel.

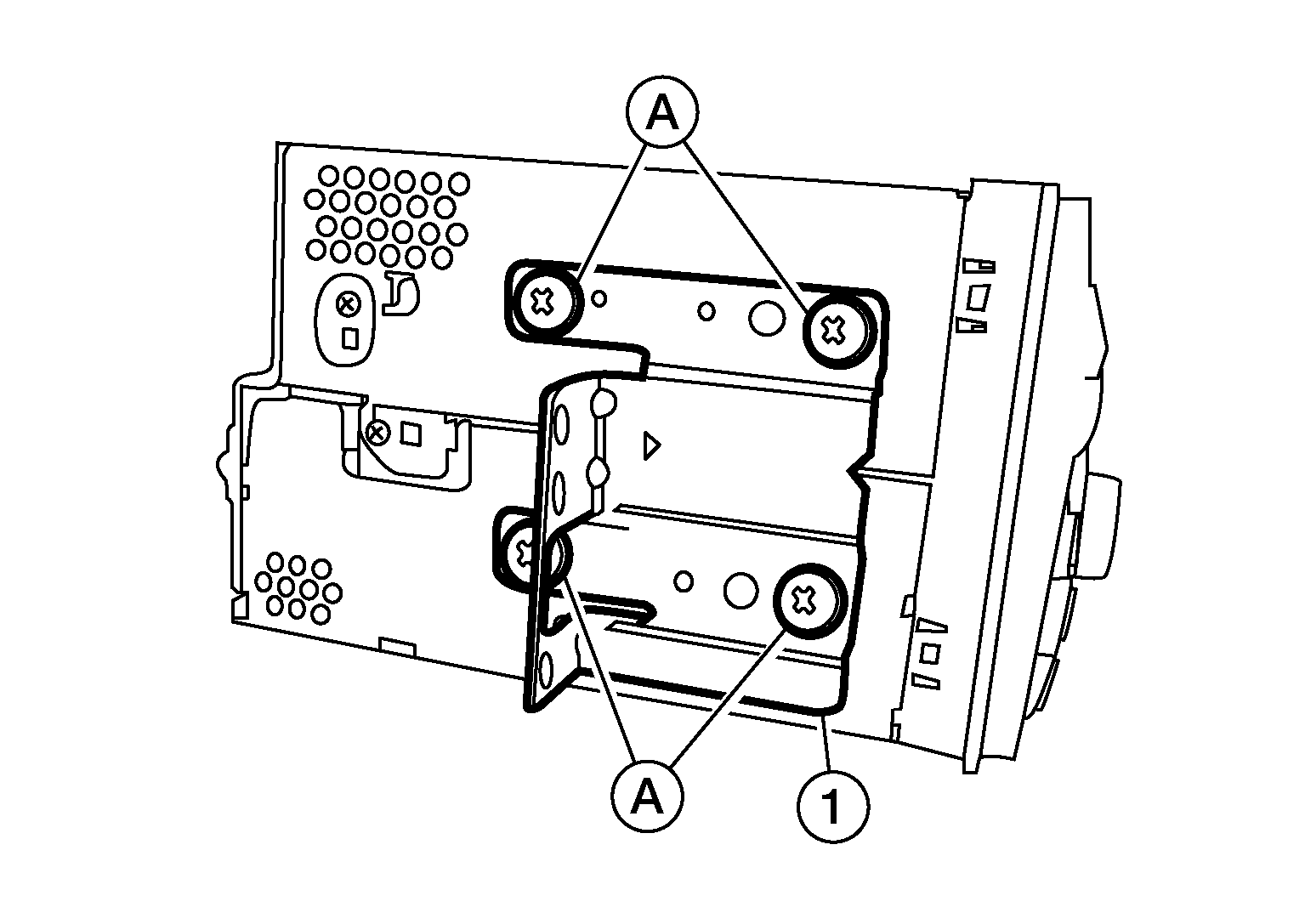

- Remove the AV control unit bracket screws (A) and the AV control unit bracket (1) from each side of the AV control unit.
