Location of Antenna

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

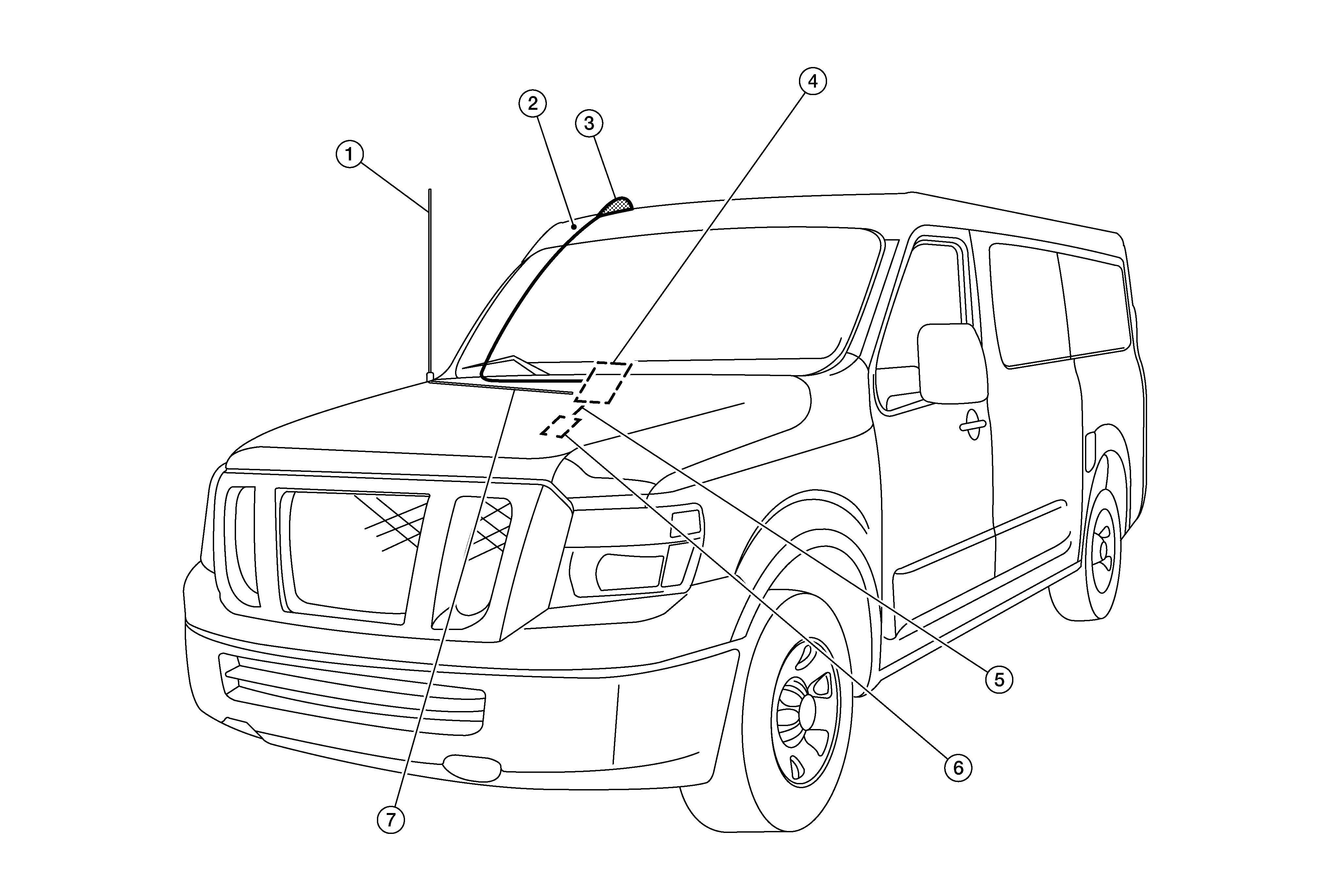

GNSAWNIA0035Z-035Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rod antenna

2.

Satellite antenna feeder

3.

Satellite antenna

4.

AV control unit

5.

GPS antenna feeder

6.

GPS antenna

7.

Rod antenna feeder
