Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

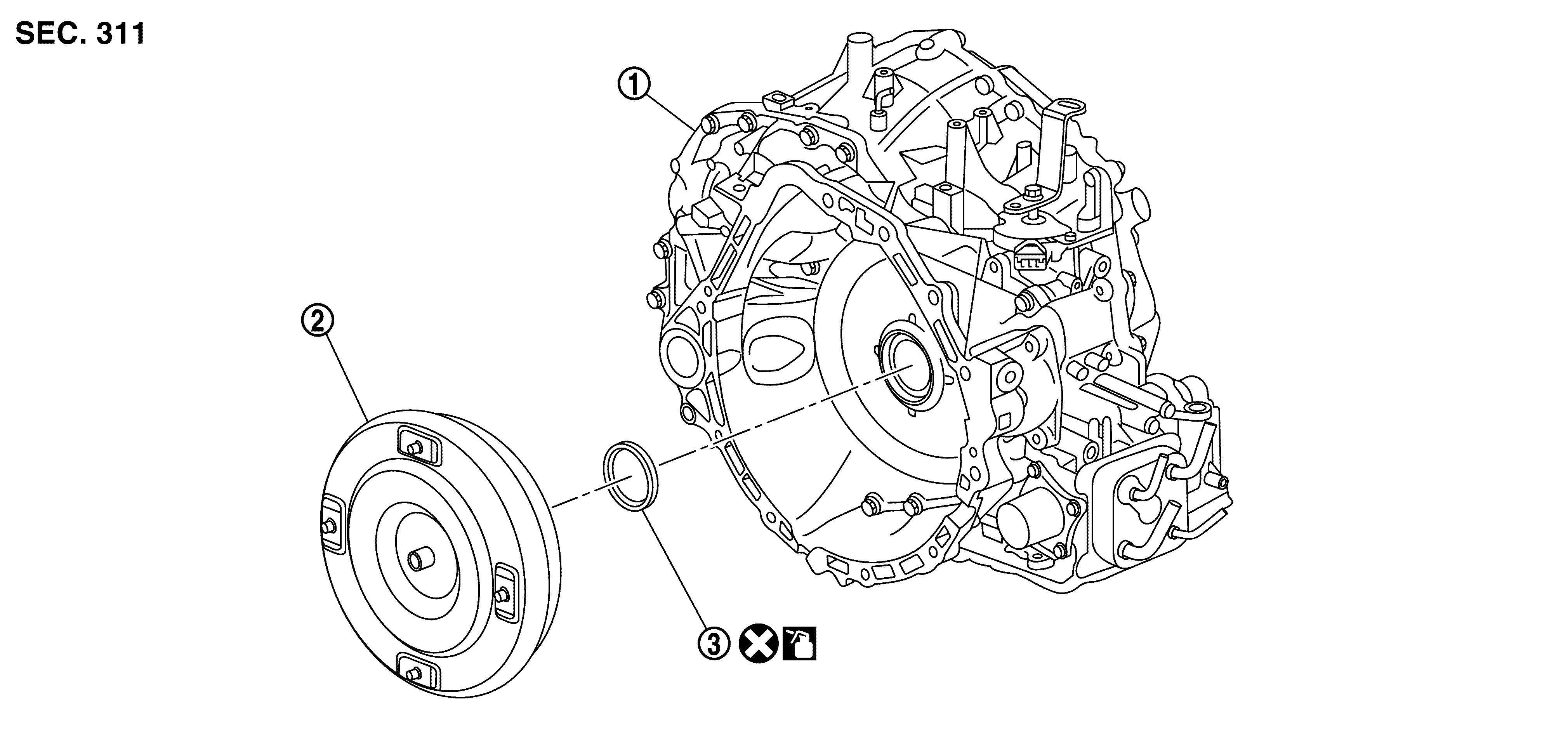

GNSJSDIA3623Z-623Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Transaxle assembly

SYMBOL

Torque converter

SYMBOL

Converter housing oil seal

SYMBOL

: Always replace after every disassembly.

SYMBOL

: Apply CVT Fluid
