Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Park the vehicle on a level surface.
  2. Remove the driver air bag module. Refer to Removal and Installation .
  3. Remove the steering wheel. Refer to Removal and Installation .
  4. Remove the column cover. Refer to Exploded View .

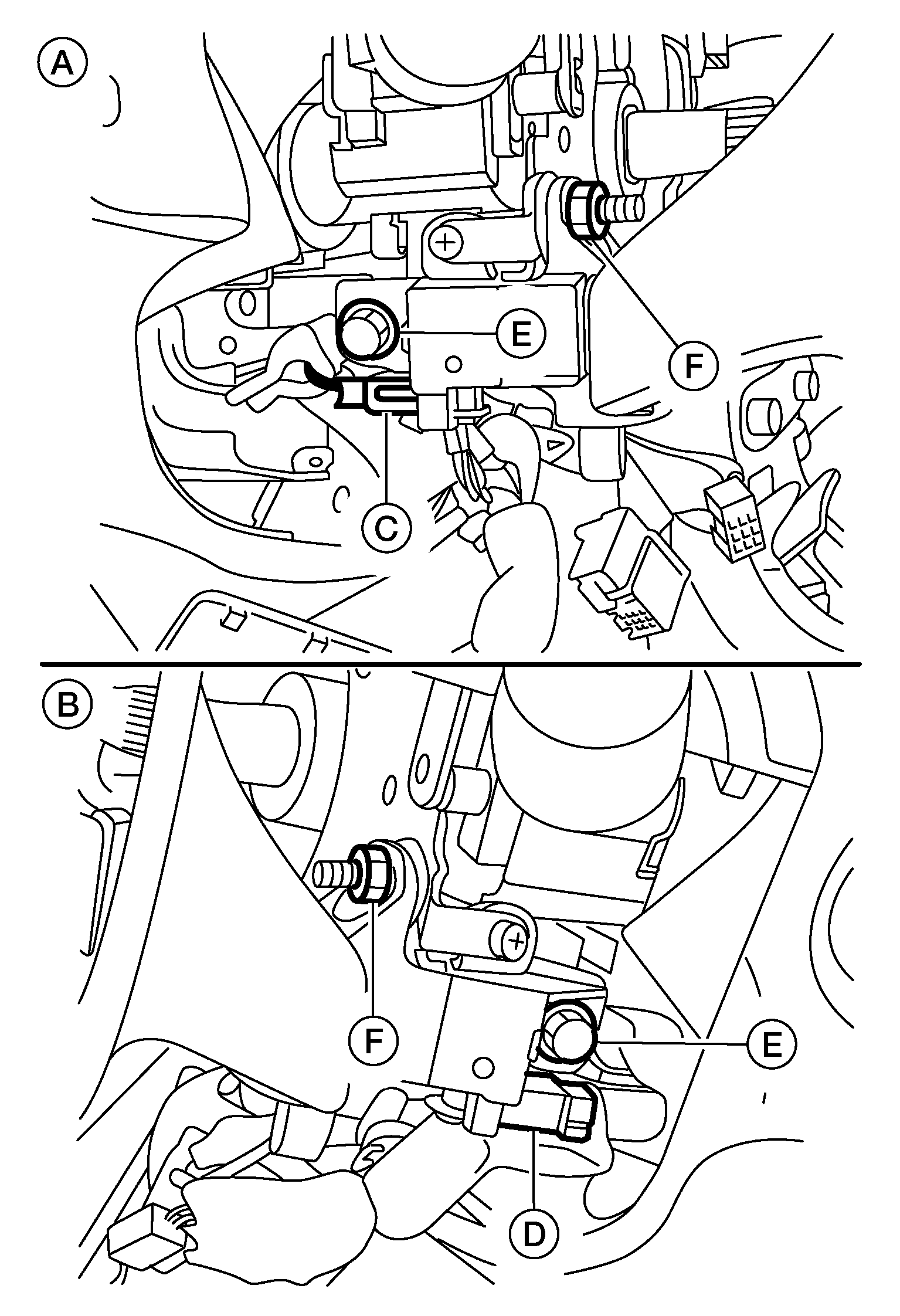

  5. Remove the vehicle harness connector (C) and (D) from paddle shifter.
    GNSDB115061Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : Side of paddle shifter (shift-down)

    (B)

    : Side of paddle shifter (shift-up)
  6. Remove the paddle shifter nuts and bolts (E) and nuts (F).
  7. Remove the paddle shifter from the steering column assembly.
