Section 46 (Automatic Transaxle (2 Of 2))
>>
Removal And Installation
>>
Input Speed Sensor
>>

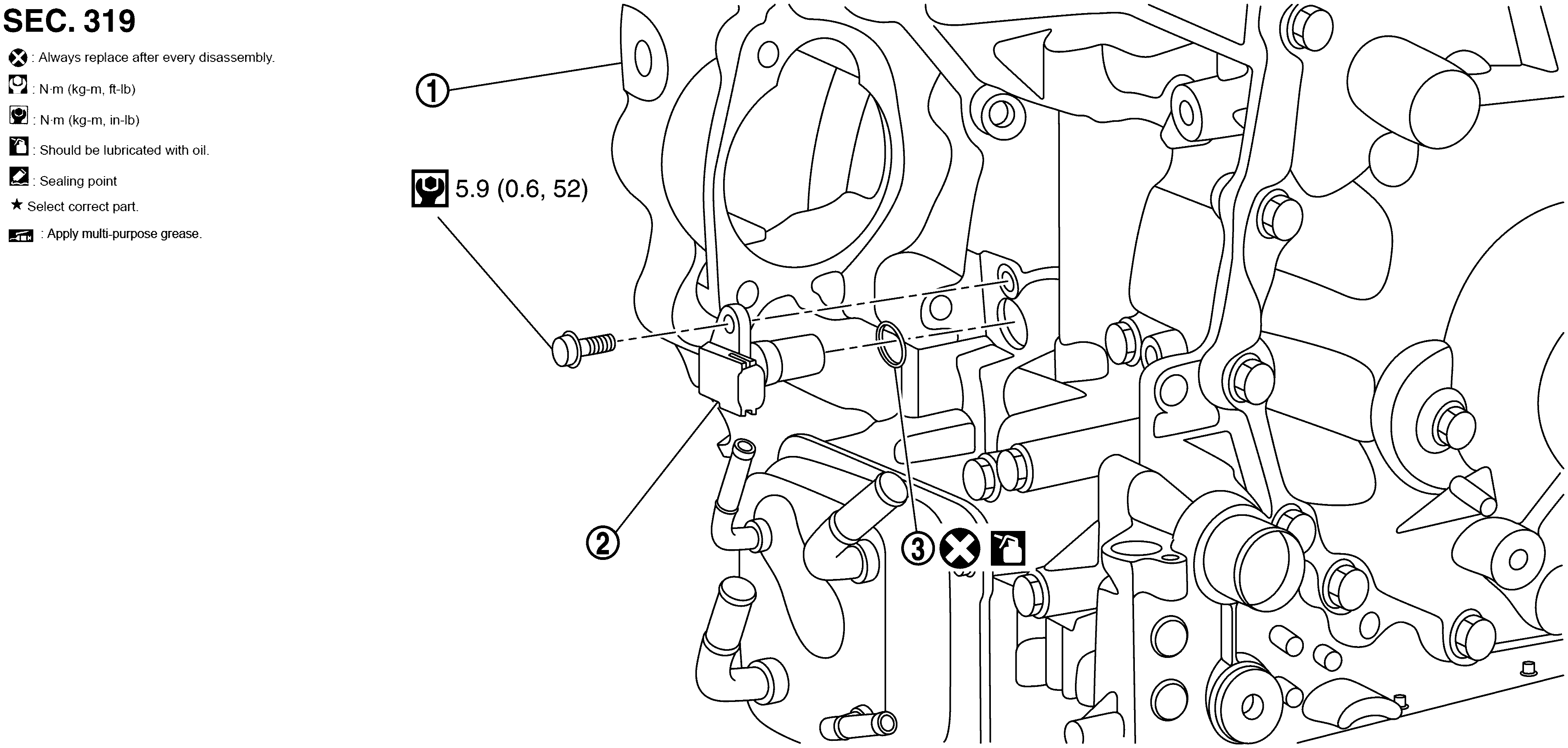

Exploded View
Exploded View
WARNING:
This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transaxle assembly
2.
Input speed sensor
3.
O-ring
