Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
  1. Remove front drive shaft. Refer to Removal and Installation (LH) or Removal and Installation (RH) .

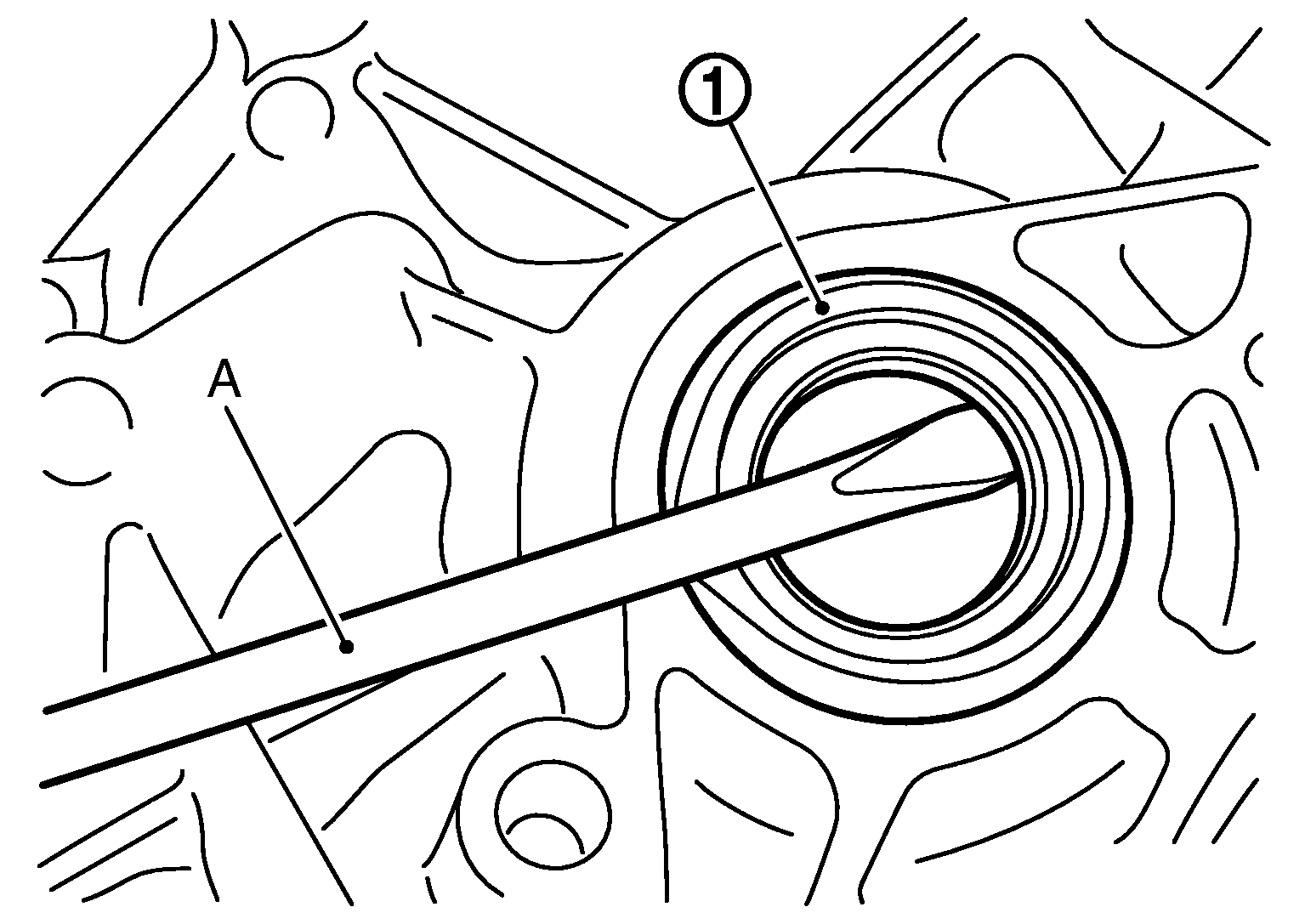

  2. Remove differential oil side seal (1) using suitable tool (A).
    GNSJPDIA0118Z-118Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to scratch transaxle case and converter housing.
