Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

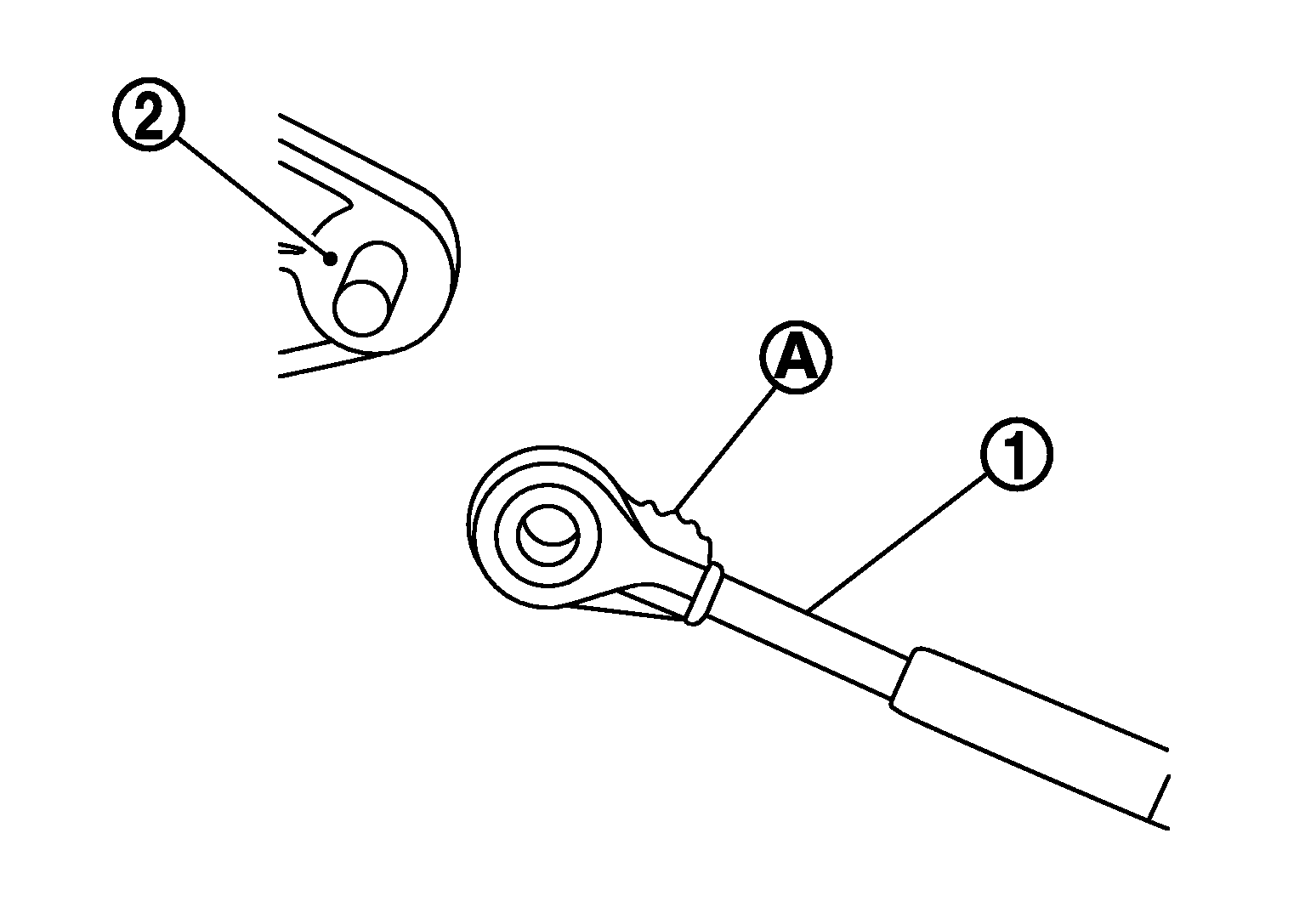

When installing control cable (1) to the CVT shift selector assembly (2), check that control cable is fully pressed in until it stops with the ribbed surface (A) facing upward.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Apply multi-purpose grease to control cable eye before installation.
Adjust control cable as necessary. Refer to Inspection and Adjustment .
