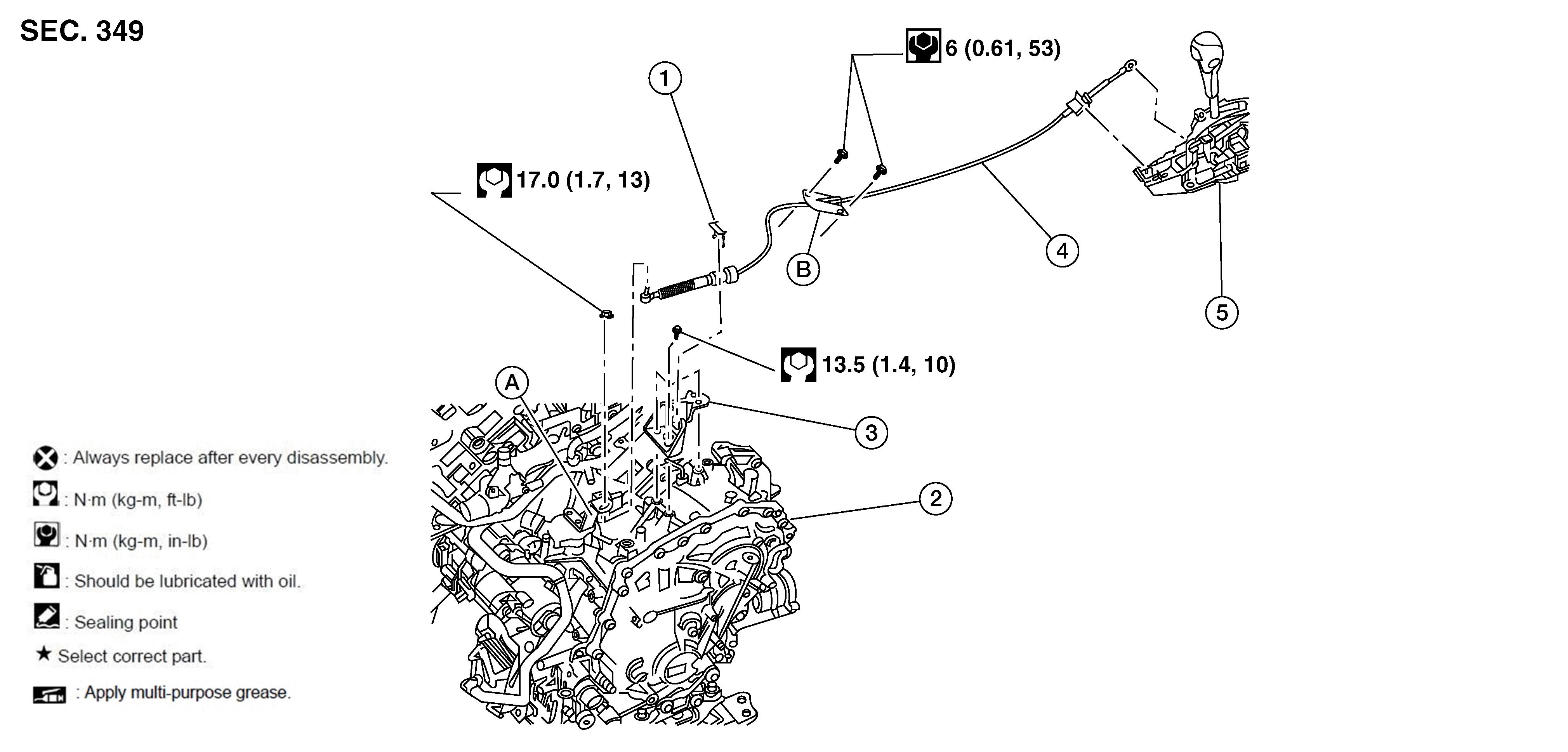

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Lock plate
|
2.
|
Transaxle assembly
|
3.
|
Bracket
|
|
4.
|
Control cable
|
5.
|
CVT shift selector assembly
|
A.
|
Manual lever
|
|
B.
|
Retainer grommet
|
