Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Note the following, and install in the reverse order of removal.
CAUTION:
Do not reuse hose clamps.

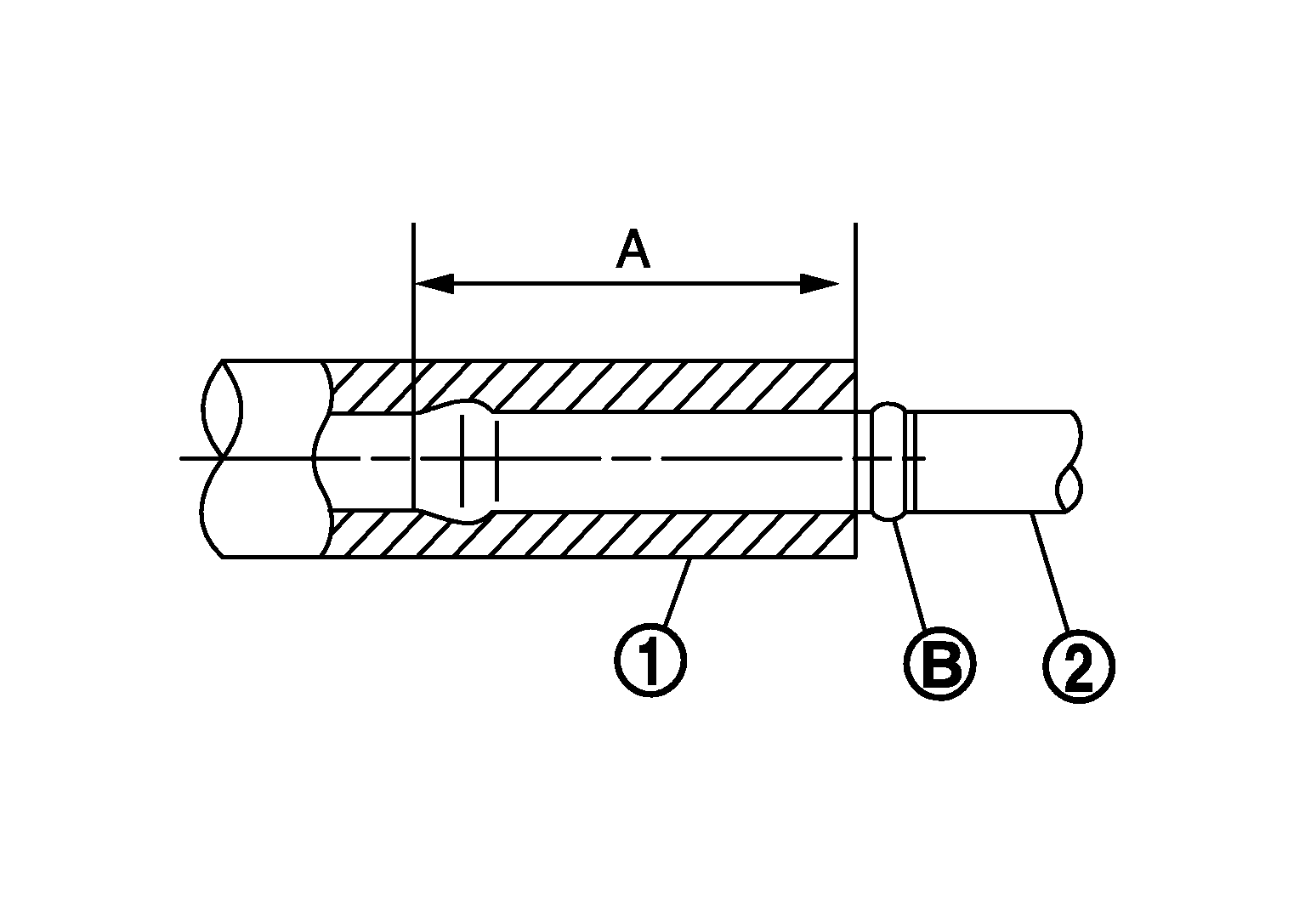

- Insert CVT water hose according to dimension (A) described below.
CVT water hose (1)
Insert side tube (2)
Dimension (A)
CVT water hose A
Water outlet
End reaches the spool portion (B)
CVT oil warmer
CVT water hose B
CVT oil warmer
Heater thermostat
CVT water hose C
Heater thermostat
Water outlet
- Install hose clamps (1) at the both ends of CVT water hose (2) with dimension (A) from the hose end.
Dimension (A)
: 5 - 7 mm (0.20 - 0.28 in)
- Hose clamp should not interfere with the bulge.
|
CVT water hose |
Hose end |
Paint mark |
Position of hose clamp |
|
CVT water hose A |
Water outlet side |
Facing Upward |
A |
|
CVT oil warmer side |
Facing to the front of the vehicle |
C |
|
|
CVT water hose B |
CVT oil warmer side |
Facing to the front of the vehicle |
B |
|
Heater thermostat side |
N/A |
A |
|
|
CVT water hose C |
Heater thermostat side |
N/A |
A |
|
Water outlet side |
Facing upward |
C |

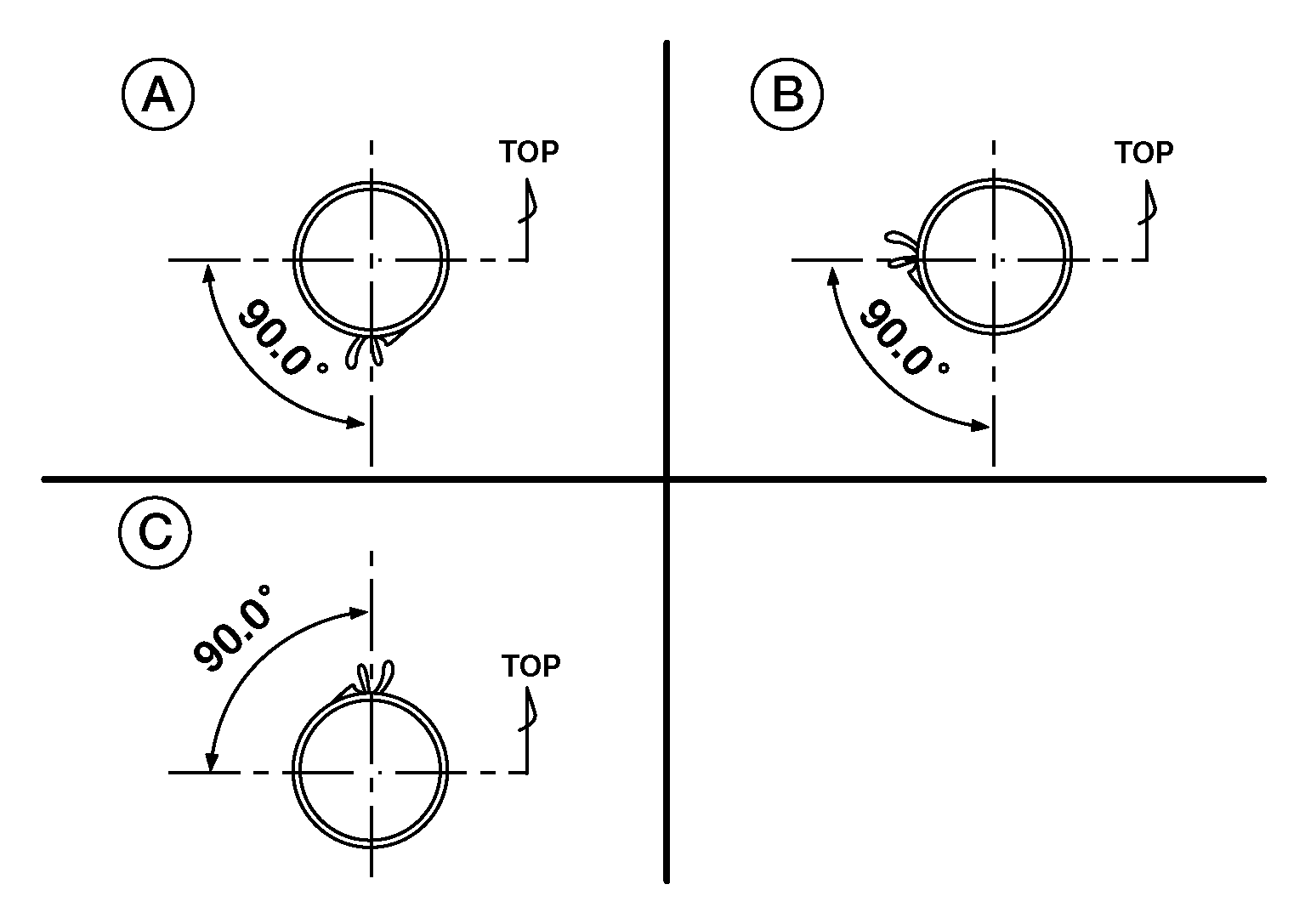

*: Refer to the illustrations for the specific position of each hose clamp tab.
