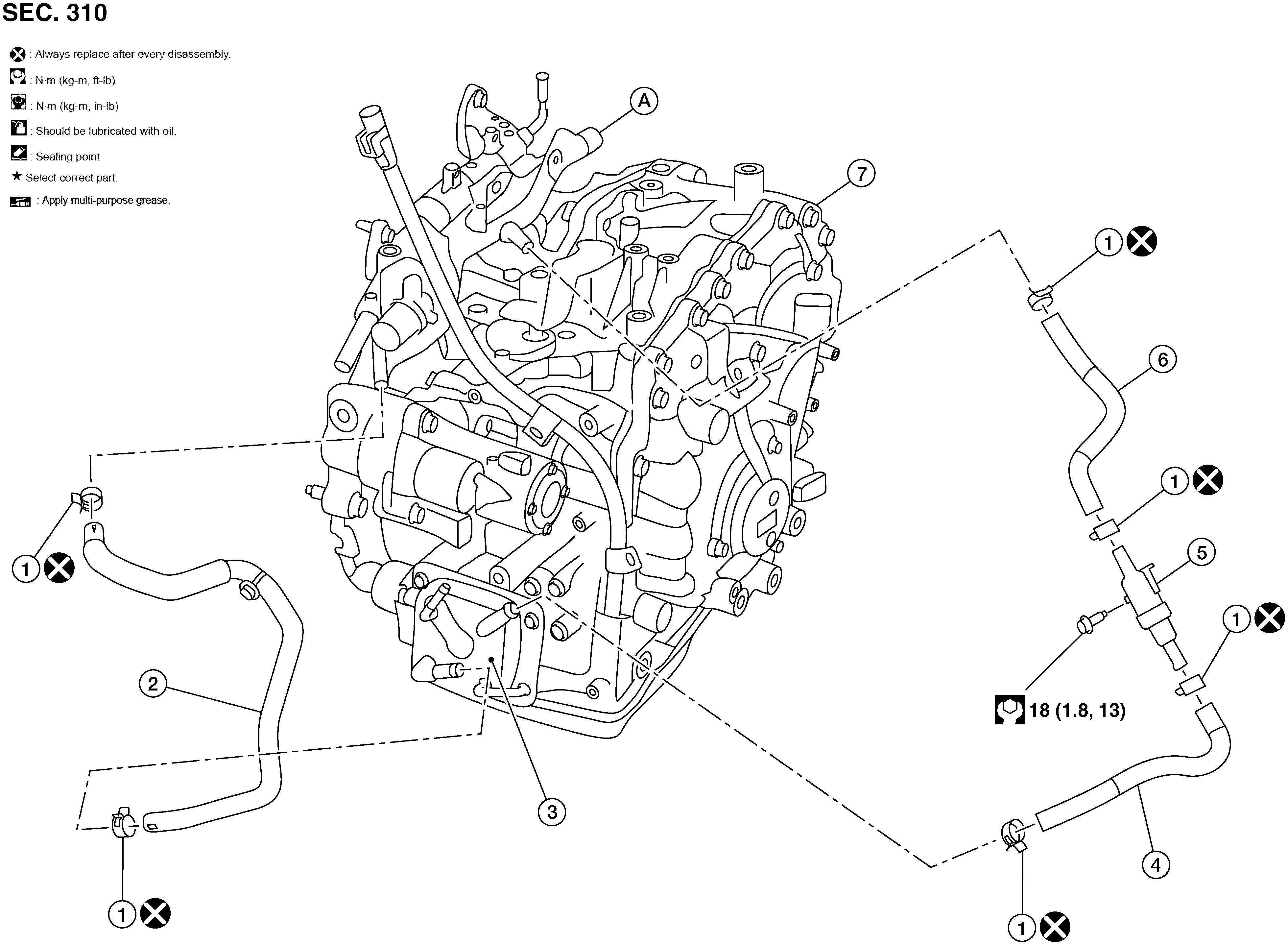

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Hose clamp
|
2.
|
CVT water hose A
|
3.
|
CVT oil warmer
|
|
4.
|
CVT water hose B
|
5.
|
Heater thermostat
|
6.
|
CVT water hose C
|
|
7.
|
Transaxle assembly
|
|
A.
|
Water outlet
|
