Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION: Do not reuse hose clamps.

Insert CVT fluid cooler hoses according to dimension (A).

Courtesy of NISSAN NORTH AMERICA, INC.

CVT fluid cooler hose (1)	Insert side tube (2)	Dimension (A)
CVT fluid cooler hose A	Radiator tube	End reaches the 2-stage bulge (B)
	CVT oil warmer
CVT fluid cooler hose B	CVT oil warmer
	Radiator tube

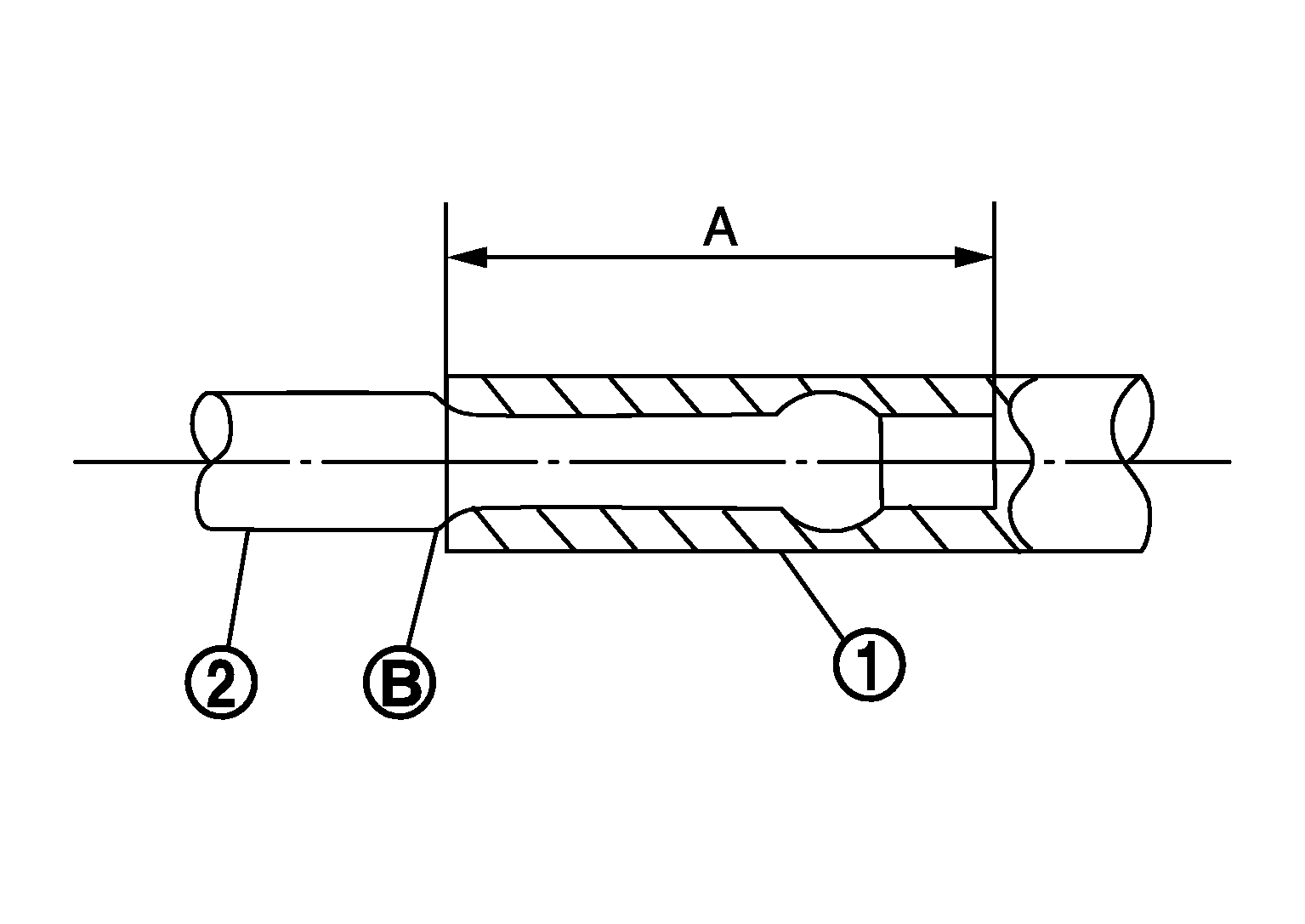

Install hose clamps (1) at both ends of CVT fluid cooler hoses (2) with dimension (A) from the hose end.

Courtesy of NISSAN NORTH AMERICA, INC.

Dimension (A)

: 5 - 7 mm (0.20 - 0.28 in)

Hose clamp should not interfere with the bulge.

CVT fluid cooler hose	Hose end	Paint mark	Position of hose clamp
CVT fluid cooler hose A	Radiator tube side	Facing upward	B
CVT fluid cooler hose A	CVT oil warmer side	Facing to the right of the vehicle	B
CVT fluid cooler hose B	CVT oil warmer side	Facing downward	A
CVT fluid cooler hose B	Radiator tube side	Facing to the front of the vehicle	B

*: Refer to the illustrations for the specific position of each hose clamp tab.

The illustrations indicate the view from the hose ends.

Courtesy of NISSAN NORTH AMERICA, INC.

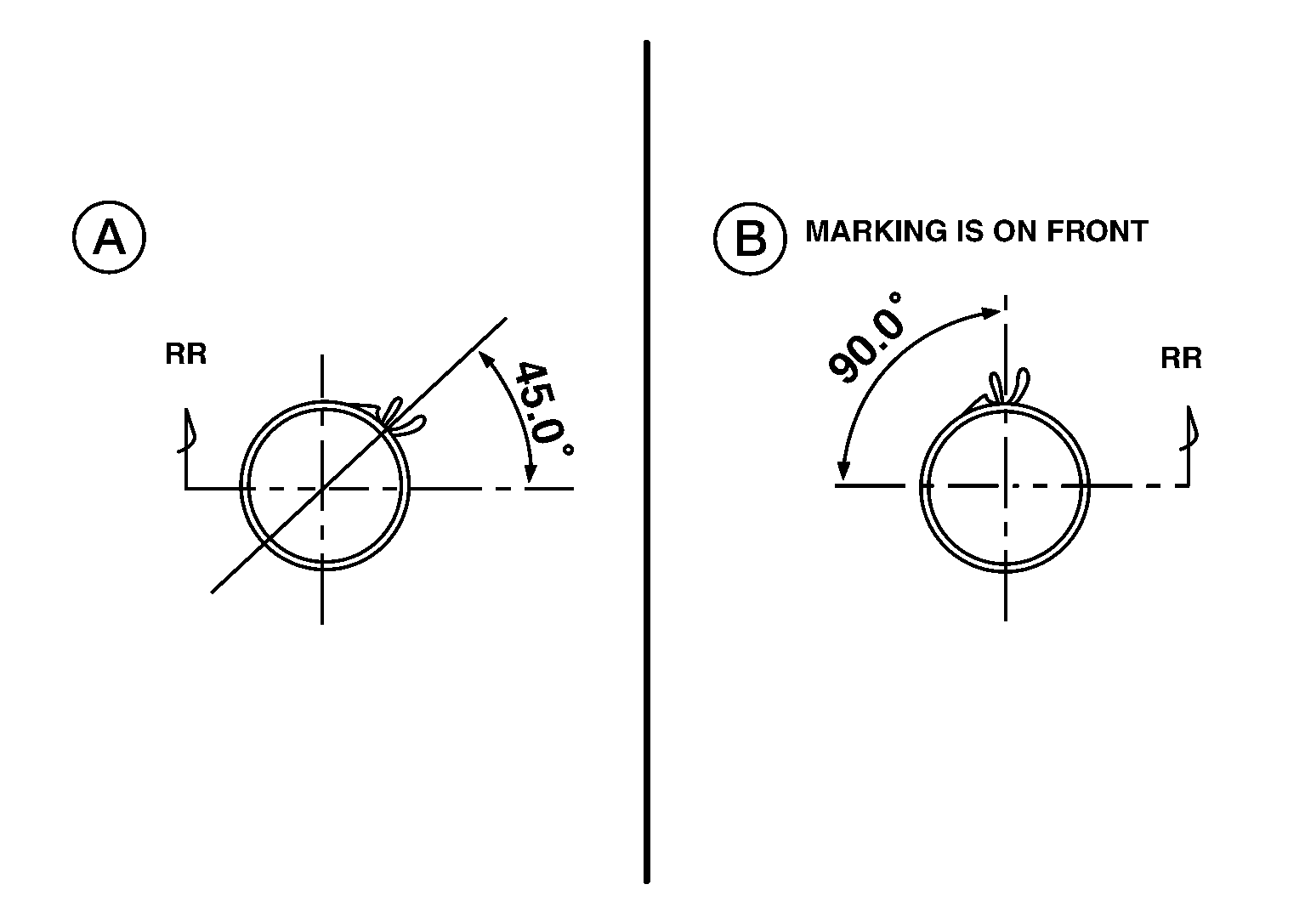

When installing hose clamps the center line of each clamp tab should be positioned as shown, above.
