Component Parts Location - Late Production
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

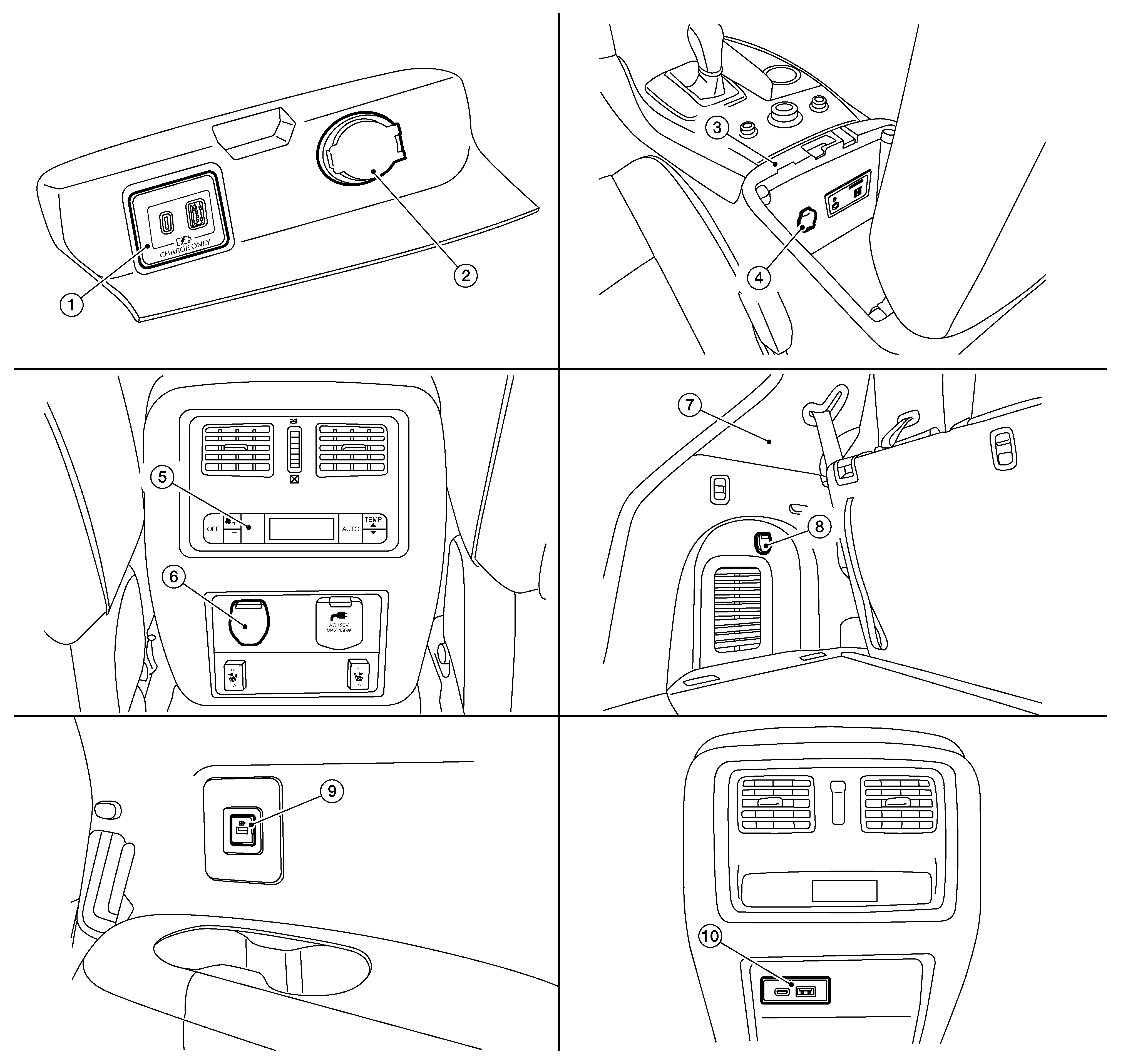

1. |
Front USB charge port |
2. |
Front power socket (for cigarette lighter) |
3. |
Center console |
|
4. |
Front console power socket |
5. |
Rear air control |
6. |
Rear console power socket (if equipped) |
|
7. |
Luggage side finisher lower LH |
8. |
Rear cargo power socket |
9. |
USB charge port RH (RH shown, LH similar) (if equipped) |
|
10. |
Rear USB charge port (if equipped) |
