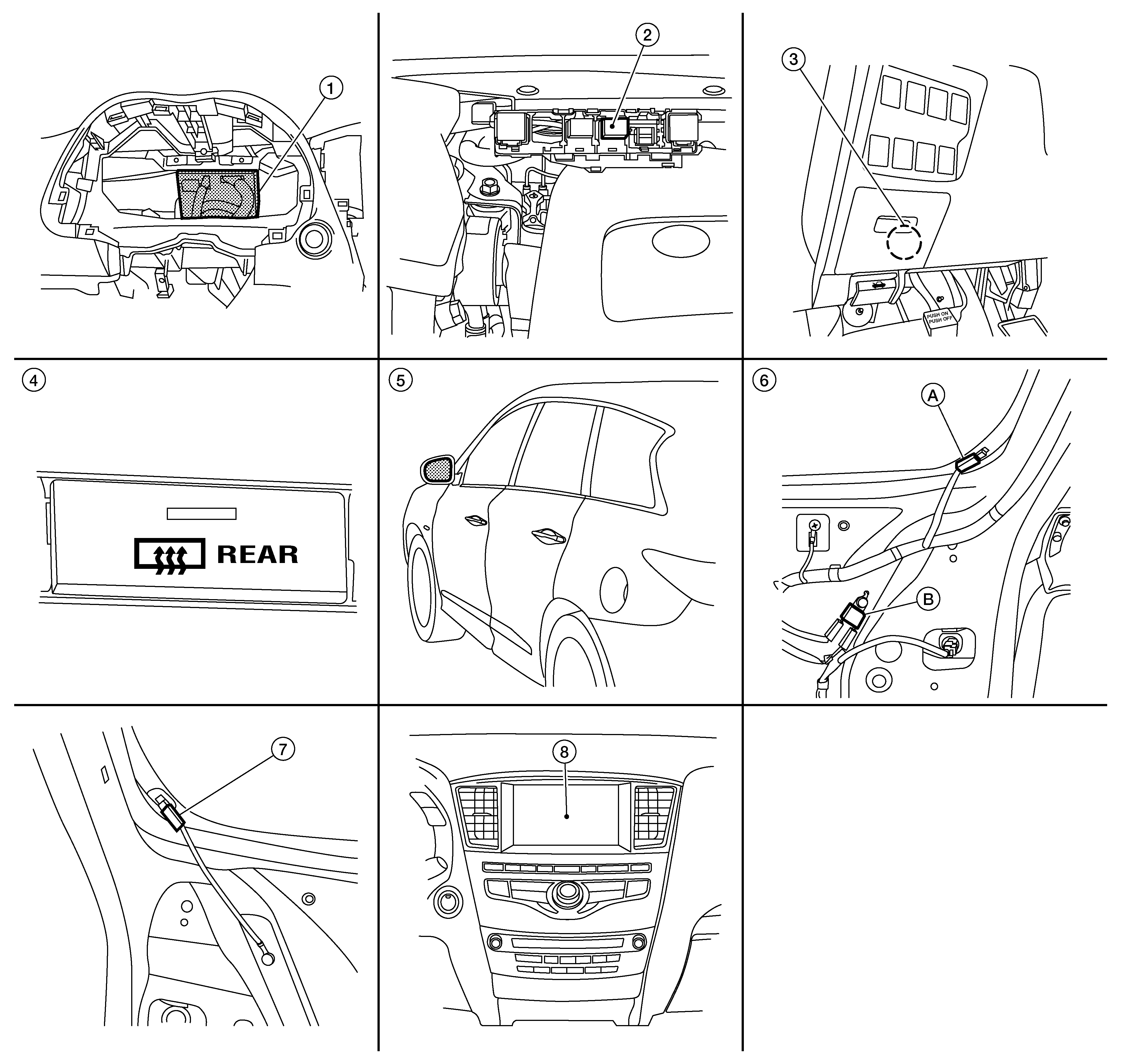

Component Parts Location
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
BCM (view with combination meter removed) |
2. |
Accessory relay-2 |
3. |
Fuse block (J/B) (Rear window defogger relay) |
|
4. |
Multifunction switch (rear window defogger switch) |
5. |
Door mirror LH (door mirror defogger) (RH similar) |
6. |
A. Rear window defogger power connector B. Rear window defogger condenser (view with back door finisher removed) |
|
7. |
Rear window defogger ground connector (view with back door finisher removed) |
8. |
Display control unit |
