Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the AV control unit. Refer to Removal and Installation .
  2. Remove the screw (A) from the bracket of the automatic drive positioner control unit (1).
    GNSDB114715Courtesy of NISSAN NORTH AMERICA, INC.

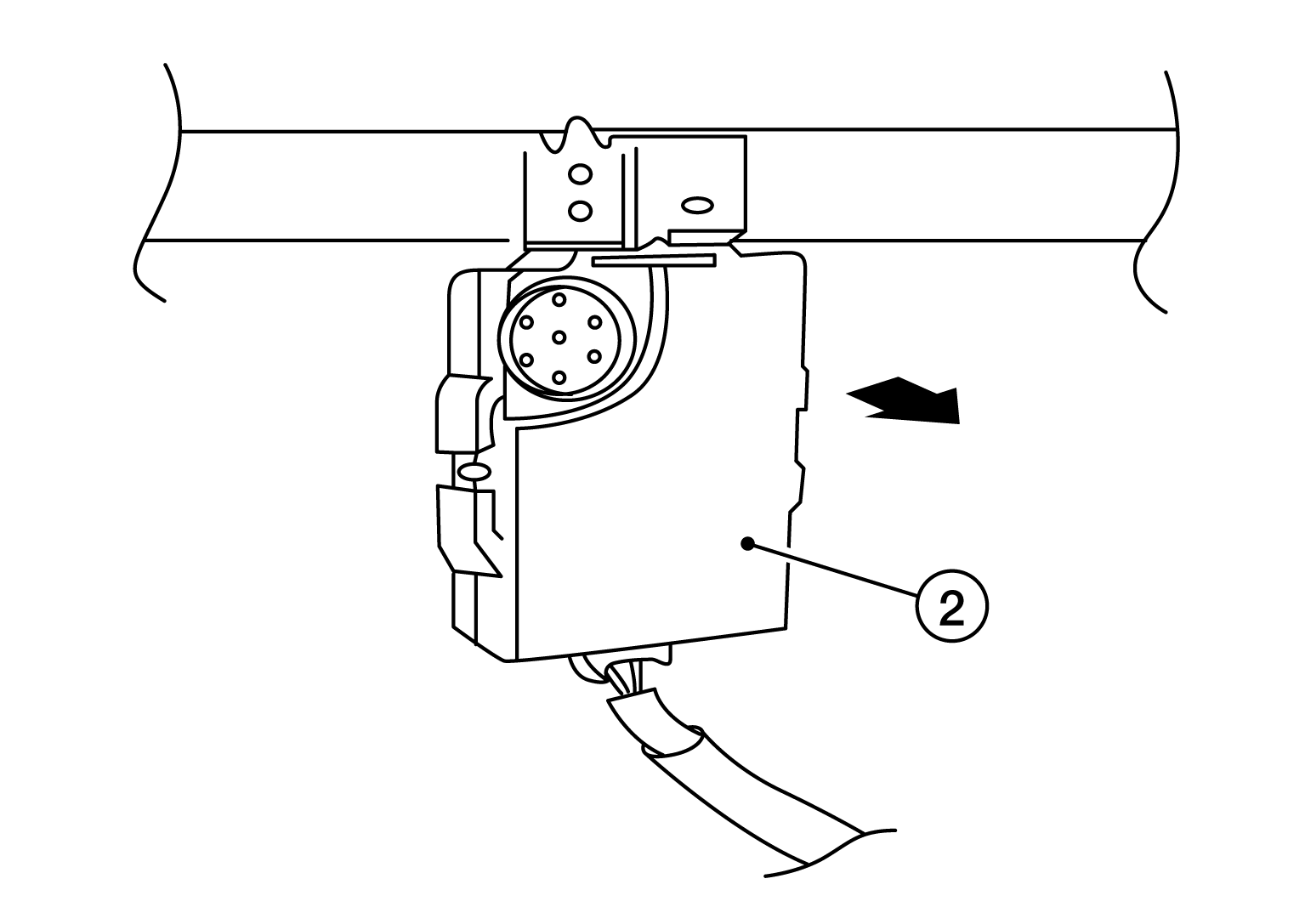

  3. Position the automatic drive positioner control unit aside and remove the CAN gateway (2) from the bracket by sliding it as shown below.
    GNSDB124567Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connector from the CAN gateway and remove the CAN gateway.
