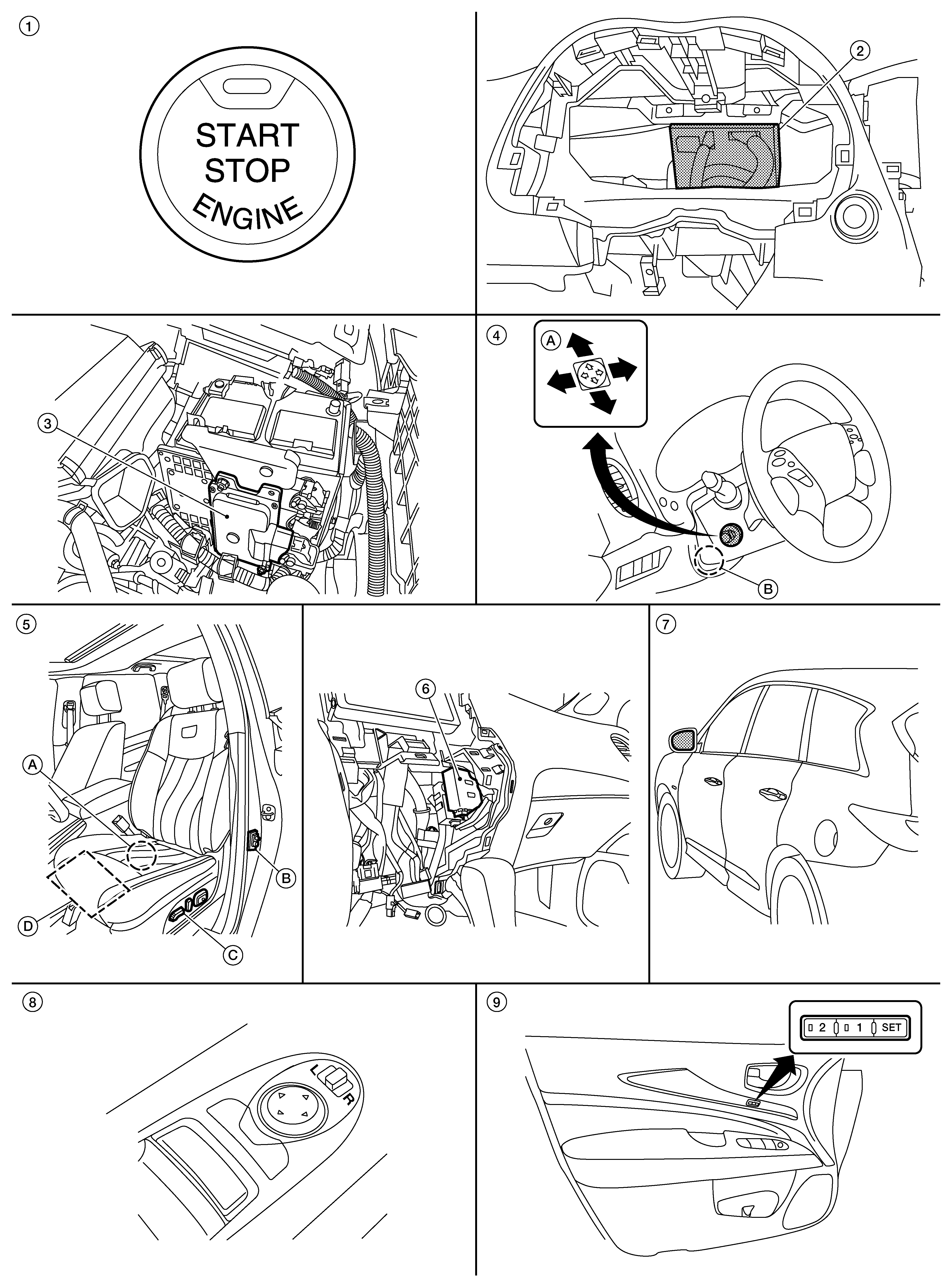

Component Parts Location
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Push-button ignition switch |
2. |
BCM (view with combination meter removed) |
3. |
TCM |
|
4. |
A. ADP steering switch B. Tilt motor, telescopic motor |
5. |
A. Driver seat control unit B. Front door switch LH C. Power seat switch LH D. Sliding motor LH, reclining motor LH, lifting motor LH (front/rear) |
6. |
Automatic drive positioner control unit (view with AV control unit removed) |
|
7. |
Door mirror LH (RH similar) |
8. |
Power mirror remote control switch |
9. |
Seat memory switch |
