Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove seat cushion outer finisher LH (2). Refer to Seat Cushion .

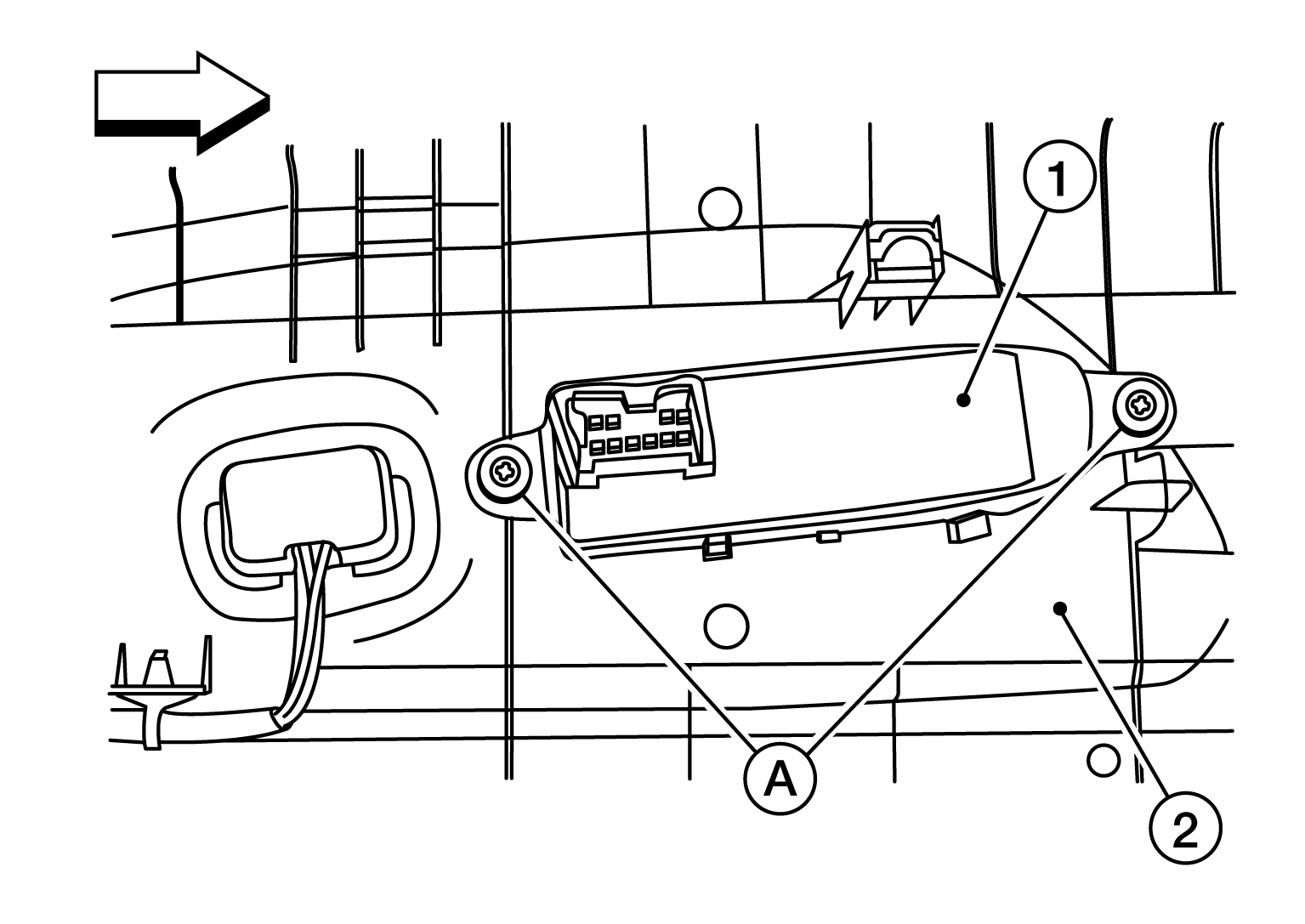

    GNSDB117467Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  2. Remove the power seat switch screws (A).
  3. Remove power seat switch (1) from seat cushion outer finisher LH (2).
