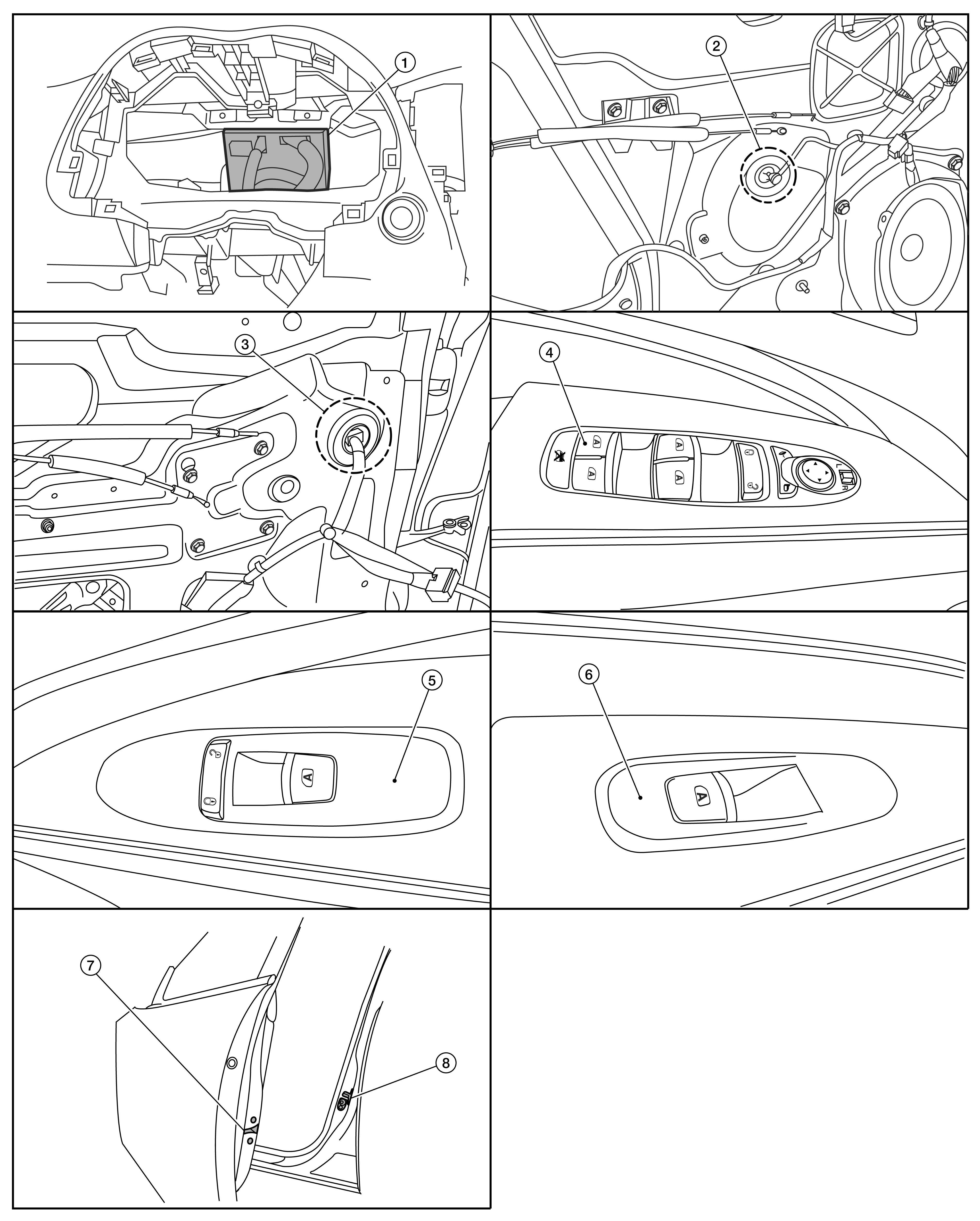

Component Parts Location - Early Production
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
BCM (view with the combination meter removed) |
2. |
Front power window motor LH (RH similar) |
3. |
Rear power window motor LH (RH similar) |
|
4. |
Main power window and door lock/unlock switch |
5. |
Power window and door lock\unlock switch RH |
6. |
Rear power window switch LH (RH similar) |
|
7. |
Front door lock assembly LH (key cylinder switch) |
8. |
Front door switch LH (RH similar) |
