Display And Warning

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Setting Display

System status	Condition	Display on combination meter	Display on combination meter	FEB warning lamp	Buzzer
System status	Condition	Upper part	Middle part	FEB warning lamp	Buzzer

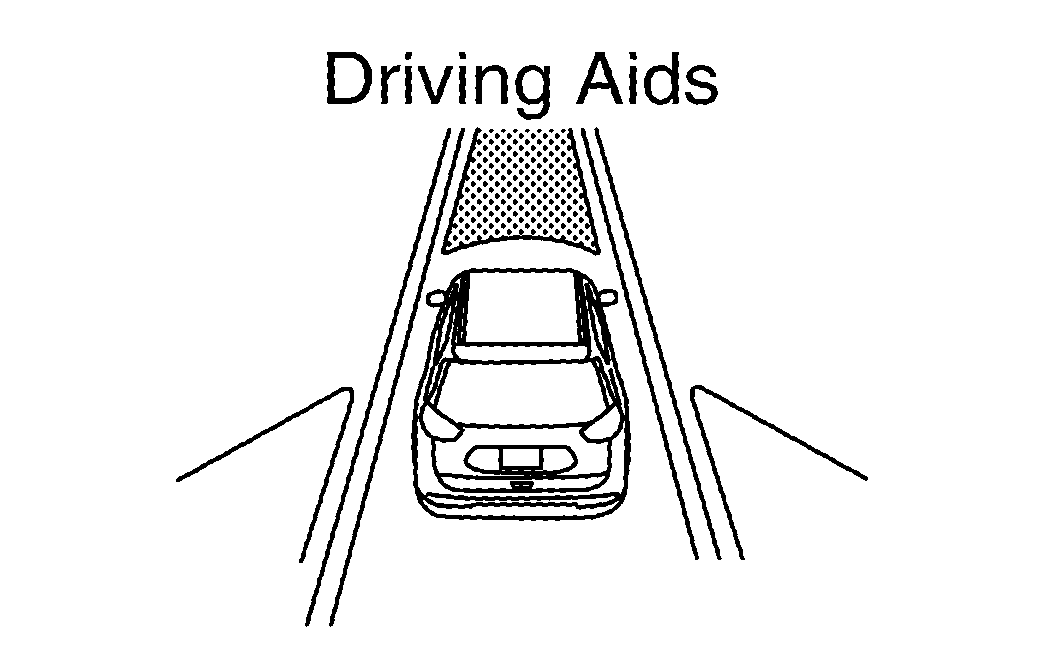

FEB OFF	--	--	Courtesy of NISSAN NORTH AMERICA, INC.		--

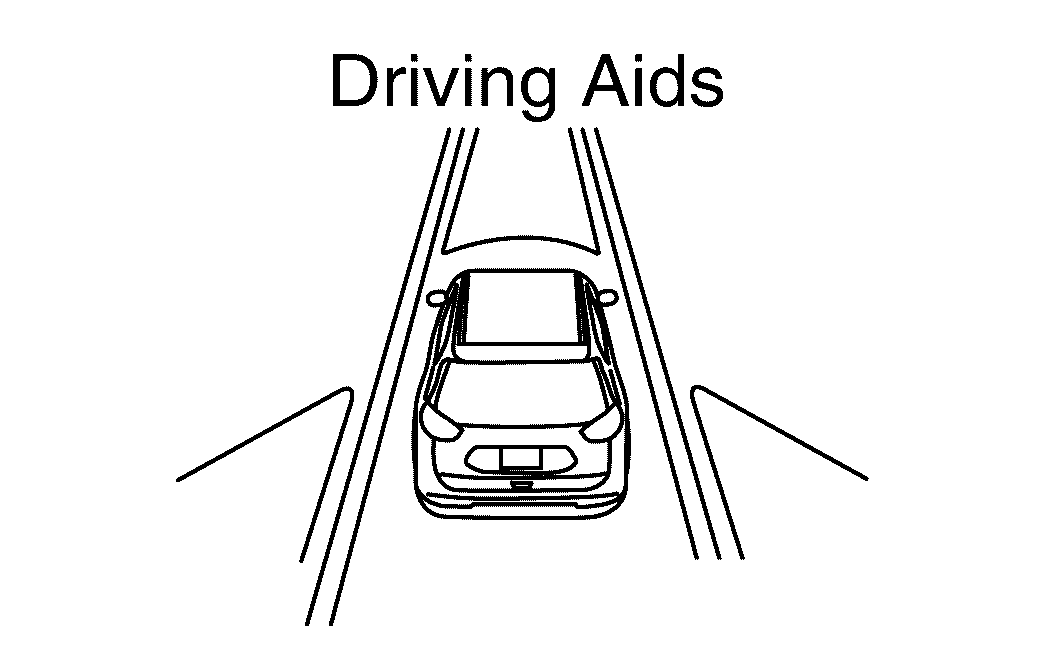

FEB ON	System ON	--	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF	--

Warning Operation

System status	Action	Display on combination meter	Display on combination meter	FEB warning lamp	Buzzer
System status	Action	Upper part	Middle part	FEB warning lamp	Buzzer

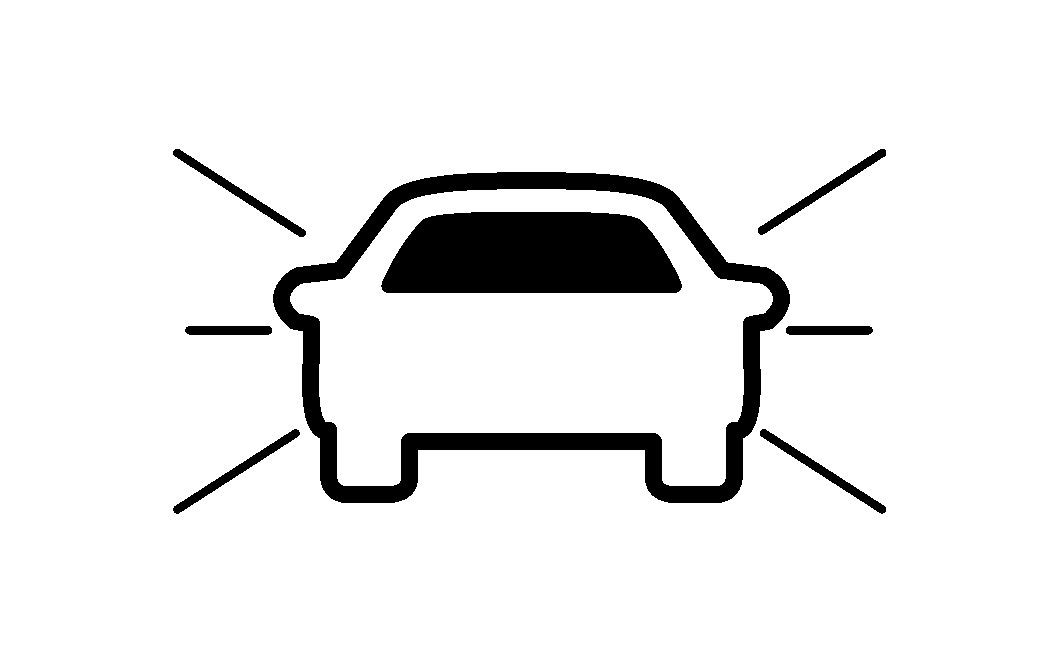

There is a possibility of a collision with the vehicle ahead	Partial brake	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Courtesy of NISSAN NORTH AMERICA, INC.		Short continuous beeps

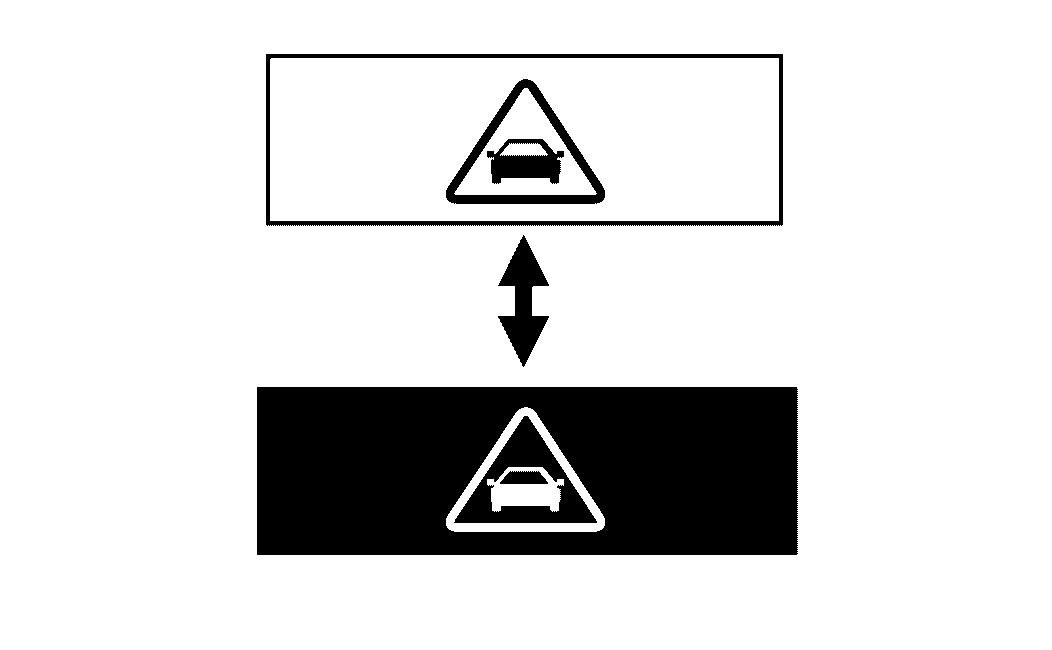

An obstacle ahead is avoided due to the system applying braking.	Harder brake	Red<=>White Courtesy of NISSAN NORTH AMERICA, INC.	Courtesy of NISSAN NORTH AMERICA, INC.		Continuous beeps

Warning Display

System status	Condition	Display on combination meter	Display on combination meter	FEB warning lamp	Master warning lamp	Buzzer
System status	Condition	Upper part	Middle part	FEB warning lamp	Master warning lamp	Buzzer

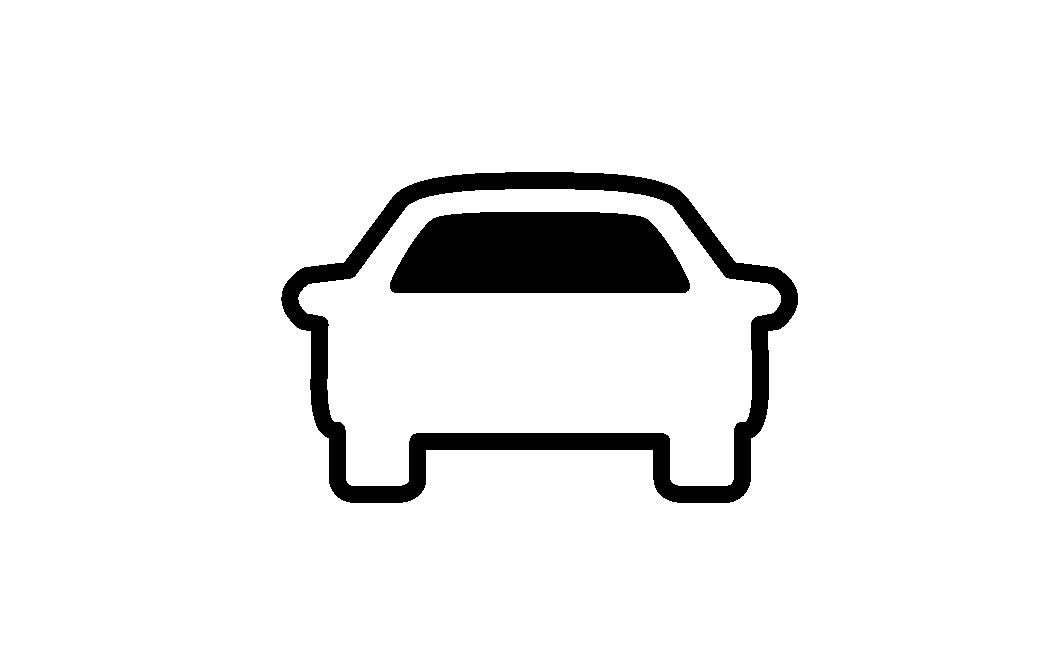

FEB system malfunction	The FEB system is automatically canceled.^*	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Courtesy of NISSAN NORTH AMERICA, INC.		Yellow	Beep
Dirt around the distance sensor	The FEB system is automatically canceled.^*	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Courtesy of NISSAN NORTH AMERICA, INC.		Yellow	Beep

NOTE: *: The system operates if the ignition switch is turned OFF=>ON after the condition improves
