Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION:

Do not reuse the side oil seal.
Do not reuse the cotter pin.
Do not use a power tool to tighten the wheel hub lock nut.

Install the side oil seal. Refer to OIL SEAL .

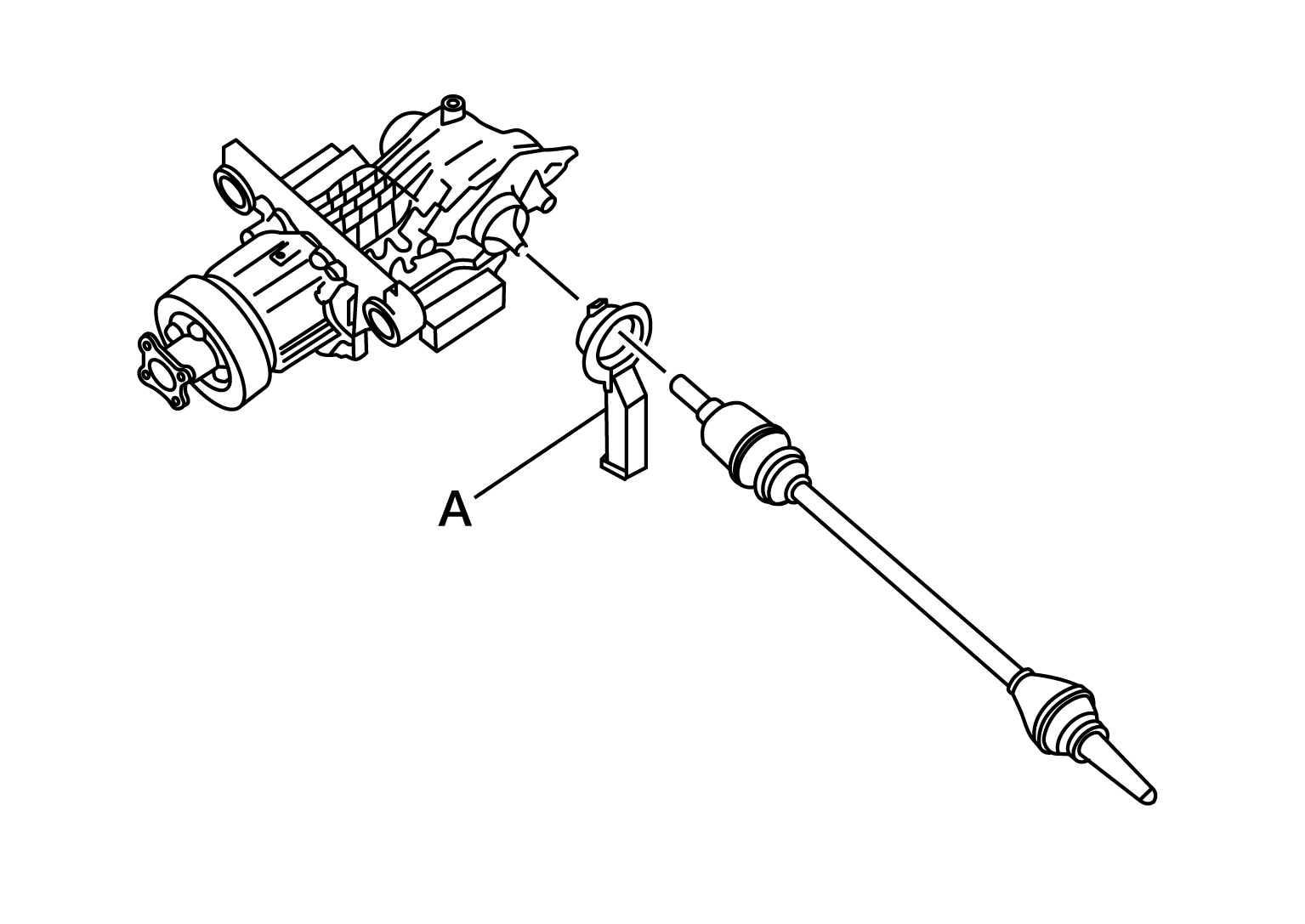

In order to prevent damage to the side oil seal, place Tool (A) onto oil seal, as shown, before inserting the drive shaft.

Courtesy of NISSAN NORTH AMERICA, INC.

Tool number

: KV38107900 (--)

WARNING: Ensure that circular clip is properly engaged, otherwise the joint subassembly could pull away from transaxle during vehicle operation resulting in loss of drive force and possible drive shaft damage, which may cause a crash and serious injury or damage the drive shaft.

To ensure the circular clip is properly engaged, grasp the housing (1) and pull back and forth in axial direction while listening for clicking sounds.

Courtesy of NISSAN NORTH AMERICA, INC.

Pull the joint sub-assembly in the axial direction away from transaxle assembly ( ). Confirm that the joint sub assembly cannot be pulled out.

Slide rear drive shaft into the slide joint and tap with a hammer to install securely.
Clean the mating surface of the wheel hub lock nut and the wheel hub and bearing.
Clean the mating surface of the drive shaft and the wheel hub and bearing.
Align the marks on the disc brake rotor and on the wheel hub and bearing.
