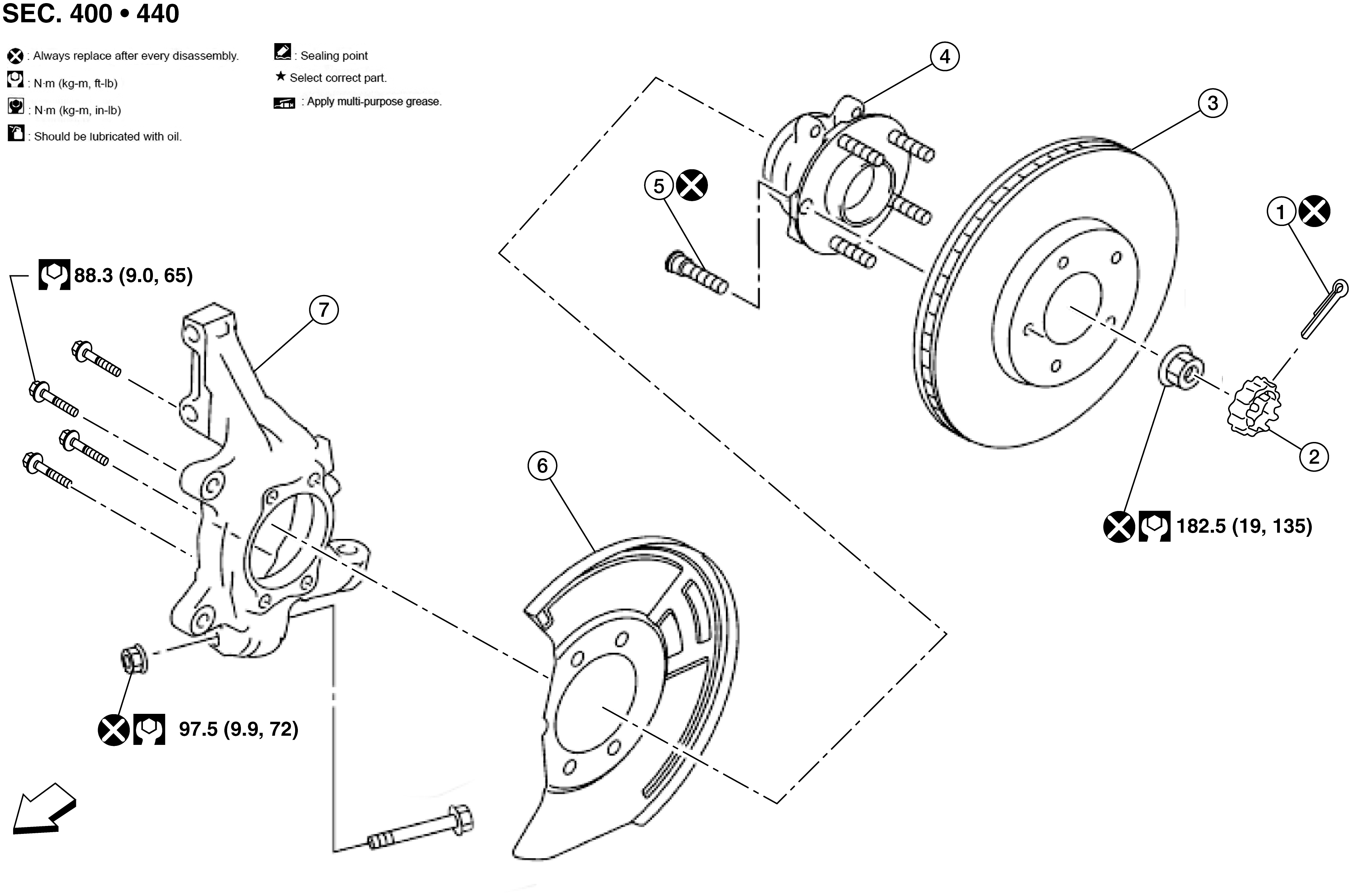

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Cotter pin
|
2.
|
Nut retainer
|
3.
|
Rotor
|
|
4.
|
Wheel hub and bearing assembly
|
5.
|
Wheel hub bolt
|
6.
|
Splash guard
|
|
7.
|
Steering knuckle
|
|
Front
|
