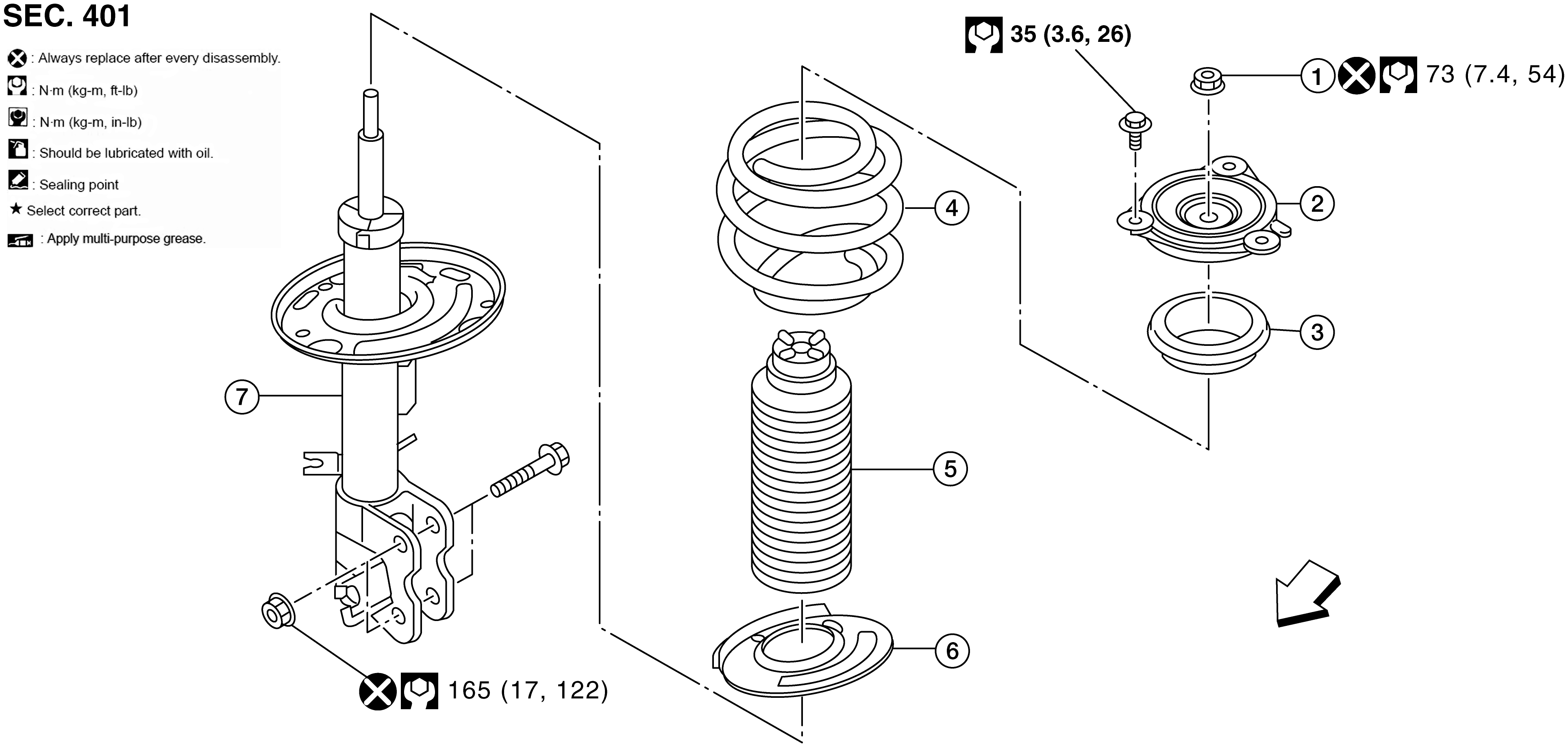

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Piston rod lock nut
|
2.
|
Strut mount insulator
|
3.
|
Strut mount bearing
|
|
4.
|
Coil spring
|
5.
|
Bound bumper
|
6.
|
Lower rubber seat
|
|
7.
|
Strut
|
|
Front
|
