Component Parts Location
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|

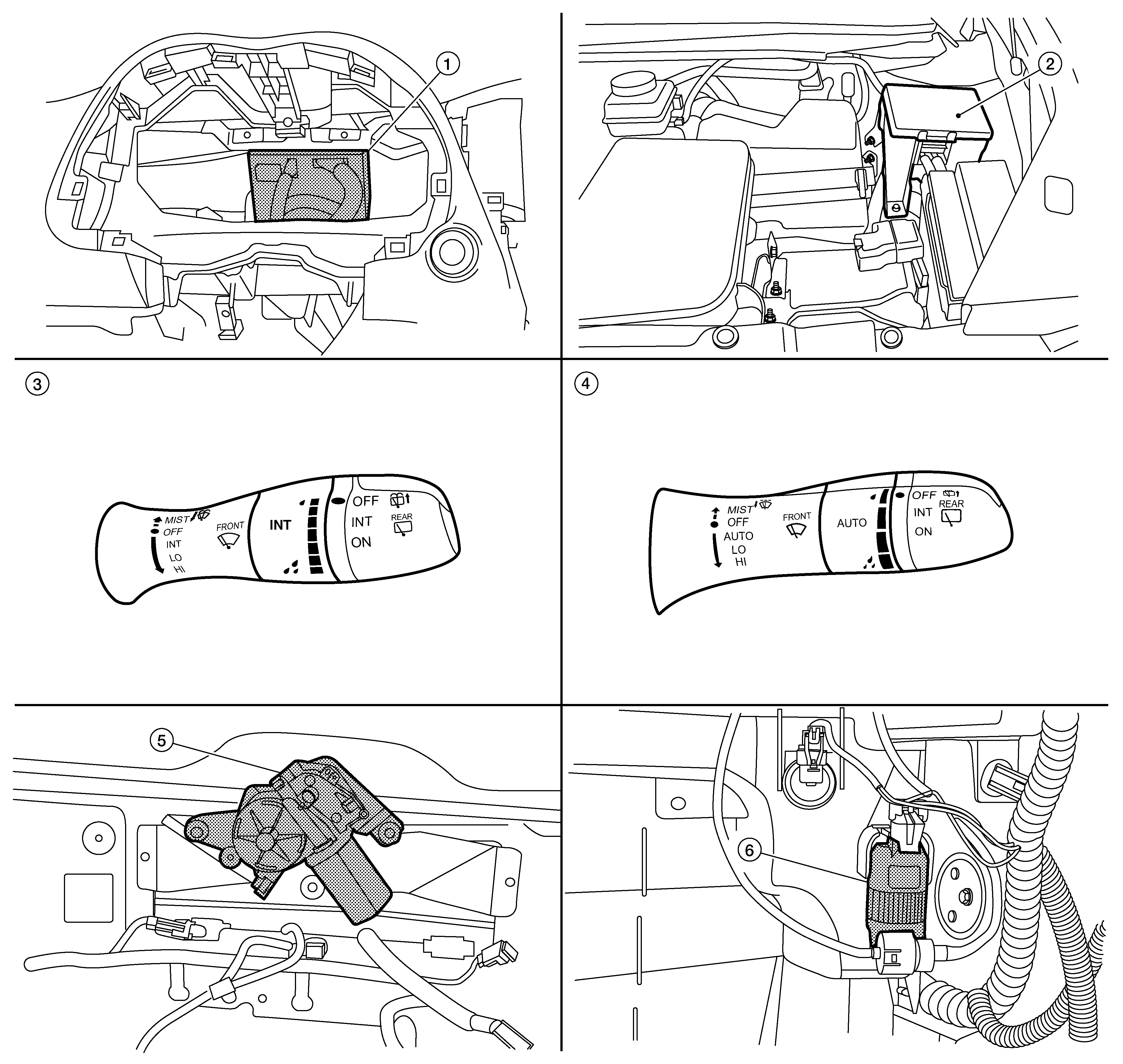

1.
|
BCM (with the combination meter removed)
|
2.
|
IPDM E/R
|
3.
|
Combination switch (without rain sensing wipers)
|
|
4.
|
Combination switch (with rain sensing wipers)
|
5.
|
Rear wiper motor (with rear hatch cover removed and motor unplugged)
|
6.
|
Front and rear washer motor (with the front bumper removed)
|
