Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the front wiper arm and blade assembly away from the windshield glass.

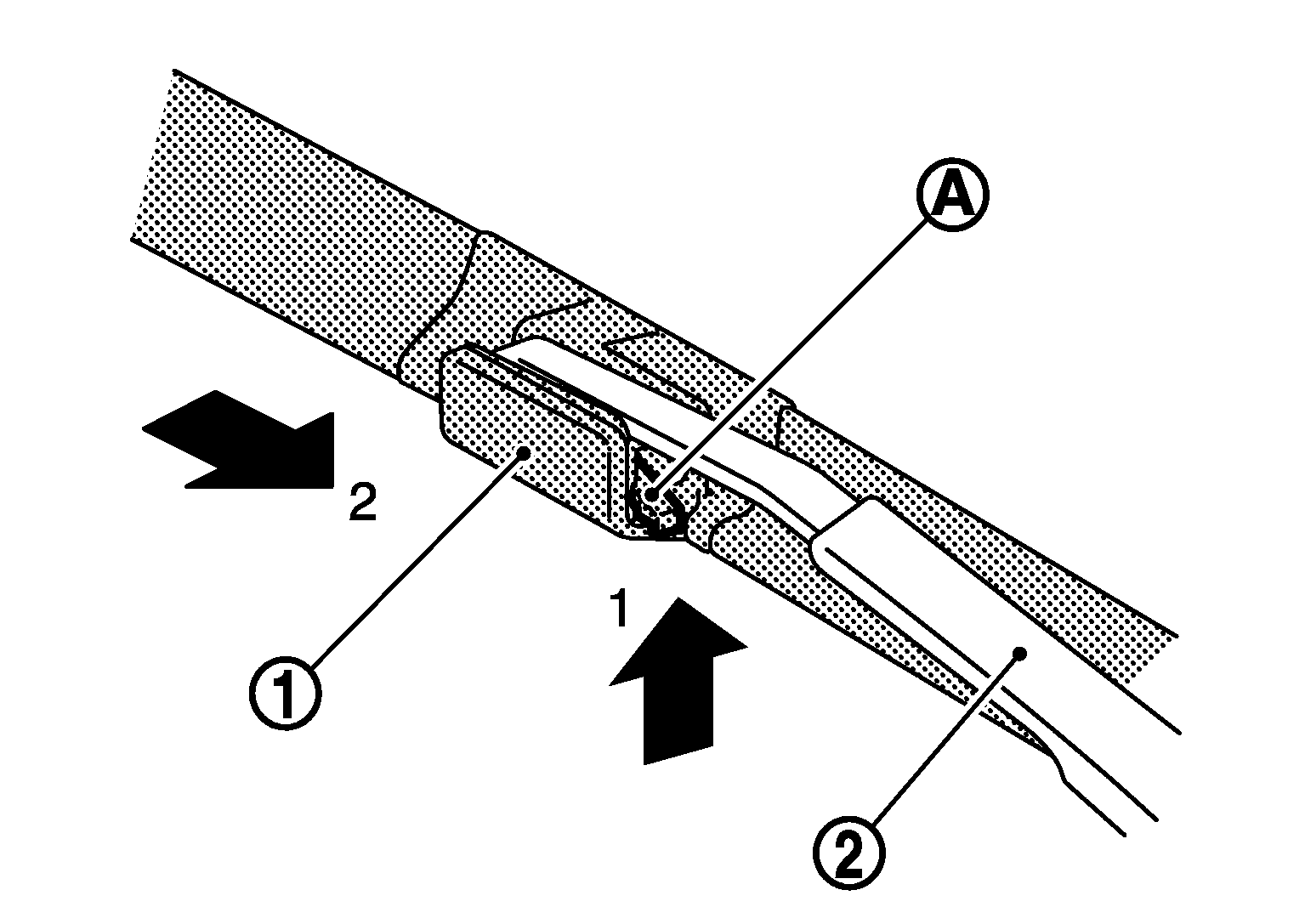

  2. Push the release tab (A) of the front wiper blade (1), then move the front wiper blade down the front wiper arm (2) to remove.
    GNSJMLIA1044Z-044Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to drop the wiper blade onto the windshield glass.
