Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the shift selector to the neutral position, and then release the parking brake.
  2. Put matching marks onto propeller shaft flange yokes, final drive torsional damper, and transfer companion flange.
    GNSALDIA0282Z-282Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For matching marks, use paint. Do not damage propeller shaft flange yokes, final drive torsional damper or transfer companion flange.
  3. Remove front heat insulator.
  4. Loosen nuts of center bearing mounting brackets (upper/lower).

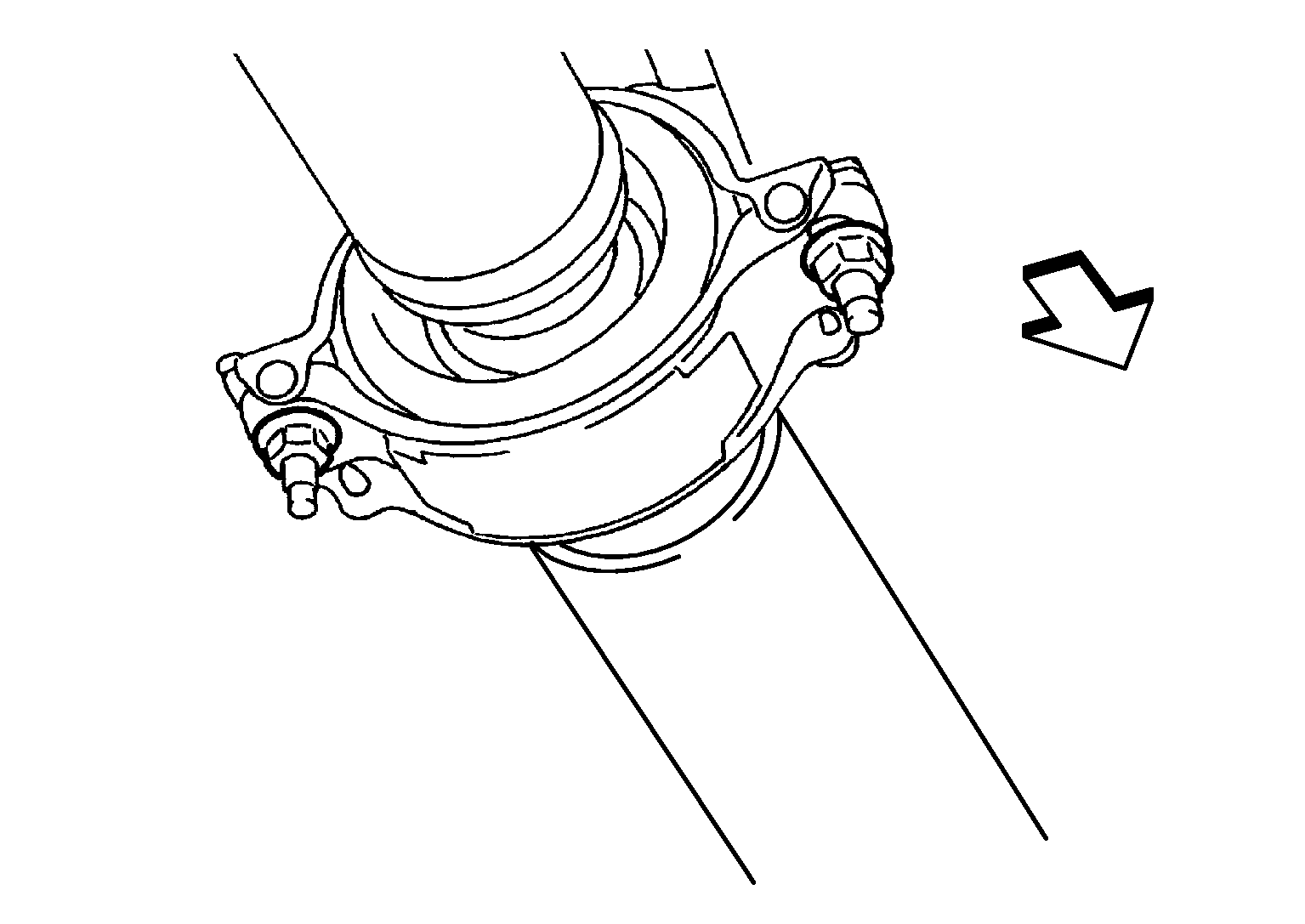

    GNSJSDIA0195Z-195Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
    CAUTION: Tighten nuts temporarily.
  5. Remove propeller shaft assembly nuts and bolts. Refer to Exploded View .
  6. Remove center bearing mounting bracket nuts.
  7. Remove propeller shaft assembly.
    CAUTION: If constant velocity joint was bent during propeller shaft assembly removal, installation, or transportation, its boot may be damaged. Wrap boot with shop cloth or rubber to protect boot from damage.
  8. Remove clips in center bearing mounting bracket (upper/lower).
  9. Perform inspection after removal. Refer to Inspection .
