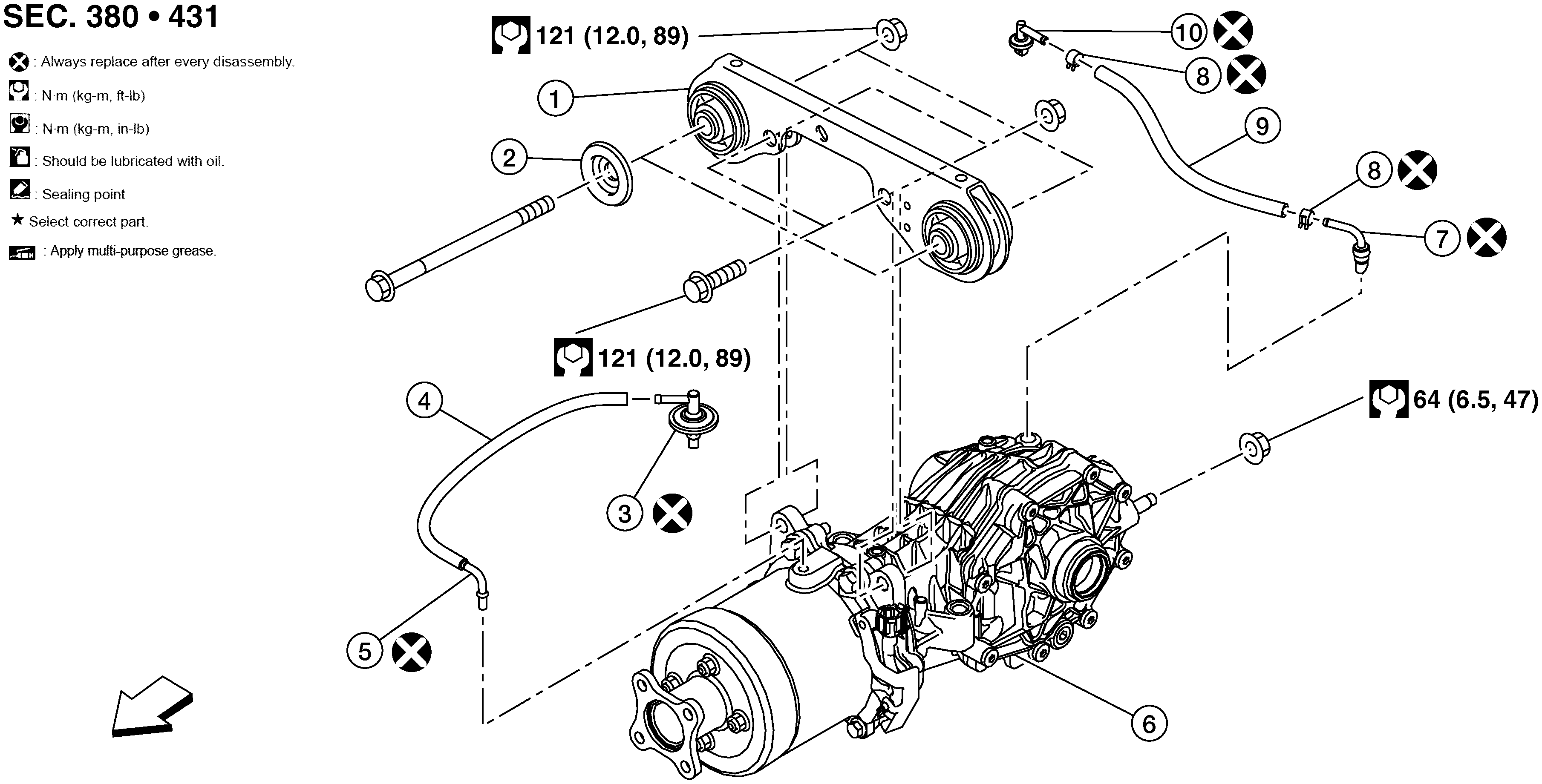

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Final drive mounting bracket
|
2.
|
Washer
|
3.
|
Breather
|
|
4.
|
Breather hose
|
5.
|
Breather tube
|
6.
|
Final drive assembly
|
|
7.
|
Breather tube
|
8.
|
Hose clamp
|
9.
|
Breather hose
|
|
10.
|
Clip
|
11.
|
Breather
|
|
: Front
|
|
: Always replace after every disassembly.
|
|
: N.m (kg-m, ft-lb)
|
