Unit Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove torsional damper mounting nut, using a flange wrench (1) (commercial service tool).
    GNSJSDIA3056Z-056Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove torsional damper.
  3. Remove harness bracket.
  4. Remove electric controlled coupling.
  5. Remove wave washer.

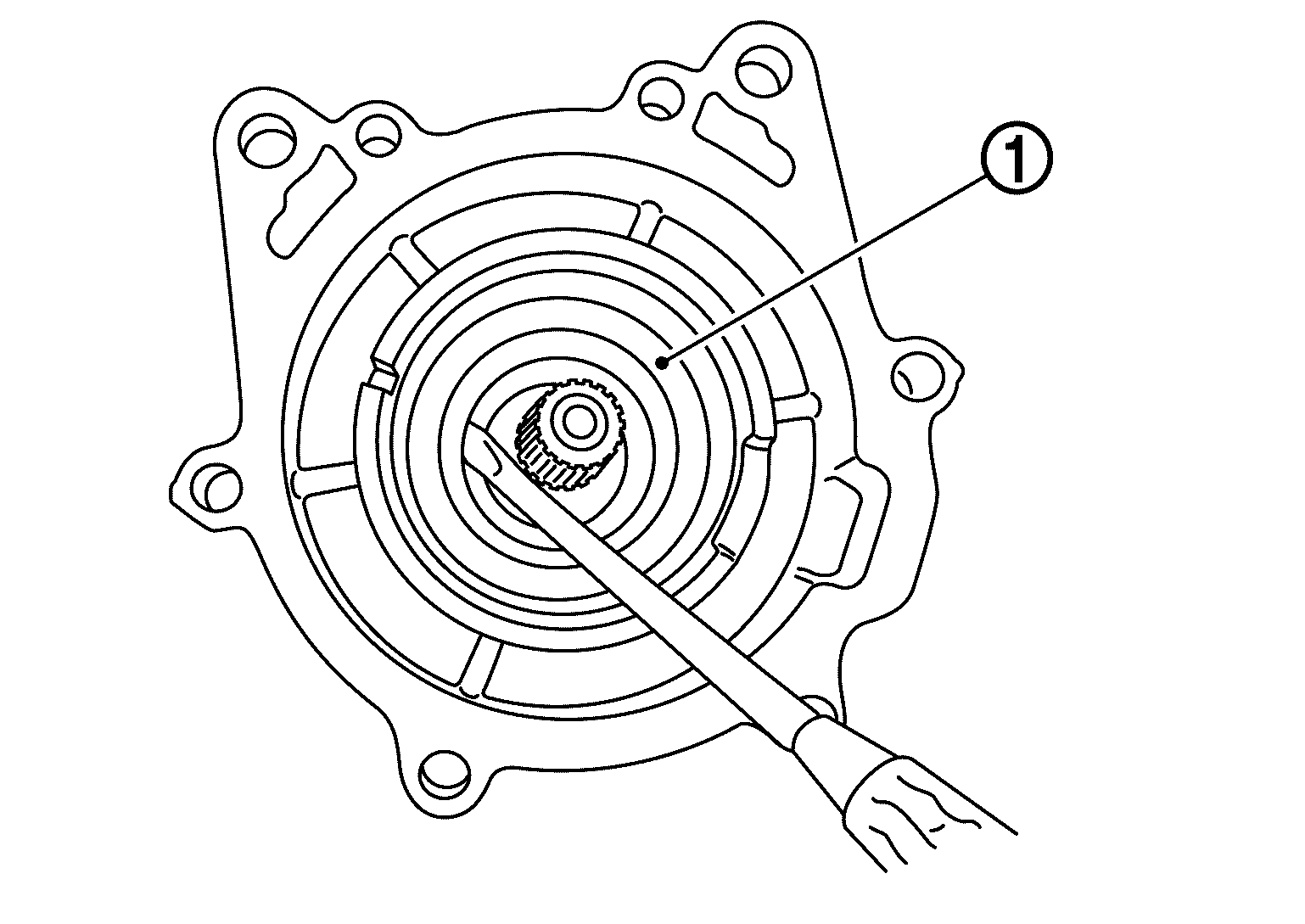

  6. Remove front oil seal (1) from final drive assembly, using a oil seal remover.
    GNSJSDIA3057Z-057Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage final drive assembly.
  7. Remove drain plug and filler plug, if necessary.

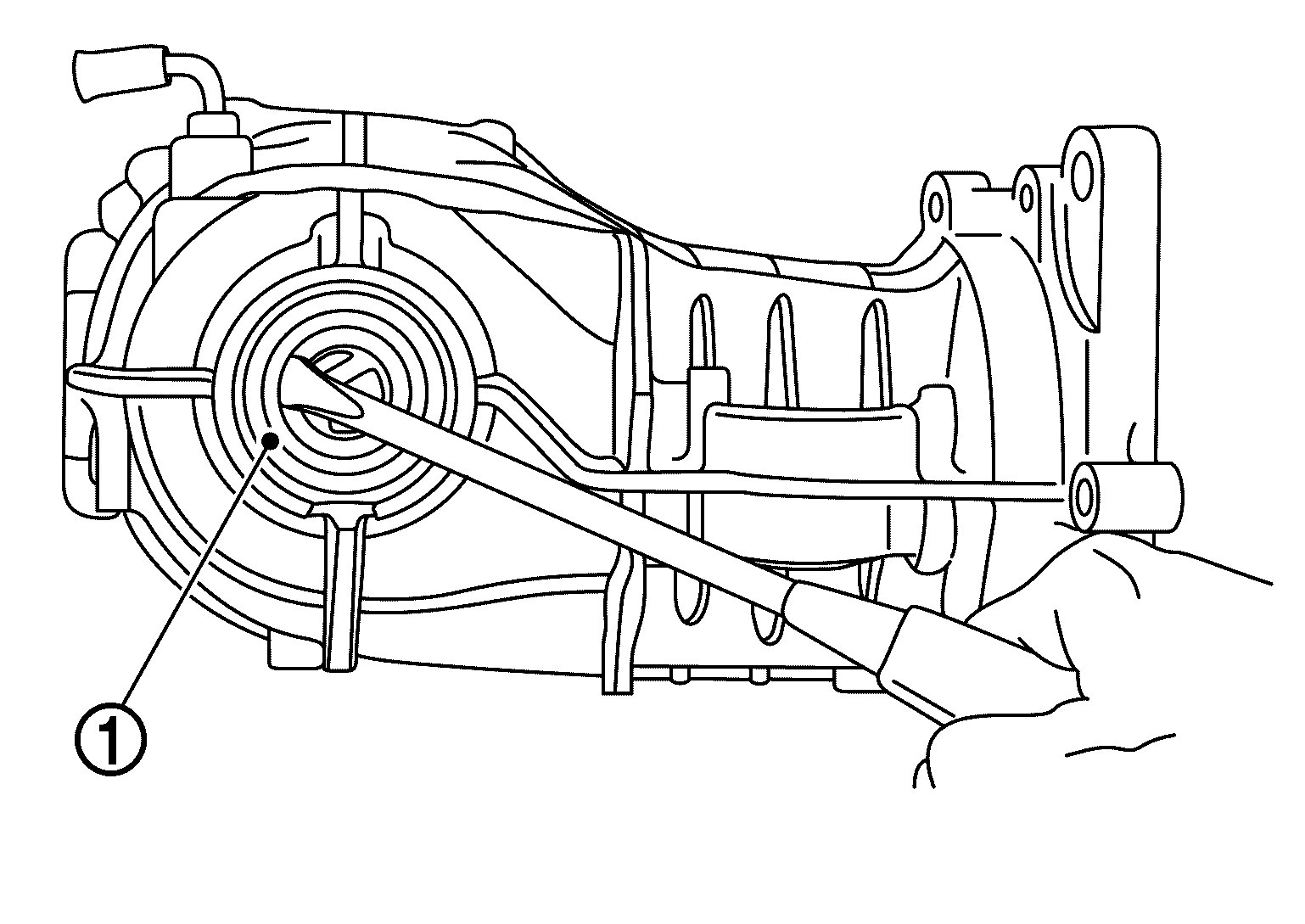

  8. Remove side oil seal (1), using a oil seal remover.
    GNSJSDIA3064Z-064Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage final drive assembly and side cover.
  9. Remove stud bolt from side cover, if necessary.
