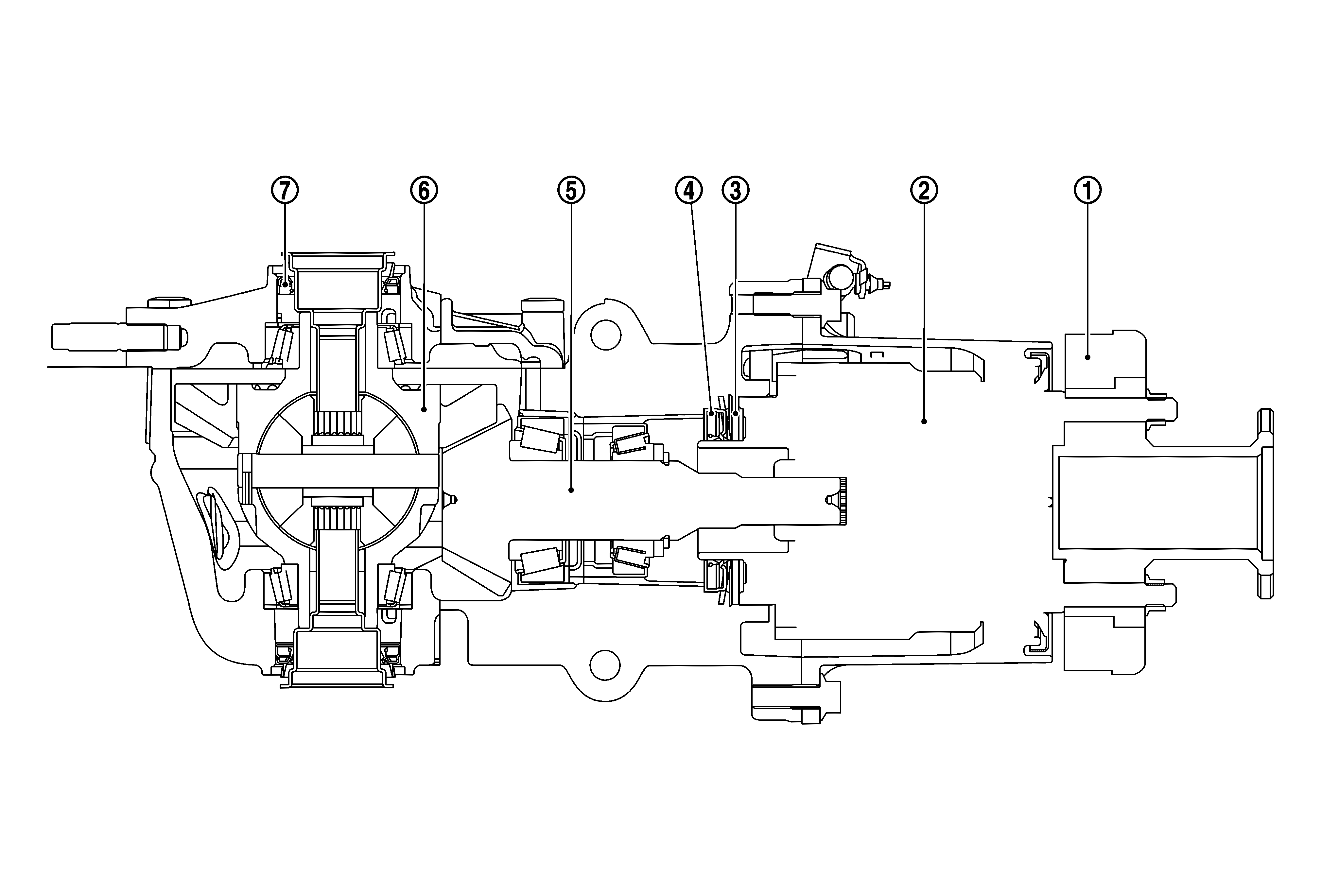

Sectional View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Torsional damper
|
2.
|
Electric controlled coupling
|
3.
|
Wave washer
|
|
4.
|
Front oil seal
|
5.
|
Drive pinion
|
6.
|
Differential case
|
|
7.
|
Side oil seal
|
