Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

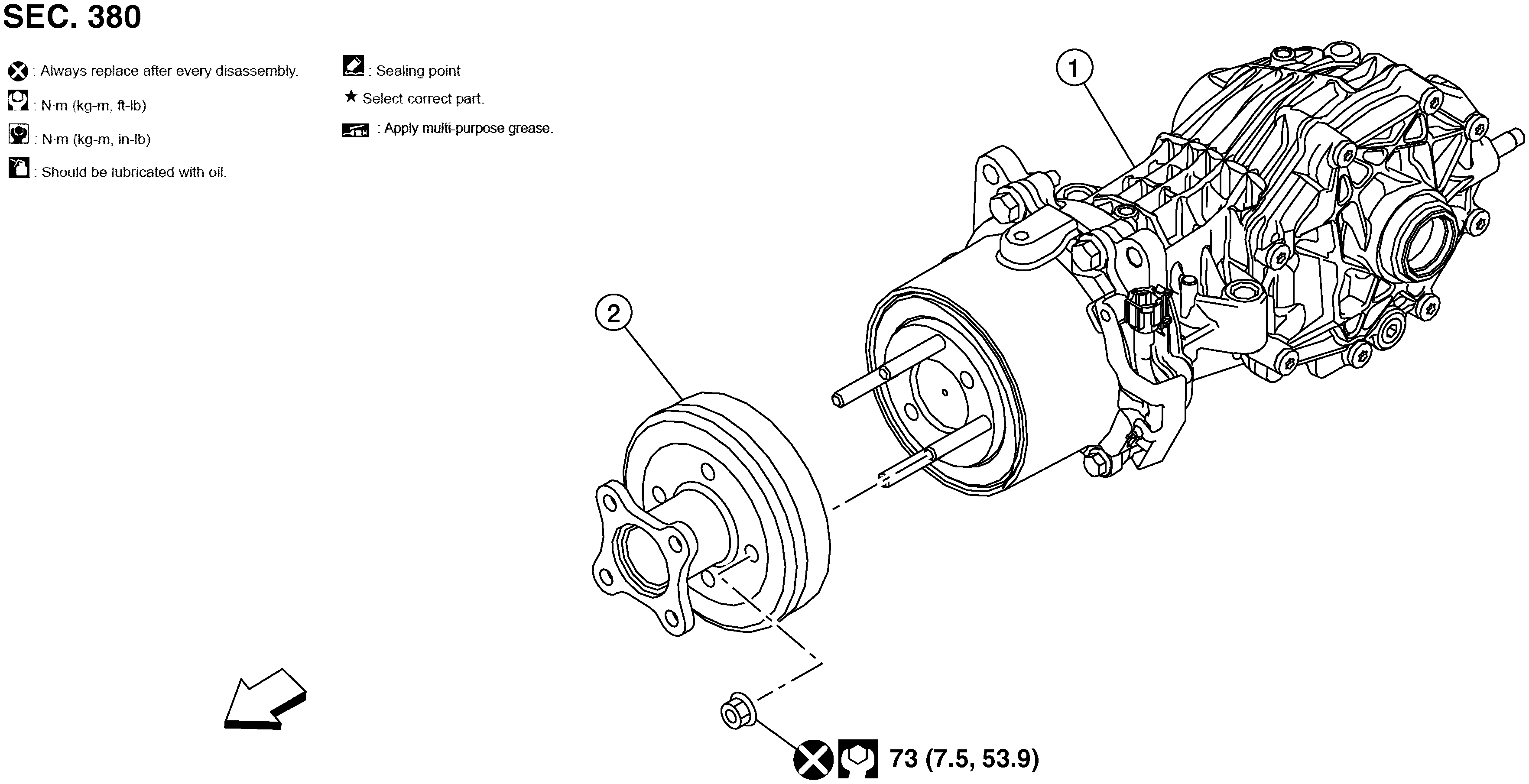

Fig 1: Torsional Damper Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Final drive assembly

Torsional damper

: Vehicle front
: Always replace after every disassembly.
: N.m (kg-m, ft-lb)
