Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install side oil seal (cover side) until it becomes flush with the carrier end, using Tool (A).

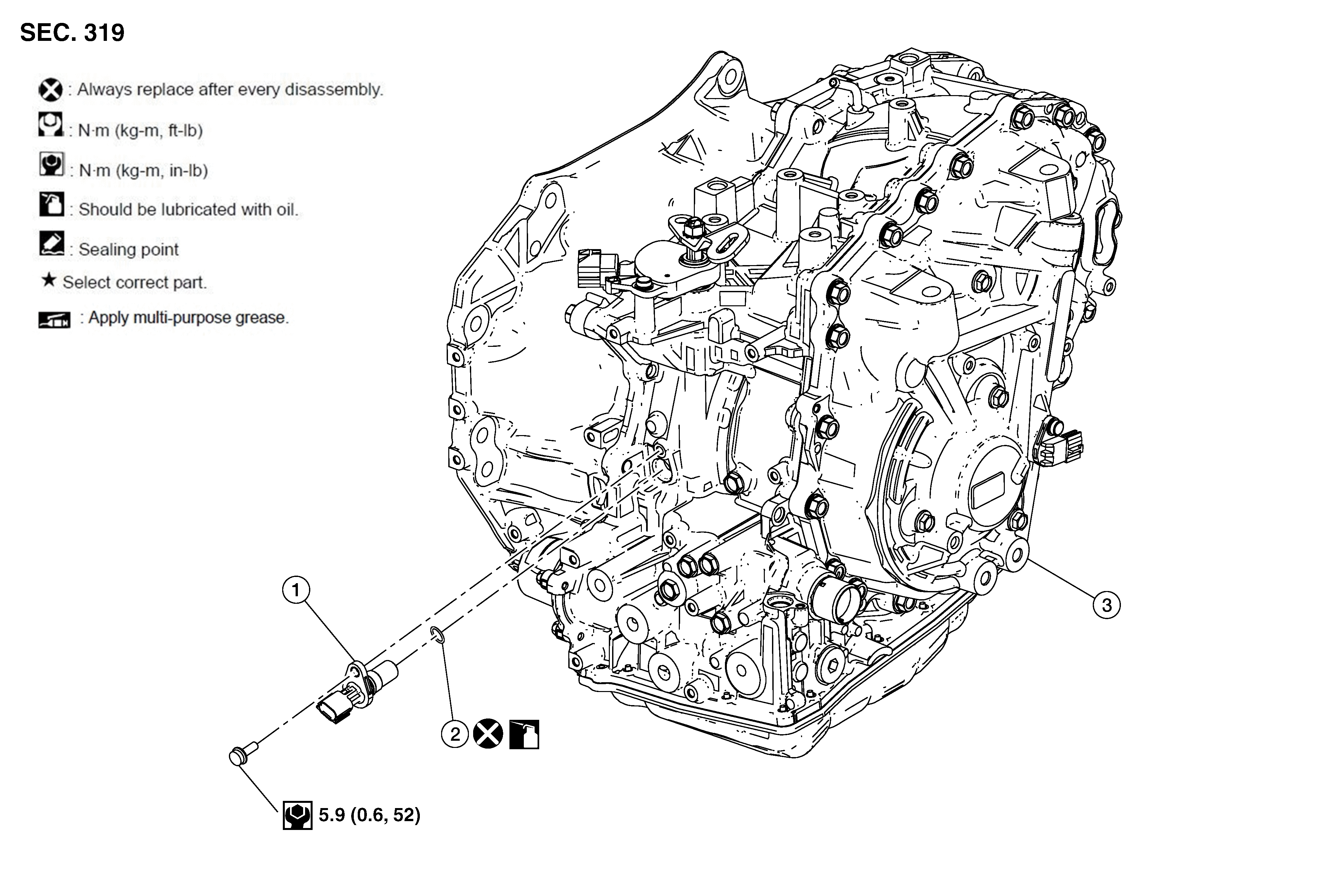

    Fig 1: Side Oil Seal Components With Torque Specification
    GNSALDIA0308Z-308Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number (A)

    : KV40105740 (--)
    CAUTION:
    • Do not reuse side oil seal.
    • When installing, do not incline side oil seals.
    • Apply rear differential gear oil onto side oil seal lip.

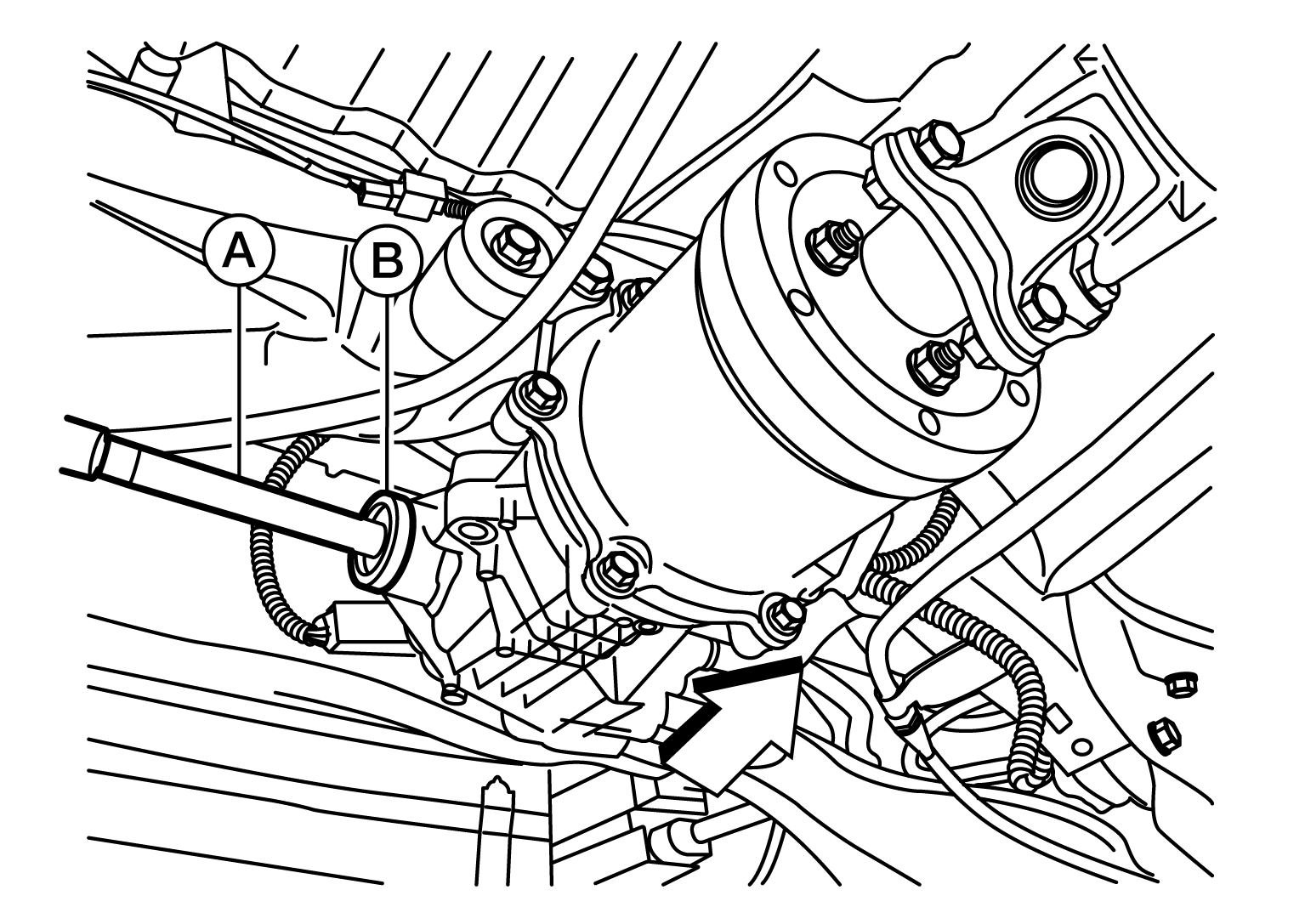

  2. Install side oil seal (carrier side) until it becomes flush with the carrier end, using Tool (A) and Tool (B).
    GNSALDIA0309Z-309Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number (A)

    : ST35325000 (--)

    Tool number (B)

    : KV31103000 (J-38982)
    CAUTION:
    • Do not reuse side oil seal.
    • When installing, do not incline side oil seals.
    • Apply rear differential gear oil onto side oil seal lip.
  3. Install rear drive shaft (LH) or (RH) as necessary. Refer to Removal and Installation .
  4. Check rear differential gear oil level and check for rear differential gear oil leaks. Refer to Inspection .
