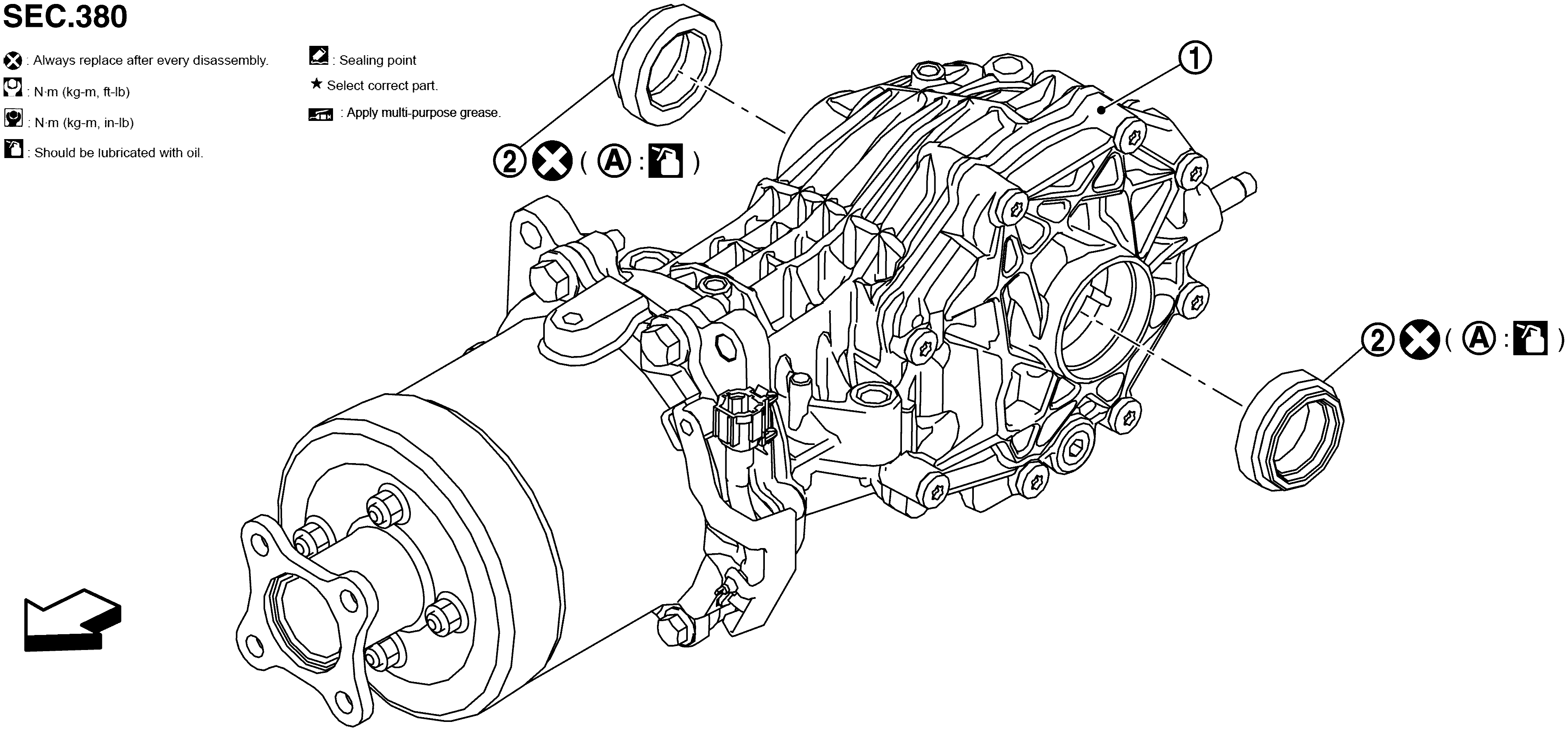

Exploded View
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Final drive assembly
|
2.
|
Side oil seal
|
|
A.
|
Oil seal lip
|
|
: Vehicle front
|
|
: Always replace after every disassembly.
|
|
: Apply gear oil.
|
